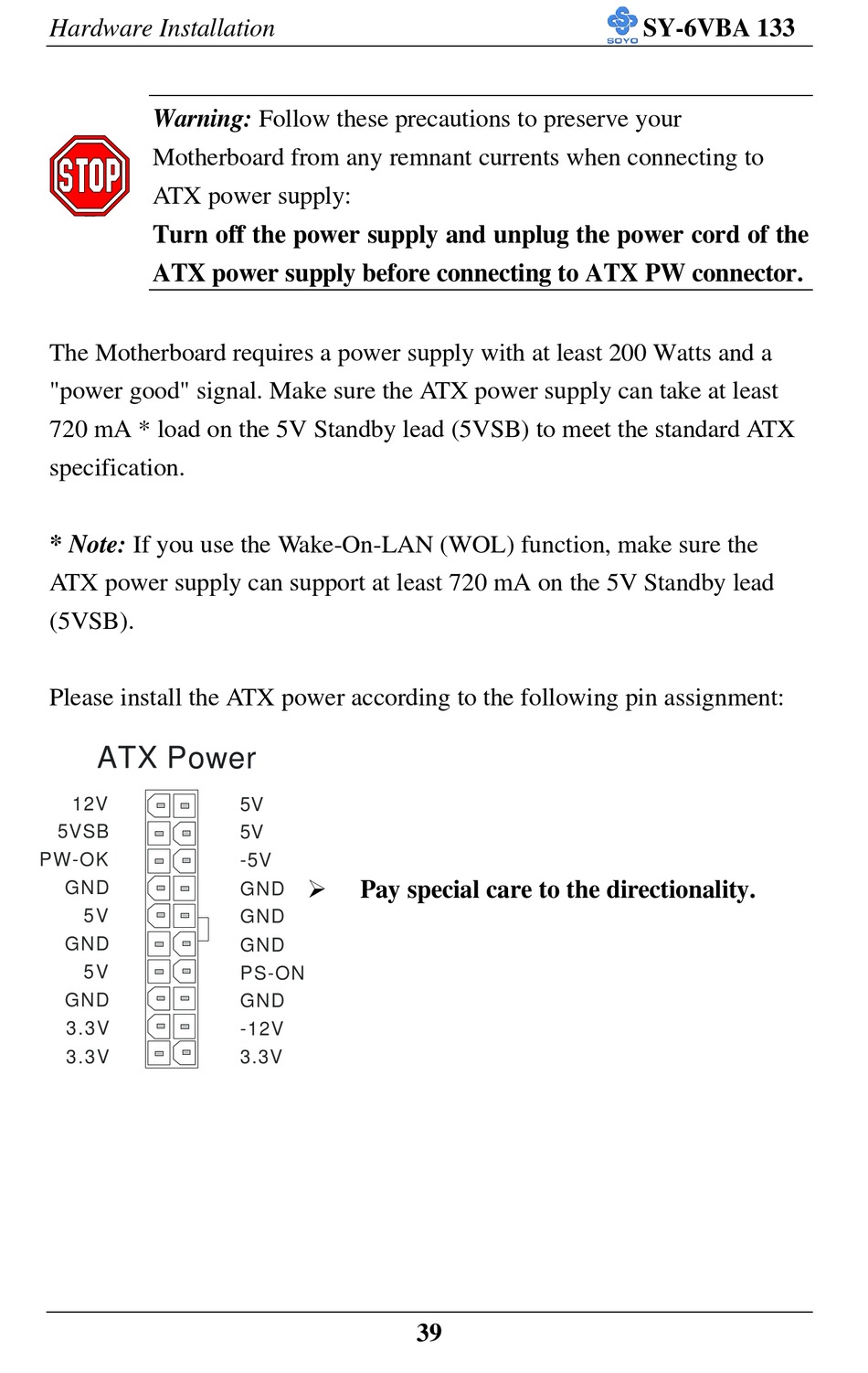

Hardware Installation
Warning: Follow these precautions to preserve your
Motherboard from any remnant currents when connecting to
ATX power supply:
Turn off the power supply and unplug the power cord of the
ATX power supply before connecting to ATX PW connector.
The Motherboard requires a power supply with at least 200 Watts and a
"power good" signal. Make sure the ATX power supply can take at least
720 mA * load on the 5V Standby lead (5VSB) to meet the standard ATX
specification.
* Note: If you use the Wake-On-LAN (WOL) function, make sure the
ATX power supply can support at least 720 mA on the 5V Standby lead
(5VSB).
Please install the ATX power according to the following pin assignment:
ATX Power
12V
5VSB
PW-OK
GND
5V
GND
5V
GND
3.3V
3.3V
5V
5V
-5V
Ø
Pay special care to the directionality.
GND
GND
GND
PS-ON
GND
-12V
3.3V
