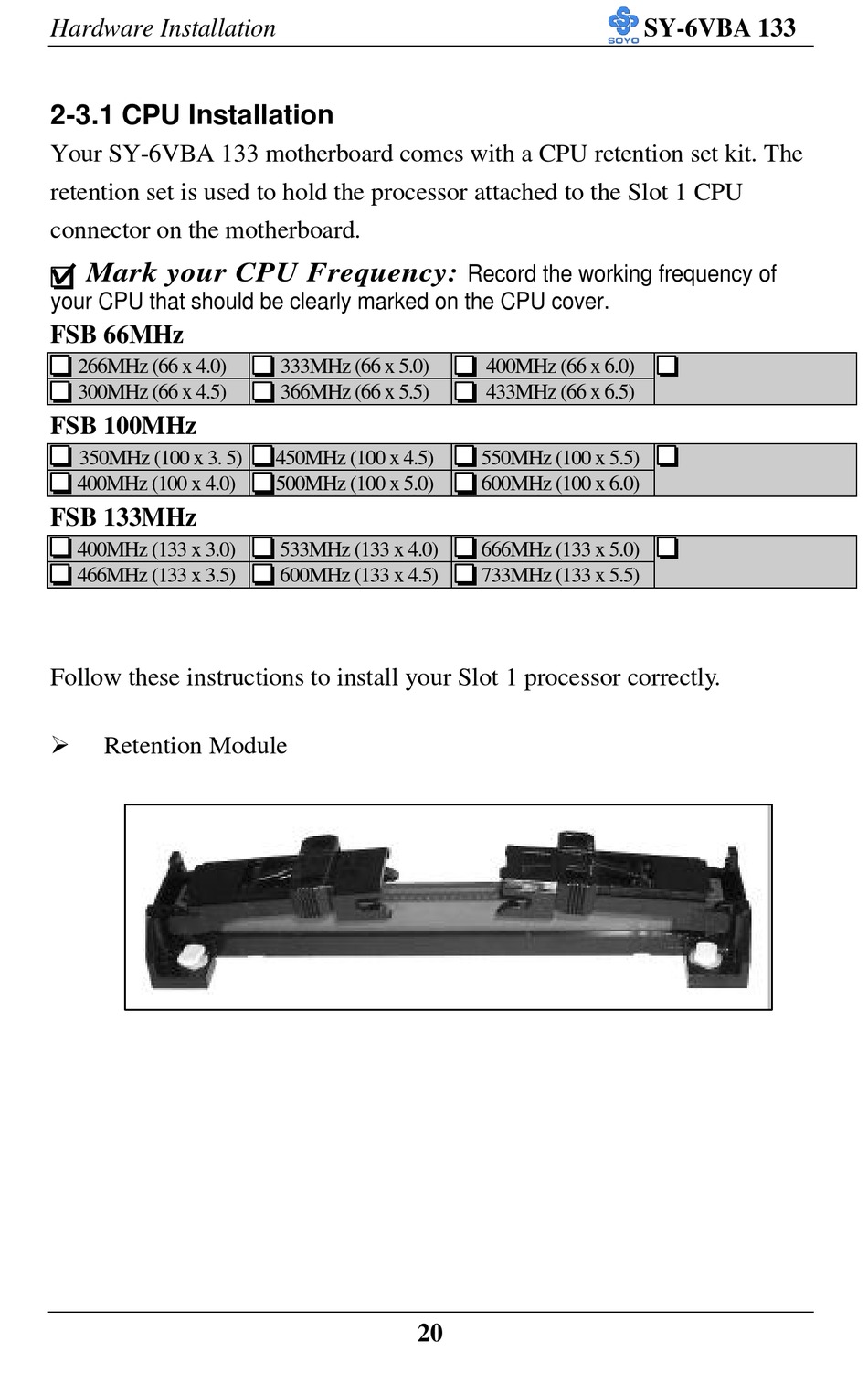

Hardware Installation
2-3.1 CPU Installation
Your SY-6VBA 133 motherboard comes with a CPU retention set kit. The
retention set is used to hold the processor attached to the Slot 1 CPU
connector on the motherboard.
Mark your CPU Frequency:
your CPU that should be clearly marked on the CPU cover.
FSB 66MHz
266MHz (66 x 4.0)
300MHz (66 x 4.5)
FSB 100MHz
350MHz (100 x 3. 5)
400MHz (100 x 4.0)
FSB 133MHz
400MHz (133 x 3.0)
466MHz (133 x 3.5)
Follow these instructions to install your Slot 1 processor correctly.
Ø
Retention Module
333MHz (66 x 5.0)
366MHz (66 x 5.5)
450MHz (100 x 4.5)
500MHz (100 x 5.0)
533MHz (133 x 4.0)
600MHz (133 x 4.5)
20
Record the working frequency of
400MHz (66 x 6.0)
433MHz (66 x 6.5)
550MHz (100 x 5.5)
600MHz (100 x 6.0)
666MHz (133 x 5.0)
733MHz (133 x 5.5)
SY-6VBA 133
