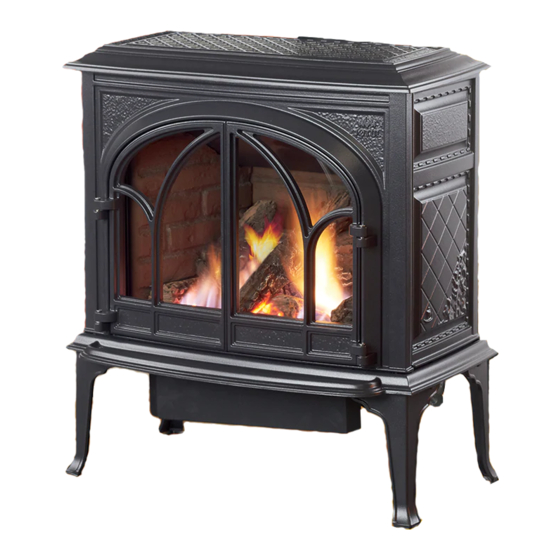

Direct vent gas stove

Advertisement

WARNING: If the information in
these instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your build-
ing.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instruction.
• If you cannot reach your gas sup-
plier, call the fire department.
– Installation and service must be
performed by a qualfied installer,
service agency or the gas supplier.
– A carbon monoxide (CO) detector
shall be installed in the same room as
the appliance.
Installation and

Operation Instructions

AVERTISSEMENT: Assurez-vous de
bien suivreles instructions données
dans cette notice pour réduire
auninimum le risque d'incendie ou
d'explosion ou pour éviter tout
dommage matériel, toute blessure
ou la mort.
– Ne pas entreposer ni utiliser d'essence ni
d'autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
– QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
• Ne pas tenter d'allumer l'appareil.
• Ne touchez à aucum interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment où vous
trouvez.
• Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
• Si vou ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
– L'installatione l'entretien doivent être
assurés par un installateur ou un service
d'entretien qualifié ou par le fournisseur
de gaz.
1

Advertisement

Table of Contents
loading

Summary of Contents for Jøtul GF 400 BV Sebago

  • Page 1: Operation Instructions

    Installation and Operation Instructions AVERTISSEMENT: Assurez-vous de WARNING: If the information in bien suivreles instructions données these instructions is not followed dans cette notice pour réduire exactly, a fire or explosion may auninimum le risque d’incendie ou result causing property damage, d’explosion ou pour éviter tout personal injury or death.
  • Page 2 Record the following information to help your dealer determine what you will need for parts and service. Jøtul GF 400 BV Sebago MODEL NAME: __________________________ SERIAL NUMBER: ________________________ DATE OF PURCHASE: _____________________ PURCHASED FROM: _____________________ NAME OF INSTALLER: ____________________ TYPE OF FUEL: __________________________...
  • Page 3: Table Of Contents

    Table of Contents Jøtul GF 400 BV Service Tools ..........4 Sebago Specifications ........... 4 Gas Heater General Information ....... 5 Safety Information ......... 6 Manufactured and Distributed by: Installation Requirements Jøtul AS Location ..........6 Fredrikstad, Norway Hearth Protection ....... 6 Jøtul North America Gorham, Maine U.S.A.
  • Page 4: Service Tools

    Jøtul GF 400 BV Sebago Specifications This appliance is an atmospherically-vented gas fireplace heater designed only for vertical venting THIS FIREPLACE IS SHIPPED FROM THE FACTORY FOR directly to the outside of the house, using listed, Type USE WITH NATURAL GAS ONLY. FOR USE WITH B-vent pipe.
  • Page 5: General Information

    Consult the local or national installation code(s) to General Information assure that adequate combustion and ventilation air is available. Installer l’appareil selon les codes ou reglements locaux, THIS HEATER MUST BE INSTALLED AND MAINTAINED ou, en l’absence de tels reglements, selon les Codes BY A QUALIFIED SERVICE AGENCY.
  • Page 6: Safety Information

    Safety Information Location During normal operation, the GF 400 BV gas stove will In selecting a location for the stove, consider the reach high surface temperatures. Therefore: following points: 1) Heat distribution 2) Vent termination requirements Due to the high operating temperatures, this appliance 3) Gas supply line routing should be located out of traffic areas and away from 4) Traffic areas, furniture, draperies, etc.
  • Page 7: Clearances

    Stove and Vent Clearance Requirements Minimum Clearances from the Stove to Combustibles See figs. 2-3. 3” (51 mm) Rear: 3” (76 mm) - measured from Draft Hood To Rear Wall Ceiling: 32 1/4” (819 mm) - measured from stove top Corner: 3”...
  • Page 8 Vent Requirements The Jøtul GF 400 BV Sebago is specifically designed to operate using 4” Type B vent pipe components or a Listed Flexible gas liner. • All venting components must be installed in accordance with the terms of their listing and manufacturer’s instructions.
  • Page 9 Venting through a Masonry or Prefabricated Manufactured Chimney • When 6” diameter decorative pipe is installed to cover the venting any Listed Flexible Gas liner must be connected directly to the stove’s draft hood. Listed Storm collar termination • Use of single wall connector pipe as a vent is prohib- required Top sealing cap required...
  • Page 10: Vent Requirements

    Approved B-Vent Configurations Listed B-Vent Listed B-Vent Termination Cap Termination required. NOTE: required. Installation at Maximum Maximum altitude greater total horizontal chimney than 2000’ anywhere in NOTE: height off requires venting Installation at Draft Hood is minimum 12 ft. configuration 35 feet.
  • Page 11: Fuel Conversion

    Conversion Kit Contents: Fuel Conversion • 1, regulator tower labeled for propane • 3, regulator tower screws • 1, burner orifice (3.20 mm for NG, #49 for LPG) The Jøtul GF 400 BV gas stove is shipped from the factory •...
  • Page 12 Lift out the Burner Plate: NOTE: There are no screws securing the Burner to the floor of the firebox. Pull the Air Shutter forward and lift the burner together with shutter up and out of the stove as a unit. See fig. 13. Air Shutter Change the Burner Orifice.
  • Page 13: Gas Supply Connection

    Apply small conversion label. Pilot Head Orifice Rubber Retainer Clip Gasket Regulator Valve Tower Pilot Base Figure 16. Pilot orifice removal and replacement. Figure 17. Regulator assembly. 15. Install the new regulator: Be sure the new gasket is Gas Supply Connection properly positioned and tighten screws securely.
  • Page 14: Gas Pressure

    3/8” NPT x 3/8” Flare Fitting 1/2” x 3/8” Flare Shut-off Valve 3/8” Flex Tubing 3/8”Nipple Figure 19. Pressure test points. 3/8” Union Gas Stub 3/8” Close Nipple 3/8” Shut-off Valve INLET GAS PRESSURES 1/2” x 3/8” Reducer (inches water column) Figure 18.
  • Page 15: Log Set Installation

    Log Set Installation Brick Kit Note: Install the optional Antique Brick Kit 155370 before installing the logset. See page 22 and the PN 220646 instructions provided with that kit. The GF 400 BV logset must be installed before operating the burner. The logset includes five log pieces, and a bag of ember stones packaged inside the firebox.
  • Page 16: Flame Adjustment

    Flame Appearance / Air Shutter Optional Wall Thermostat or Adjustment Remote Control This stove is shipped from the factory equipped to burn Use only a 750 millivolt DC two-wire circuit thermostat Natural gas. If the stove has been converted for use with with this appliance.
  • Page 17: Decorative Pipe

    The use of decorative pipe is optional. No decorative for the first time, it will take a few moments to clear pipe is included with the Jøtul GF 400 BV Sebago, the gas line of air. Once this purge is complete, the...
  • Page 18: Operation

    If a vacuum is used during any service on the stove, W W W W W AR ARN N N N N I I I I I NG: ALWAYS be sure the stove is cold and there are NO hot AI AI AI AI AIR SH R SH R SHU U U U U TT...
  • Page 19: Maintenance

    Maintenance REPLACE CRACKED OR BROKEN GLASS ONLY WITH JØTUL This stove and its venting system should be inspected CERAMIC GLASS REPLACEMENT KIT 155599. DO NOT USE ANY OTHER TYPE OF GLASS WITH THIS APPLIANCE. before use and at least annually by a qualified service technician.
  • Page 20: Optional Blower

    Optional Blower # 156000 Connect the gas supply line to the stove, before installing the Blower. Use a 90° Elbow off the control valve to create clearance required for the blower installation. 1. Unpack and check the contents of the blower kit. Contact your dealer if any damage is evident or parts are missing.
  • Page 21: Blower Operation

    Figure 35. Attach Blower to the Mounting Bracket with the wingscrew and connect wires to Snapstat and female control quickconnect. Snapstat Connectors Male Quickconnector to Female Quickconnector Wingscrew Blower Operation BLOWER The optional variable-speed blower will enhance heat circulation around the firebox and out into the room. The blower is controlled by a heat activated switch (snapstat) that will ONLY function when the control switch is in AUTO setting.
  • Page 22: Optional Antique Brick Kit

    Optional Antique Brick Panel Kit Right Panel Left Panel 220600 220601 #155375 Tools Required: Safety glasses and gloves Rear Panel 220599 1. Remove the Top Plate. Simply lift if up off of the stove body. It is not fastened. 2. Remove the Glass Frame. Disengage the two Figure 47.
  • Page 23: High Altitude Adjustment

    High Altitude Adjustment Air Shutter Wingnut Installations burning natural gas and located at altitudes Open Close from 2000 - 4500 ft. (610 M - 1370 M), require compensa- tion for the thinner air (less volume of air per cubic foot). Higher altitudes affect the atmospheric pressure and heat value of gaseous fuels.
  • Page 25: Replacement Parts List

    Jøtul GF 400 BV Sebago Parts List Brown Blue Matte Black Blue Black Ivory Jøtul Iron Jøtul Iron Majolica Majolica Paint Enamel Enamel Paint Enamel Cast Iron Parts Enamel Enamel 10. Left Side Plate 10391892 10421727 10421729 10391885 10421746 10421747 10421748 30.
  • Page 27: Lighting Instructions

    LIGHTING INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING. WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. A. A. A. A. A. This appliance has a pilot which must be lit by •...
  • Page 28 This appliance must be installed in conformance with local and national building regulations. Before beginning the installation, it is important that the these instructions be carefully read and under- stood. Jøtul maintains a policy of continual product development. Consequently, products may differ in specification, color or type of accessories from those illustrated or described in various publications.
