Waypoint Target

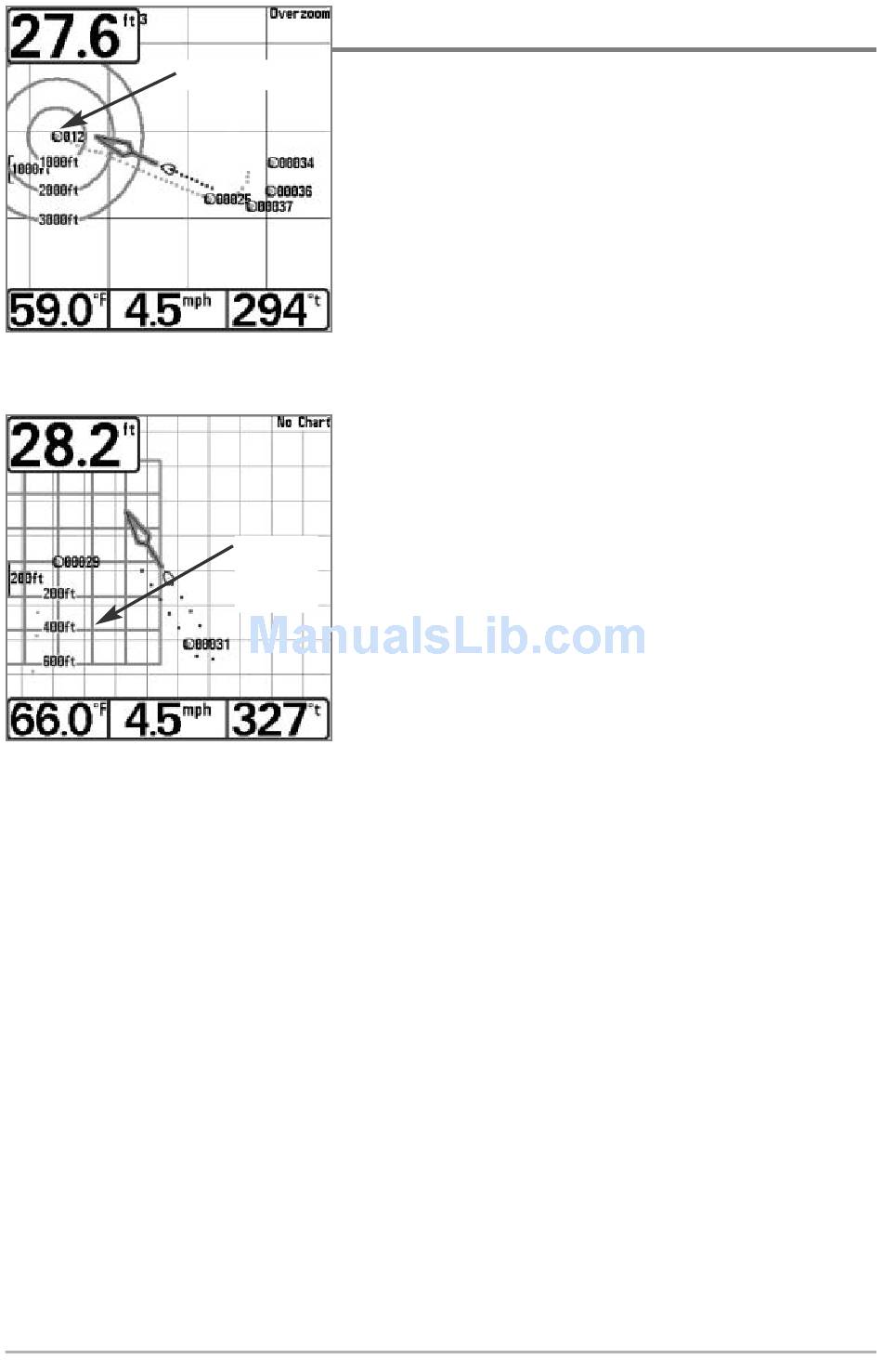

Chart View with Target
Chart View with Grid
NOTE: Only one waypoint can have either a target or a grid at one time. If you apply a target or a
grid to a new waypoint, the original waypoint will lose its target or grid.
NOTE: The spacing of the rings on the waypoint target and the spacing of the grid lines on the
trolling grid is the same as the length of the scale bar on the left edge of the display. Zooming in or
out will decrease or increase the spacing, respectively.

Add a Waypoint Target or Trolling Grid

Add or Remove a Waypoint Target: From the Waypoints
submenu, select Target and press the RIGHT Cursor key
to display a list of waypoints. Select the waypoint you
want to target. A target consisting of concentric circles
centered on the selected waypoint will appear on all of
the navigation views; the target shows various distance
ranges from the targeted waypoint. To remove the
target, choose Remove Target from the Navigation
X-Press™ menu.
Add or Remove a Trolling Grid: From the Waypoints
submenu, select Grid and press the RIGHT Cursor key to
display a list of waypoints. Select the waypoint to which
you want to add the grid. The trolling grid will appear on all
Waypoint
of the navigation views, and can be used as a guide when
Trolling
trolling around a waypoint. The grid can be rotated to any
Grid
desired heading using Grid Rotation from the Navigation
Main menu. To remove the trolling grid, choose Remove
Grid from the Navigation X-Press™ menu.
27
