Chart View - Humminbird 531427-1_D Operation Manual

Chart View

Chart View - This view shows cartography from the built-in Uni-Map™ or an optional MMC
map for the area surrounding your current position. The current track (also known as the
position history or breadcrumb trail) showing where the boat has been, along with saved
tracks, waypoints, and the current route (when navigating), are overlaid on the chart. You can
use the 4-WAY Cursor Control key to shift/pan the chart to another area. You can use the
ZOOM (+/-) keys to zoom in and out. You can use the INFO key to get information on the chart
objects near the cursor.
Depth
Map Scale
Speed Of Boat
Water Surface
Temperature
Depth
Map Scale
Latitude and
Longitude
Position of
Cursor
Distance to
the Cursor
and Bearing
to Cursor

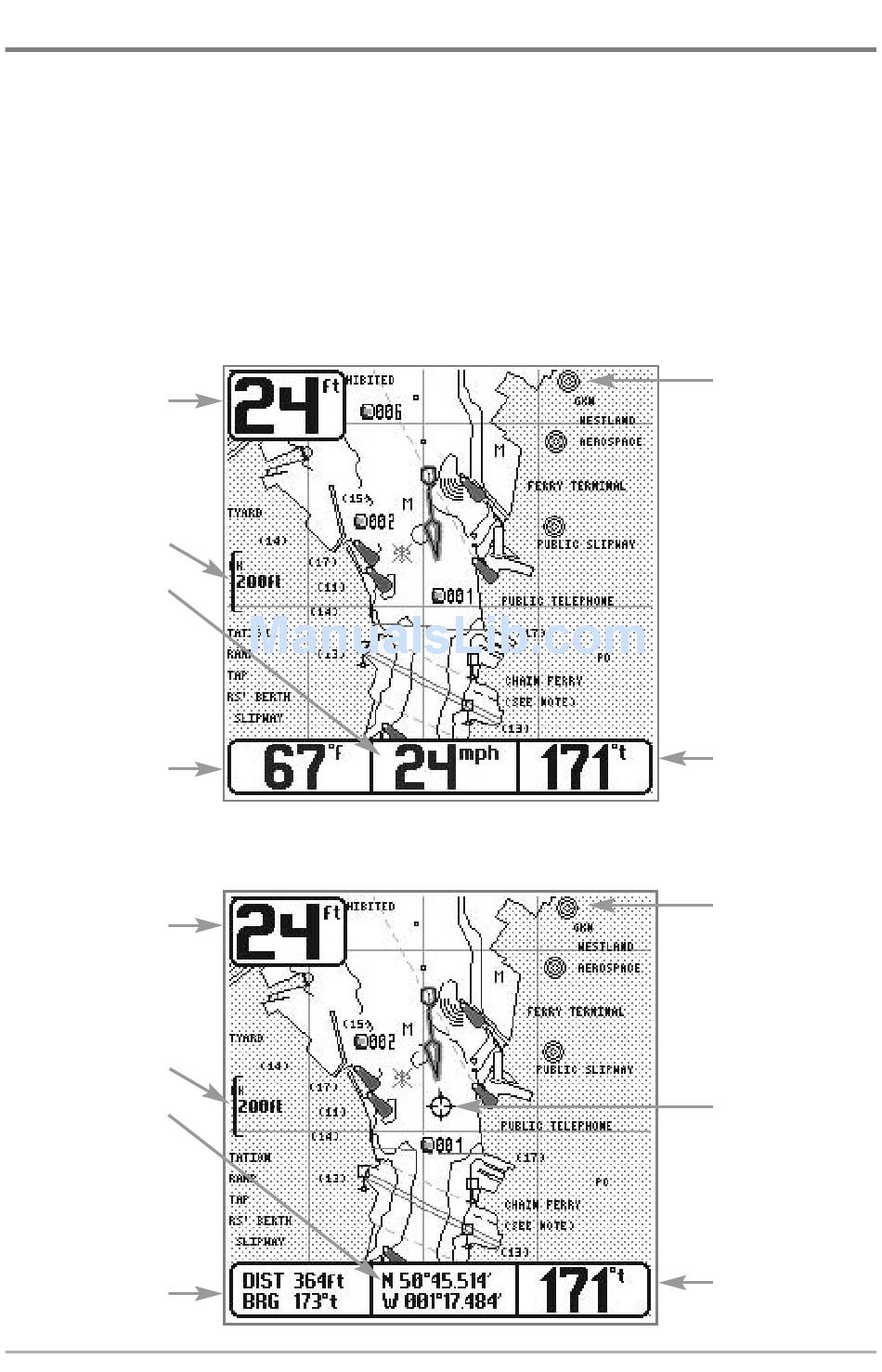

Chart View without Active Cursor
Chart View with Active Cursor
21
Cartography
Bearing of Boat
with Respect to
True North
Cartography
Active Cursor
Bearing of Boat
with Respect to
True North
