WideSide® View
WideSide® View is only available if you have connected a WideSide® transducer accessory
and when Transducer Select is set to WideSide® (see Sonar Menu Tab: Transducer Select). The
WideSide® transducer requires a separate purchase. The WideSide® View displays
information from the 455 kHz WideSide® transducer. Three views are available: Left, Right
and Both. The default view is Both. Information from both the left and right beams are
displayed simultaneously. The depth of the water beneath the boat is always displayed. A
bottom contour may be present while bank fishing or fishing river channels. When fishing in
the open water, a bottom contour will not be present, and only sonar returns from either
debris or fish will be displayed.

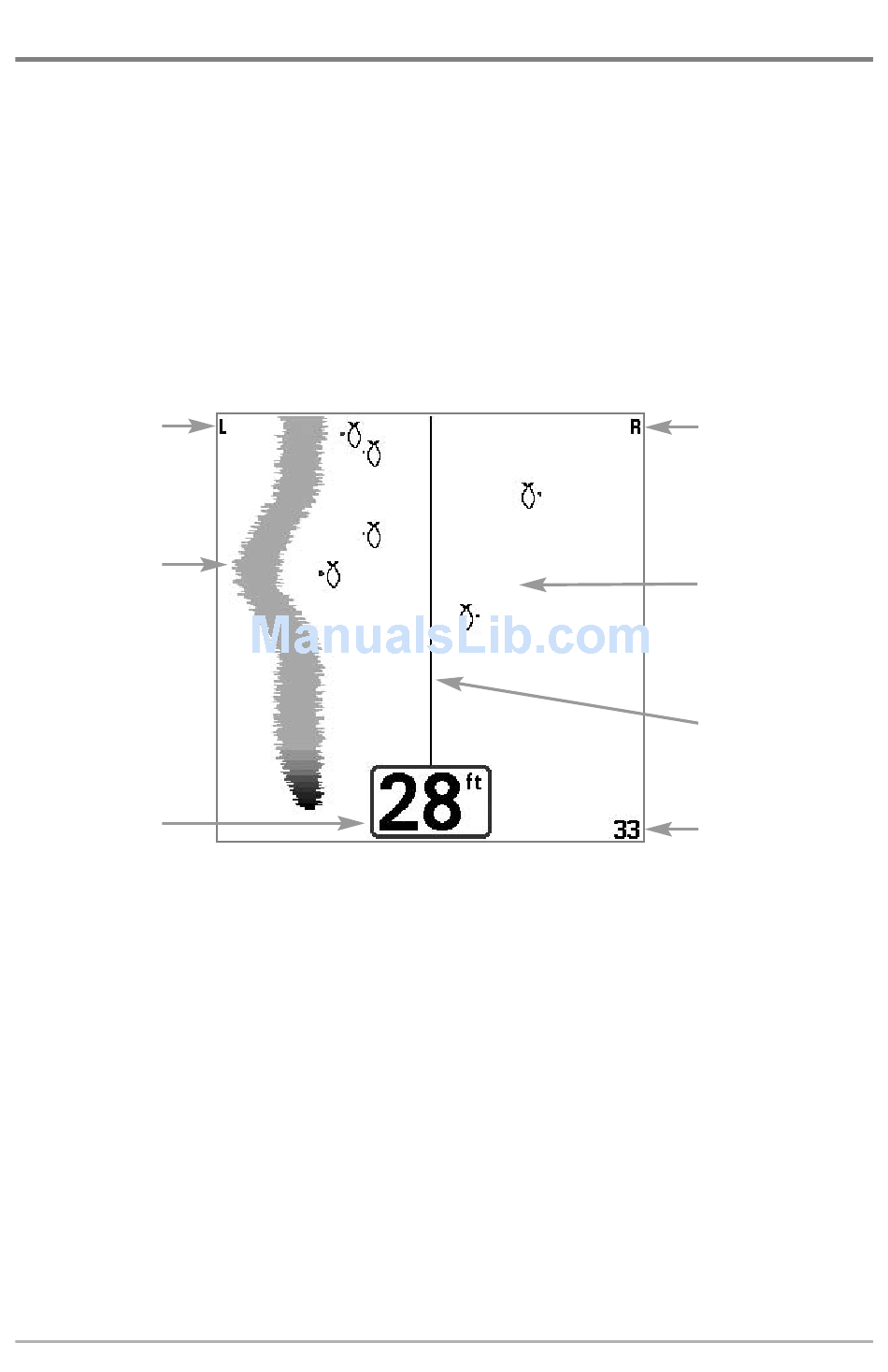

Left Side View
Bank Contour
Depth
(with optional-purchase WideSide® transducer)
WideSide View
19
Right Side View
Open Water
(no bottom
contour visible
on-screen)
Water Surface
Line
Side Beam
Depth Range
