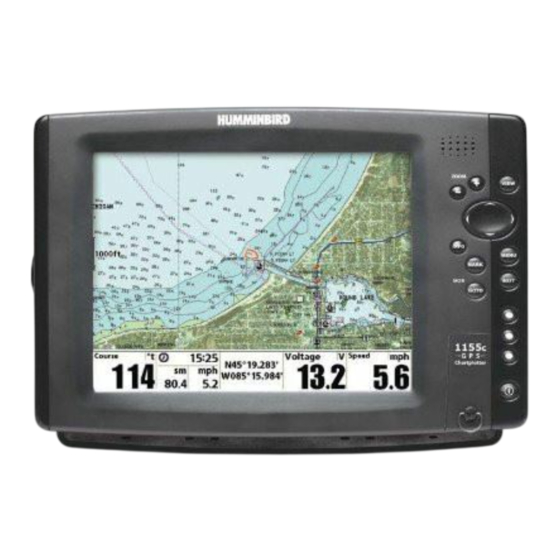

Humminbird 1155C Installation And Operation Manual

Humminbird computer monitor user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Humminbird 1155C

Summary of Contents for Humminbird 1155C

  • Page 3: Thank You

    Humminbird® is designed for trouble-free use in even the harshest marine environment. In the unlikely event that your Humminbird® does require repairs, we offer an exclusive Service Policy - free of charge during the first year after purchase, and available at a reasonable rate after the one-year period. For complete details, see the Warranty section in this manual.

  • Page 4: Table Of Contents

    Table of Contents 1100 Series™ Introduction How GPS and Cartography Work MMC/SD Slot Software Updates ... 3 Accessory Bus Video and GPS Output Connectors ... 3 Installation Overview Control Head Installation Gimbal Mounting the Control Head... 6 In-Dash Mounting the Control Head ... 11 Connecting the Control Head Power Cable to the Boat ...
  • Page 5 Table of Contents Views Views and Readouts ... 28 Bird’s Eye No Readouts View ... 29 Bird’s Eye View ... 31 Chart/Bird's Eye Combo View... 33 Chart/Chart Combo View ... 35 Chart No Readouts View ... 37 Chart View... 39 Chart Instrument View ...
  • Page 6 Table of Contents Cursor to Waypoint (Chart or Combo view only) ... 69 Save Current Track ... 69 Clear Current Track ... 70 Save Current Route (only when navigating) ... 70 Skip Next Waypoint (only when navigating) ... 70 Cancel Navigation (only when navigating) ... 71 Cancel MOB Navigation (only when MOB Navigation is activated)...
  • Page 7 Table of Contents Chart Menu Tab Chart Detail Level ... 90 Map Borders ... 90 Lat/Lon Grid ... 91 Spot Soundings... 91 Navaids on Bird's Eye View ... 91 Shaded Depth ... 91 Chart Select... 92 NVB Chart Preference... 92 Set Simulation Position (Advanced) ...
  • Page 8 NOTE: Entries in this Table of Contents which list (with Speed Input) or (with Temperature Input) may require the purchase of separate accessories. You can visit our website at www.humminbird.com to order these accessories online or contact our Customer Resource Center at 1-800-633-1468.

  • Page 9: 1100 Series™ Introduction

    1100 Series™ Introduction Your 1100 Series™ Chartplotter comes in the following configuration: • Humminbird® 1155c Chartplotter: Networkable GPS Chartplotting System, GPS Receiver included. How GPS and Cartography Work Your 1100 Series™ Chartplotter supports GPS and chartplotting, and uses GPS to determine your position and display it on a grid.

  • Page 10: Mmc/Sd Slot

    The GPS Receiver included with your 1100 Series™ Chartplotter allows you to combine easy-to-use chartplotter and navigation capabilities. The following GPS functionality is currently supported by the 1100 Series™ Chartplotter when it is connected to the included GPS receiver: • View current position •...

  • Page 11: Software Updates

    Accessory Bus NOTE: Accessories such as the CannonLink™ Downrigger Controller, InterLink™, and the WeatherSense® require separate purchases. You can visit our website at www.humminbird.com or contact our Customer Resource Center at 1-800-633-1468 for additional details. Video and GPS Output Connectors Your unit comes with a Video Out connector and a GPS Out connector, which can be used with optional- purchase accessories.

  • Page 12: Installation Overview

    Installation Overview Please read all instructions that are relevant for your configuration before beginning the installation process. NOTE: Installation procedures will depend on product configuration. The 1100 Series™ has a wide variety of configurations. Optional “Y” Cable Power Temperature Speed through water Accessory Bus GPS Receiver WeatherSense®...
  • Page 13 • Installing the GPS Receiver • Testing the complete installation. NOTE: Accessories may require a separate purchase. You can visit our website at www.humminbird.com to order these accessories online or contact our Customer Resource Center at 1-800-633-1468. 1100 Series™ Connectors...

  • Page 14: Control Head Installation

    In- dash mounting. Gimbal Mounting the Control Head If you are gimbal mounting the Humminbird® 1100 Series™, you can pre-assemble the unit in order to plan the best mounting location. Washer...
  • Page 15 Do not cut any cabling (except the power cable). If your cables are too short, extensions are available from your local dealer or online from www.humminbird.com. 3. After the mounting location has been determined, loosen the gimbal knobs and remove the control head from the gimbal bracket.
  • Page 16 6a. If the cables must pass through a hole directly beneath the mounting bracket, mark and drill an additional 1" (25 mm) hole centered between the four mounting holes. Route the cables through the 1" hole. Place the gimbal over the mounting surface hole, then use it to mark the position of the two mounting screws, closest to the center large hole.
  • Page 17 Gimbal Mounting Bracket Grommet Hole Cover 9. Thread the cables through the opening in the back of the cable collector cover. 10. Insert cable connectors into the proper recesses on the cable collector insert. The cable connectors are keyed to prevent reverse installation, so be careful not to force the connectors into the wrong slots.
  • Page 18 Plugging the Assembled Cable Connector into the Back of the Control Head NOTE: You may wish to dress the cabling with nylon wire ties in order to hold the cables together and create a cleaner assembly. The Humminbird® 1100 Series™ control head is now ready for operation. Assembling the Cable Collector...

  • Page 19: In-Dash Mounting The Control Head

    Make sure that the surfaces you have chosen provide adequate protection from wave shock, and that all cables can reach the control head. NOTE: If a cable is too short for your application, extension cables are available. Call Humminbird® Customer Support at 1-800-633-1468 for more information.
  • Page 20 5. Insert the control head through the mounting hole from the front side of the dash. Place a washer, lock washer, and wing nut onto each threaded rod and tighten fully. 6. Thread the cables through the opening in the back of the cable collector cover. 7.
  • Page 21 NOTE: You may wish to dress the cabling with nylon wire ties in order to hold the cables together and create a cleaner assembly. NOTE: It is very important that the cable collector is used and secured in place in the In-Dash installation. The Humminbird® 1100 Series™ control head is now ready for operation.

  • Page 22: Connecting The Control Head Power Cable To The Boat

    NOTE: Make sure that the power cable is disconnected from the control head at the beginning of this procedure. NOTE: Humminbird® is not responsible for over-voltage or over-current failures. The control head must have adequate protection through the proper selection and installation of a 3 Amp fuse.

  • Page 23: Gps Receiver Installation

    GPS receiver, follow the instructions included with that hardware to mount the stem (antenna pole). NOTE: AS-EC10 10' extension cables are available from Humminbird® if your planned routing exceeds 20', (6 m). Maximum cable length, including extensions, should not exceed 50' (16 m).
  • Page 24 Receiver Receiver Base Stem Pipe 2. Screw on the receiver base to the stem first, making sure that the stem pipe does not protrude from the receiver base. This adds protection to the cable when pulling it through the pipe stem. In addition to this, de-burr the pipe edges to reduce cable abrasion.

  • Page 25: Access Under Mounting Location

    1. Determine the best location, then test route the cable from the mounting location to the control head. NOTE: AS-EC10 10' extension cables are available from Humminbird® if your planned routing exceeds 20', (6 m). Maximum cable length, including extensions, should not exceed 50' (16 m).

  • Page 26: Finish Routing The Cable And Check Gps Receiver Operation

    NOTE: Remember to seal screw holes and drilled holes as needed with marine-grade silicone sealant to protect your boat from water damage. 3. The GPS receiver has two wire routing notches. Use the cable notch closest to the intended cable route.

  • Page 27: Testing The System Installation

    Testing the System Installation After you have completed the installation of the control head and any other accessories such as the GPS receiver, and have made all the cabling connections required, you must test the installation before using the system. To test the installation: 1.

  • Page 28: Getting Started - Using Your 1100 Series

    Getting Started - Using Your 1100 Series™ Your 1100 Series™ Chartplotter user interface is easy to use. A combination of keys, different views, and situation-specific, customizable menus allows you to control what you see on the color display. Refer to the following illustration, and see Key Functions, Views, and The Menu System for more information.

  • Page 29: Powering Up The Control Head

    Powering Up the Control Head Turn on your Chartplotter by pressing the POWER/LIGHT key. The Title screen is displayed until the Chartplotter begins operation. After the Title screen is displayed, a 30 second Navigation Warning screen is shown. Press the MENU key during the time that the Title screen is displayed to view the Start-Up Menu in order to choose Simulator mode.

  • Page 30: What's On The Display

    What’s On the Display The 1100 Series™ Chartplotter can display a variety of useful information. Chart Bird's Eye Combo View Cursor Info Box: indicates the Latitude and Longitude of the cursor position, the distance to travel to the cursor position and the bearing to the cursor position is shown with a GPS receiver.
  • Page 31 is shown with navigation active. Track: Detailed position history, displayed as a breadcrumb trail of trackpoints. Cartography Map Scale Selectable Readout Boxes Course: the current direction the boat is traveling measured in degrees from North. Bearing: Bearing to Waypoint XTE: Cross Track Error Speed: the measurement of the boat’s progress across a given distance;...

  • Page 32: Key Functions

    Key Functions Your 1100 Series™ user interface consists of a set of easy-to-use keys that work with various on-screen views and menus to give you flexibility and control over your fishing experience. Your control head has the following keys: • POWER/LIGHT key •...

  • Page 33: View Key

    MENU Key The MENU key is used to access the menu system. Start-Up Options Menu - Press the MENU key during the power up sequence to view the Start-Up Options menu. X-Press™ Menu - Press the MENU key once for the X-Press™ Menu. The X-Press™ Menu allows you to access frequently-used settings without having to navigate through the whole menu system.

  • Page 34: View Preset Keys

    EXIT Key The EXIT key has multiple functions, depending on the situation: • If an alarm is sounding, pressing EXIT will cancel the alarm. • If a menu tab is selected, pressing EXIT will exit the menu mode and return to the view. •...

  • Page 35: Mark Key

    MARK Key Press the MARK key while in any view to mark the position of a waypoint, either at the current boat location, or, if the Cursor is active, at the current Cursor location. The MARK key only functions if you have the GPS receiver connected, or if you have enabled Screen Snapshot from the Accessories menu tab.

  • Page 36: Views

    Views The views available on your 1100 Series™ are: Diagnostic Diagnostic Diagnostic View View View Accessory Accessory Accessory Test View Test View Test View Self Test Self Test Self Test View View View Screen Snapshot Screen Snaphot Screen Snaphot View View View •...

  • Page 37: Bird's Eye No Readouts View

    Bird's Eye No Readouts View Bird's Eye No Readouts View shows a 3D perspective view like all the other Bird's Eye Views, but without readouts. See Bird's Eye View for more information. Waypoint Boat Icon Bird's Eye No Readouts View (Standard) Track Cartography...
  • Page 38 Cartography Waypoint Arrival Alarm Limits Off Course Limits Bird's Eye No Readouts View (Navigating) Boat Icon Route Track...

  • Page 39: Bird's Eye View

    Bird's Eye View Bird's Eye View shows a 3D perspective view of the track and the chart land contour from a point above and behind the boat (the eye point). As the boat turns, the eye point moves to follow the boat. When you press the 4-WAY Cursor key in any of the Bird’s Eye Views, the position of the eye point will shift.
  • Page 40 Next Waypoint Course: the current direction the boat is traveling measured in degrees from North. Bearing: Direction to Destination Waypoint measured in degrees from North XTE (Cross Track Error): Distance of Boat from Route Speed: the measurement of the boat’s progress across a given distance, and is the speed measurement provided by GPS.

  • Page 41: Chart/Bird's Eye Combo View

    Chart/Bird’s Eye Combo View Chart/Bird’s Eye Combo View shows both the Chart and Bird’s Eye views in a combination split screen. You can perform any of the functions for either of these views, but only when the view you want to control is selected as the active side (see Navigation X-Press™...
  • Page 42 Next Waypoint Course: the current direction the boat is traveling measured in degrees from North. Bearing: Direction to Destination Waypoint measured in degrees from North XTE (Cross Track Error): Distance of Boat from Route Speed: the measurement of the boat’s progress across a given distance; the speed measurement provided by GPS.

  • Page 43: Chart/Chart Combo View

    Chart/Chart Combo View Chart/Chart Combo View shows two versions of the Chart view in a combination split screen, so that you can see the position of the boat on one side while you zoom in or perform other functions on the other. You can perform any of the functions for the Chart view, but only on the side of the view you have selected as the active side (see Navigation X-Press™...
  • Page 44 NOTE: All views except the Bird's Eye/Chart Instrument View share the same set of 5 selectable readouts that can all be set one way for navigation mode and another way for non-navigation mode. When you change the readout displays on one of these views, you also are changing them on all the other views that share the same configuration.

  • Page 45: Chart No Readouts View

    Chart No Readouts View Chart No Readouts View shows cartography like all the other Chart Views, but without readouts. See Chart Views for more information. Map Scale Cartography Course Projection Line Chart No Readouts View (Standard) Waypoint Boat Icon Track...
  • Page 46 Map Scale Cartography Course Projection Line Next Waypoint Chart No Readouts View (Navigating) Boat Icon Route Track...

  • Page 47: Chart View

    Chart View Chart Views - The standard Chart, Chart No Readouts, and Chart/Chart Combo Views, as well as the Chart side of the Chart/Bird's Eye Combo View and the Chart/Bird's Eye Combo Instrument View, all show cartography from the built-in UniMap™ or an optional MMC/SD map for the area surrounding your current position.
  • Page 48 NOTE: All views except the Bird's Eye/Chart Instrument View share the same set of 5 selectable readouts that can all be set one way for navigation mode and another way for non-navigation mode. When you change the readout displays on one of these views, you also are changing them on all the other views that share the same configuration.
  • Page 49 Chart View (Navigating) with optional-purchase Navionics® Cartography Next Waypoint Course: the current direction the boat is traveling measured in degrees from North. Bearing: Direction to Destination Waypoint measured in degrees from North XTE (Cross Track Error): Distance of Boat from Route Speed: the measurement of the boat’s progress across a given distance;...

  • Page 50: Chart Instrument View

    Chart Instrument View Chart Instrument View displays a digital panel at the top of the screen. This view provides a digital compass, XTE graphic, and up to 10 readouts. NOTE: Only the standard configuration readouts are shown in the graphics. Readouts can be customized to suit your needs.
  • Page 51 XTE (Cross Track Error): Distance of Boat from Route Compass Cartography Course Projection Line Next Waypoint Boat Icon Track Map Scale Bearing: Direction to Destination Waypoint measured in degrees from North Course: the current direction the boat is traveling measured in degrees from North. Time Latitude and Longitude Position of Boat END: Last waypoint in the route...

  • Page 52: Chart/Bird's Eye Instrument View

    Chart/Bird's Eye Instrument View Chart/Bird's Eye Instrument View displays a digital instrument panel at the top of the screen. This view provides a digital compass, XTE graphic, and up to 10 readouts. NOTE: Only the standard configuration readouts are shown in the graphics. Readouts can be customized to suit your needs.
  • Page 53 Chart/Bird’s Eye Instrument View (Navigating) Bearing: Direction to Destination Waypoint measured in degrees from North Course: the current direction the boat is traveling measured in degrees from North. XTE (Cross Track Error): Distance of Boat from Route Time NEXT: Next Waypoint in the Route TTG: Time to Go to Waypoint DTG: Distance to Go to Waypoint Latitude and Longitude Position of Boat...

  • Page 54: Screen Snapshot View

    Screen Snapshot View Screen Snapshot View displays and allows you to view screen snapshot thumbnails captured to an optional-purchase MMC/SD card installed in your unit. In addition, when you are in the Screen Snapshot View, Delete Image and Delete All Images are added to the X-Press™ menu. The Screen Snapshot View displays up to three screen snapshot thumbnails on the screen at a time;...
  • Page 55 Highlighted Screen Snapshot Thumbnail Screen Snapshot Thumbnail Unavailable icon Information Box Snapshot Name For more information, see Accessories Menu Tab: Using Screen Snapshot and Screen Snapshot X-Press™ Menu. Waypoint Thumbnails: On the Chart View, you can use the INFO key to view Screen Snapshot as Waypoint thumbnails.
  • Page 56 Chart View showing the Waypoint Thumbnail Feature Cursor Info Box Latitude and Longitude Position of Cursor Distance to Cursor Bearing to Cursor Route Boat Icon Snapshot Waypoint Name Waypoint Thumbnail Map Scale Next Waypoint When you start a screen snapshot, you will see a message that a waypoint has been created at the point where your cursor is on the screen, and the screen will freeze while the snapshot is being saved to the MMC/SD card.

  • Page 57: Chart Orientation

    Chart Orientation All the chart views allow you to choose the orientation of the chart. When North-Up orientation is selected, True North is shown at the top of the display. In other words, objects located to the north of the boat are drawn above the boat.

  • Page 58: Viewing Cartography

    Viewing Cartography In the Chart or Combo Views, there are several cartography-related functions that you can access using various keys. Panning: Use the 4-WAY Cursor keys to move the chart around on the display in the direction of the key being pressed.
  • Page 59 Chart Info: Use the INFO key to get detailed information about the chart. If the cursor is active, you will see information about the chart objects located near the cursor. If the cursor is not active, the Chart Info menu will appear. You can select the nearest port, the nearest tide station, or the nearest current station to see information about any of these objects using the 4-WAY Cursor Control key.

  • Page 60: Introduction To Navigation

    Introduction to Navigation Use the 1100 Series™ to establish waypoints at areas of interest and to navigate to those waypoints via a saveable route (representing the shortest intended distance between waypoints). You can also view and save tracks, which represent the actual path of the boat. Waypoints, Routes and Tracks Waypoints are stored positions that allow you to mark areas of interest or navigation points.

  • Page 61: Save, Edit, Or Delete A Waypoint

    Routes link two or more waypoints together to create a path for navigation, and are used in trip planning. You can link individual waypoints together by using the GOTO key. A route represents your intended navigation and shows the shortest path from each waypoint to the next. As you travel a route, staying on the route line is the most efficient way to get to your destination, although you should always look out for obstacles not shown on the chart.

  • Page 62: Navigate To A Waypoint Or Position

    To make it easier to select a waypoint, select Sort By and press the RIGHT or LEFT Cursor keys to select a sort order: • Name shows the waypoints alphabetically • Time shows the most recently-created waypoint first • Distance shows the closest waypoint first. Delete a waypoint: From the Waypoints submenu, select Delete and press the RIGHT Cursor key to display a list of waypoints.

  • Page 63: Add A Waypoint Target Or Trolling Grid

    Add a Waypoint Target or Trolling Grid Add or Remove a Waypoint Target: From the Waypoints submenu (accessed from the Navigation main menu), select Target and press the RIGHT Cursor key to display a list of waypoints. Select the waypoint you want to target.
  • Page 64 Add or Remove a Trolling Grid: From the Waypoints submenu (accessed from the Navigation main menu), select Grid and press the RIGHT Cursor key to display a list of waypoints. Select the waypoint to which you want to add the grid. The trolling grid will appear on all of the navigation views, and can be used as a guide when trolling around a waypoint.

  • Page 65: Save, Edit Or Delete A Route

    Save, Edit or Delete a Route Save the current route: While you are navigating, the current route can be saved. From the Navigation X-Press™ Menu, select Save Current Route and press the RIGHT Cursor key. Navigation will continue. Display the Routes submenu: From any view, press the MENU key twice to display the Main Menu System, then use the RIGHT Cursor key to select the Navigation tab.

  • Page 66: Edit, Delete Or Hide Saved Tracks

    Edit, Delete or Hide Saved Tracks Display the Tracks Submenu: From any view, press the MENU key twice to display the Main Menu System, then use the RIGHT Cursor key to select the Navigation tab. Select Tracks and press the RIGHT Cursor key to display the Tracks submenu.
  • Page 67 Activate MOB navigation: Press and hold the GOTO key for more than 1.5 seconds to activate the Man Overboard (MOB) function. Cancel MOB navigation: From the Navigation X-Press™ menu, select Cancel MOB and press the RIGHT Cursor key. Canceling MOB navigation removes the route and any waypoints created using the GOTO key, but does not remove any saved routes from memory.

  • Page 68: The Menu System

    The Menu System The menu system is divided into easy-to-use menu modules. The main components of the menu system are: Start-Up Options Menu: Press the MENU key during the power up sequence to view the Start-Up Options menu. See Start-Up Options Menu. X-Press™...
  • Page 69 QUICK TIPS: • When your cursor is within a menu tab, press the EXIT key to jump directly to the top of the tab. • If you are at the bottom of a menu tab, press the DOWN Cursor key to jump directly to the top of the tab.

  • Page 70: Delete All Nav Data (Advanced)

    Setup Tab, Normal User Mode Setup Tab, Advanced User Mode...

  • Page 71: Start-Up Options Menu

    Start-Up Options Menu Press the MENU key when the Title screen is displayed to access the Start-Up Options menu. Use the UP or DOWN 4-WAY Cursor keys to position the cursor, then the RIGHT Cursor key to select one of the following choices. If you wait too long, the system will default to whichever menu mode happens to be highlighted: •...

  • Page 72: Simulator

    Normal operation. NOTE: At startup, while still on the Title screen (while the name of your Humminbird® model is still on the screen) you must press the MENU key and then select Simulator manually to enter Simulator mode. Manually selecting Simulator from the Start-Up Options menu allows you to pre-configure your Chartplotter for on the water operation.

  • Page 73: Self Test

    Self Test Self Test displays results from the internal diagnostic self test, including unit serial number, Printed Circuit Board (PCB) serial number, software revision, total hours of operation and the input voltage. IP and MAC addresses are also displayed. Accessory Test Accessory Test lists the accessories connected to the system.

  • Page 74: Gps Diagnostic View

    GPS Diagnostic View GPS Diagnostic View, which is only available when a GPS Receiver is attached to your 1100 Series, shows a sky chart and numerical data from the GPS receiver. The sky chart shows the location of each visible GPS satellite with its satellite number and a signal strength bar.

  • Page 75: Navigation X-Press™ Menu

    Navigation X-Press™ Menu The Navigation X-Press™ Menu provides access to the settings most frequently used. Press the MENU key once while in the Navigation Views (Chart or Bird's Eye Views) to access the Navigation X-Press™ Menu. NOTE: Menu choices will vary depending on system settings, such as whether you are currently navigating.

  • Page 76: Active Side

    active; key presses will only affect the active side of the screen. When a menu is displayed, the non-active side of the screen will be grayed out; at any other time, a green arrow will point to the active side. The Active Side menu choice is only available when a Combo View is active.

  • Page 77: Cursor To Waypoint (Chart Or Combo View Only)

    The Waypoint Submenu contains the following menu choices: Edit allows you to edit the Name, Position (Latitude and Longitude) and select the Icon that will be used to represent the waypoint in the Chart and Combo Views. Delete allows you to delete a waypoint from the list of saved waypoints. Target allows you to apply a target to a waypoint selected from the list of waypoints.

  • Page 78: Clear Current Track

    displayed and start a new track at the present position. To Clear Current Track: 1. Highlight Clear Current Track on the Navigation X-Press™ Menu. 2. Use the RIGHT 4-WAY Cursor Control key to initiate clearing the current track. 3. The Confirm dialog box will appear. To clear the current track, press the RIGHT Cursor key once more.

  • Page 79: Cancel Navigation (Only When Navigating)

    Cancel Navigation discards the current route and exits Navigation Mode. This menu choice will only appear when you are currently navigating a route. This will not delete a previously-saved route. To Cancel Navigation: 1. Highlight Cancel Navigation on the Navigation X-Press™ Menu. 2.

  • Page 80: Remove Grid (Only If A Grid Is Active)

    Remove Grid removes the waypoint grid from the display. This menu choice will only appear when a grid has already been applied to a waypoint. To Remove a Grid: 1. Highlight Remove Grid on the Navigation X-Press™ Menu. 2. Use the RIGHT 4-WAY Cursor Control key to remove the grid. Waypoint [Name] allows you to view the waypoints submenu for the most recently created waypoint.

  • Page 81: Select Readouts

    can display readouts. This feature allows you to select what information will be displayed in each of a variable number of fixed-position readouts arranged at the bottom of the screen on various views, or whether a particular readout will be turned off, displaying nothing in that area. Readout positions can also display information from supported accessories such as Temp/Speed.
  • Page 82 5 Selectable Readouts, Used by All Non-Instrument Views; Non-Navigation Mode Course Over Ground; Course Over Ground is the current direction the boat is traveling measured in degrees from North (i.e. 321°, where 000° is North, 090° East, 180° is South, 270° is West). When the Course Over Ground is equal to Bearing, the boat is said to be “On Course”...
  • Page 83 To Select Readouts: 1. Highlight Select Readouts on the Navigation X-Press™ menu. 2. Use the RIGHT 4-WAY Cursor Control key to initiate this procedure. 3. The Select Readouts submenu will appear, showing a list of all readouts. Use the UP or DOWN Cursor keys to select a particular readout position, then use the RIGHT or LEFT Cursor keys to change what will be displayed at that position.

  • Page 84: Select Nav Readouts

    used only during navigation on all non-instrument views. This feature allows you to select what information will be displayed in each of a variable number of fixed-position readouts arranged at the bottom of the screen on various views, or whether a particular readout will be turned off, displaying nothing in that area.
  • Page 85 5 Selectable Readouts Used by All Non-Instrument Views; Navigation Mode Bearing Bearing is the direction to a destination waypoint measured in degrees from North (i.e. 321°, where 000° is North, 090° East, 180° is South, 270° is West). CMG/SMG Course Made Good/Speed Made Good. Course Made Good is the angle between the starting point on a route and the current position of the boat.

  • Page 86: Select Instrument Readouts

    Select Instrument Readouts Select Instrument Readouts sets individual digital readouts on all of the instrument views. This feature allows you to select what information will be displayed in 8 of the 10 fixed-position readouts arranged at the bottom of the screen on the special instrument views; it also allows you to select whether a particular readout will be turned off, displaying nothing in that area.
  • Page 87 Chart/Bird's Eye Instrument Views with 8 Default Readouts Chart/Bird's Eye Instrument Views with 8 Custom Readouts...

  • Page 88: Screen Snapshot X-Press™ Menu (Screen Snapshot View Only)

    Screen Snapshot X-Press ™ Menu Delete Image allows you to delete a single screen capture image from the Screen Snapshot View. This menu option is only available when you have an optional-purchase MMC/SD card installed and you are in Screen Snapshot View and you have selected an image thumbnail. To delete an image: 1.

  • Page 89: Navigation Menu Tab

    Navigation Menu Tab Press the MENU key twice to access the Main Menu System, then press the RIGHT cursor key to select the Navigation tab. NOTE: Menu choices will vary depending on system settings. Navigation Menu...

  • Page 90: Current Track

    To view the Current Track Submenu: 1. Highlight Current Track on the Navigation main menu. 2. Use the RIGHT 4-WAY Cursor Control keys to view the Current Track submenu. The Current Track Submenu contains the following menu choices: Save Current Track allows you to save the current track. Clear Current Track allows you to clear the current track.

  • Page 91: Waypoints

    The Saved Tracks Submenu contains the following menu choices: Edit allows you to select a previously-saved track and edit its name, whether it is visible or not, and its appearance. Delete allows you to delete a track from a list of previously-saved tracks. Default sets the appearance of the track created by selecting Save Current Track.

  • Page 92: Routes

    To view the Routes Submenu: 1. Highlight Routes on the Navigation main menu. 2. Use the RIGHT 4-WAY Cursor Control keys to view the Routes submenu. The Routes Submenu contains the following menu choices: Create allows you to create a new, empty route and add waypoints to it immediately. Edit allows you to select a previously-saved route and edit its name and the waypoints on it.

  • Page 93: North Reference

    two orientations: True North or Magnetic North. To change the North Reference setting: 1. Highlight North Reference on the Navigation main menu. 2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the North Reference setting. (True, Magnetic, Default = True) grid in degrees, where a setting of 0°...

  • Page 94: Track Min Distance (Advanced)

    Track Min Distance allows you to set a minimum distance of travel before a trackpoint is added to the track. NOTE: Track Min Distance works in conjunction with Trackpoint Interval. Both conditions must be met before a trackpoint is added to the current track. To change the Track Minimum Distance setting: 1.

  • Page 95: Course Projection Line

    extending from the bow of the boat that projects your current course, and shows where the boat will go if you continue on your present course. To change the Course Project Line setting: 1. Highlight Course Projection Line on the Navigation main menu. 2.
  • Page 96 Delete All Nav Data allows you to delete all saved Tracks, Waypoints and Routes. This menu choice should be used with caution. To Delete All Navigation Data: 1. Make sure you are in Advanced User Mode, then highlight Delete All Nav Data on the Navigation main menu.

  • Page 97: Chart Menu Tab

    Chart Menu Tab Press the MENU key twice to access the Main Menu System and then press the RIGHT Cursor key to select the Chart tab. NOTE: Menu choices will vary depending on system settings such as whether the unit is set for Advanced User mode. Chart Menu...

  • Page 98: Chart Detail Level

    displayed on the Navigation Views. Basic shows land areas, ports, obstructions and restricted areas. Navigation shows navaids, landmarks, ferryways and navigation routes in addition to the Basic information. Underwater shows depth contours, fishing areas, underwater wrecks, tides and currents in addition to the Basic and Navigation information.

  • Page 99: Lat/Lon Grid

    To change the Lat/Lon Grid setting: 1. Highlight Lat/Lon Grid on the Chart main menu. 2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the Lat/Lon Grid setting. (Hidden, Visible, Default = Hidden) are depth measurements shown on the chart. NOTE: Spot Soundings are only available with optional-purchase MMC/SD cards.

  • Page 100: Chart Select

    in charts or a map card. If you select Auto, your unit will select a chart automatically. To activate or de-activate Chart Select: 1. Highlight Chart Select on the Navigation main menu. 2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to select which chart to use. (Default = Auto) if you have an NVB unit.

  • Page 101: Set Map Offset (Advanced)

    Set Map Offset allows you to change the map offset used by the 1100 Series™. NOTE: The Map Offset will be applied to all maps and not just the map that requires the correction. The Map Offset should be cleared if a different map is to be used. To change the Map Offset setting: 1.

  • Page 102: Alarms Menu Tab

    Alarms Menu Tab From any view, press the MENU key twice to access the Main Menu System. The Alarms tab will be the default selection. NOTE: When an alarm is triggered, you can silence it by pressing any key. The alarm will be silenced, and will not be triggered again until a new instance of the alarm condition is detected.

  • Page 103: Alarm Volume

    To change the Alarm Volume setting: 1. Highlight Alarm Volume on the Alarms main menu. 2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the Alarm Volume setting. (Off, 1 - 10, Default = 5) or less than the menu setting. The battery alarm will only sound for the battery that is connected to the 1100 Series™.

  • Page 104: Off Course Alarm

    based on the menu setting when navigating. Off Course Alarm allows you to set how far the boat is allowed to move off course before the Off Course Alarm will sound. Arrival Alarm Circle To change the Off Course Alarm setting: 1.

  • Page 105: Drift Alarm

    boat’s anchored position, based on the menu setting. Drift Alarm allows you to set the size of a perimeter around the boat’s anchored position; if the anchored boat drifts outside of that perimeter, the Drift Alarm will sound. Drift Alarm Circle To change the Drift Alarm setting: 1.

  • Page 106: Setup Menu Tab

    Setup Menu Tab From any view, press the MENU key twice to access the tabbed Main Menu System, then press the RIGHT cursor key until the Setup tab is selected. NOTE: Menu choices will vary depending on system settings such as whether the unit is set for Advanced User mode and what accessories are attached to the control head.

  • Page 107: Sound Volume

    by the control head (except for the volume of the alarms, which is controlled by Alarm Volume). To change the Sound Volume setting: 1. Highlight Sound Volume on the Setup main menu. 2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the Sound Volume setting. (Mute, 1 - 10, Default = 5) To change the Units - Depth setting: 1.

  • Page 108: Units - Distance (With Speed Input Only)

    Units - Speed selects the units of measure for speed-related readouts. To change the Units - Speed setting: 1. Highlight Units - Speed on the Setup menu. 2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the Units - Speed setting. (kph [International models only], mph, kts, Default = kph for International models and mph for Domestic models) set to Normal, only the basic menu options are shown.

  • Page 109: Language (International Only)

    Use this menu choice with caution! To Restore Defaults: 1. Highlight Restore Defaults on the Setup menu. 2. Use the RIGHT 4-WAY Cursor Control key to initiate restoring defaults. 3. The Confirm dialog box will appear. To reset the defaults, press the RIGHT Cursor key once more.

  • Page 110: Temp. Offset (Advanced)

    Daylight Saving Time adjusts the time display to account for local Daylight Saving Time. Selecting On adds one hour to the time display adjusted for your local time zone. Selecting Off leaves the time display as adjusted for your local time zone. This menu choice is available only when in Advanced User Mode (see Setup Menu Tab: User Mode.) To change the Daylight Saving Time setting: 1.

  • Page 111: Daylight Saving Time (Advanced)

    Date Format changes the date format used by the unit This menu choice is available only when in Advanced User Mode (see Setup Menu Tab: User Mode.) International models only. Date Format selects the format for the date display when Time + Date is selected as a Digital Readout (see Navigation X- Press™: Select Readouts).

  • Page 112: Date Format (Advanced, International Only)

    NMEA Output turns the NMEA output on or off. This menu choice is available only when in Advanced User Mode (see Setup Menu Tab: User Mode.) The following NMEA sentences are output: DPT - Depth MTW - Water Temperature GLL - Lat/Lon Position GGA - GPS Fix Data RMC - Recommended Minimum Specific GNSS Data VTG - Course Over Ground and Ground Speed...

  • Page 113: Ip Address Setup

    this feature to open a window where a dynamic IP address can be selected (your control head will find and update its own address) or a static IP address (where you set the address manually). To use the IP Address Setup feature: 1.

  • Page 114: Views Menu Tab

    Views Menu To Change the View Status of Any View: 1. Highlight the View main menu tab. 2. Use the UP or DOWN 4-WAY Cursor Control keys to select a View. 3. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the status of the view from Hidden to Visible or vice versa.

  • Page 115: Accessories Menu Tab

    Accessories Menu (no accessories attached) NOTE: Accessories to enable WeatherSense® require separate purchases. You can visit our website at www.humminbird.com or contact our Customer Resource Center at 1-800-633-1468 for additional details. Accessories Menu (with accessories attached)

  • Page 116: Using Screen Snapshot

    Screen Snapshot is enabled, pressing the MARK key creates a saved screen capture on the optional- purchase MMC/SD card installed in your unit’s card slot. All menus, dialog boxes, warnings and messages are captured and saved automatically. Once you have created a screen capture, a screen capture thumbnail is added to the Screen Snapshot View, and is available to view at a later date.
  • Page 117 To view screen snapshots: 1. Make sure that the optional-purchase MMC/SD card used to capture the screen is installed in your card slot. 2. Press the VIEW key until you see the Screen Snapshot View. 3. You can scroll through the whole list of captures in this view using the 4-WAY Cursor keys. Highlight a thumbnail (using the Up or Down 4-Way Cursor keys), then use the Right 4-Way Cursor key to view the full image.

  • Page 118: Troubleshooting

    Troubleshooting Before contacting the Humminbird® Customer Resource Center, please read the following section. Taking the time to review these troubleshooting guidelines may allow you to solve a performance problem yourself, and therefore avoid sending your unit back for repair. Chartplotter Doesn’t Power Up If your Chartplotter doesn’t power up, use the Installation section in this manual for specific confirmation...

  • Page 119: Display Problems

    Display Problems There are several main conditions or sources of possible interference that may cause problems with the quality of the information displayed on the control head. Look in the following table for some symptoms of display problems and possible solutions: Problem The control head loses power at high speeds.

  • Page 120: 1-Year Limited Warranty

    This warranty is effective for one year from the date of original retail purchase. Humminbird® products found to be defective and covered by this warranty will be replaced or repaired free of charge at Humminbird’s option and returned to the customer freight prepaid.

  • Page 121: Humminbird® Service Policy

    We reserve the right to deem any product unserviceable when replacement parts are no longer available or impossible to obtain. This Service Policy is valid in the United States only. This applies only to Humminbird® products returned to our factory in Eufaula, Alabama. This Service Policy is subject to change without notice.

  • Page 122: Returning Your Unit For Service

    • Include a brief written description of the problem. • Include a copy of your receipt (to show proof and date of purchase). • Return product freight prepaid to Humminbird®, using an insured carrier with delivery confirmation. For OUT-OF-WARRANTY service, complete the following steps: •...

  • Page 123: 1100 Series™ Chartplotter Accessories

    With the new InterLink™ Network Connection, you can now share GPS position, waypoints, routes and your current track between two Humminbird® Fishing Systems in real time. Mark a waypoint at the console, and it’s instantly available on the second unit. No matter where you’re at on the boat, you’ll have access to your critical fishing and navigation information.

  • Page 124: Specifications

    NOTE: Product specifications and features are subject to change without notice. POLICY ON ENVIRONMENTAL COMPLIANCE: It is the intention of Humminbird® to be a good corporate citizen and comply and meet all known and applicable environmental regulations in the areas and countries where our products are sold.

  • Page 125: Glossary

    Acquisition Time: The length of time that a GPS receiver typically takes to determine a position from at least three satellites. Humminbird® GPS receivers provide very fast acquisition times (under one minute), permitting users to get out on the water faster.
  • Page 126 The MMC is removable from Humminbird® products, and can be used in a PC that is equipped with an appropriate card reader. MMC is the same format that many digital cameras use. See SD.
  • Page 127 Speed Over Ground is optimal for navigation because accurate destination times can be derived from this measurement. Humminbird® products allow for input and display of both speed measurements.
  • Page 128 Greenwich England. (UTC is equivalent to Greenwich Mean Time (GMT)). To display the correct Local Time in a Humminbird® GPS unit, the user must use the Local Time Zone menu and select the time zone (i.e. EST, CST).

  • Page 129: Contact Humminbird

    Contact Humminbird® Contact the Humminbird® Customer Resource Center in any of the following ways: By Telephone (Monday - Friday 8:00 a.m. to 4:30 p.m. Central Standard Time): 1-800-633-1468 By e-mail (typically we respond to your e-mail within three business days): cservice@johnsonoutdoors.com...

Table of Contents
