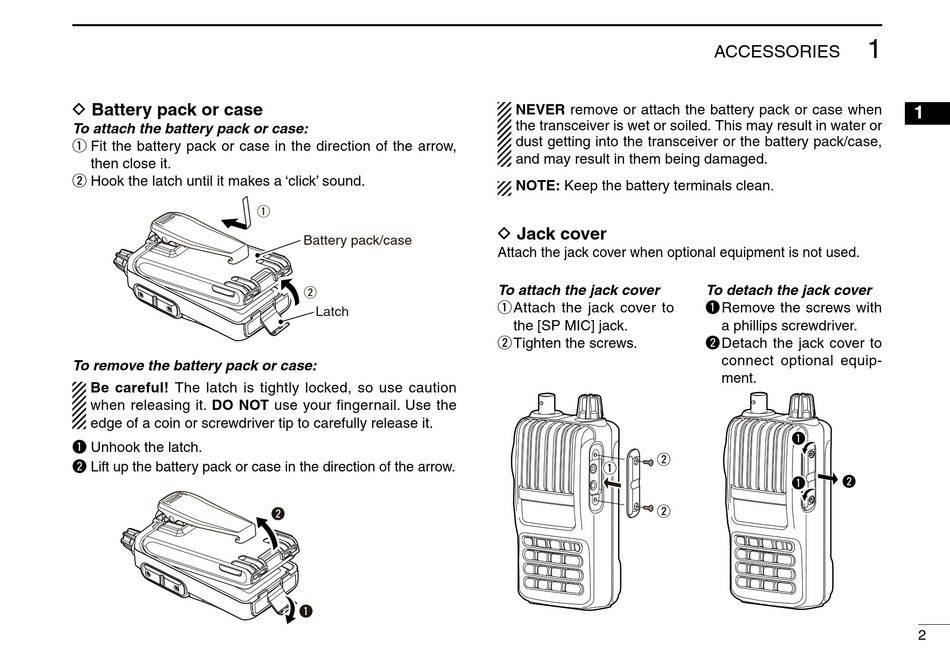

D Battery pack or case
To attach the battery pack or case:
q Fit the battery pack or case in the direction of the arrow,
then close it.
w Hook the latch until it makes a 'click' sound.
To remove the battery pack or case:
Be careful! The latch is tightly locked, so use caution
when releasing it. DO NOT use your fingernail. Use the
edge of a coin or screwdriver tip to carefully release it.
q Unhook the latch.
w Lift up the battery pack or case in the direction of the arrow.
q
Battery pack/case
w
Latch
w
q
NEVER remove or attach the battery pack or case when
the transceiver is wet or soiled. This may result in water or
dust getting into the transceiver or the battery pack/case,
and may result in them being damaged.
NOTE: Keep the battery terminals clean.
D Jack cover
Attach the jack cover when optional equipment is not used.
To attach the jack cover
q Attach the jack cover to
the [SP MIC] jack.
w Tighten the screws.
w
w
q
q
w
w
1

ACCESSORIES

To detach the jack cover
q Remove the screws with
a phillips screwdriver.
w Detach the jack cover to
connect optional equip-
ment.
q
q
w
q w
q
