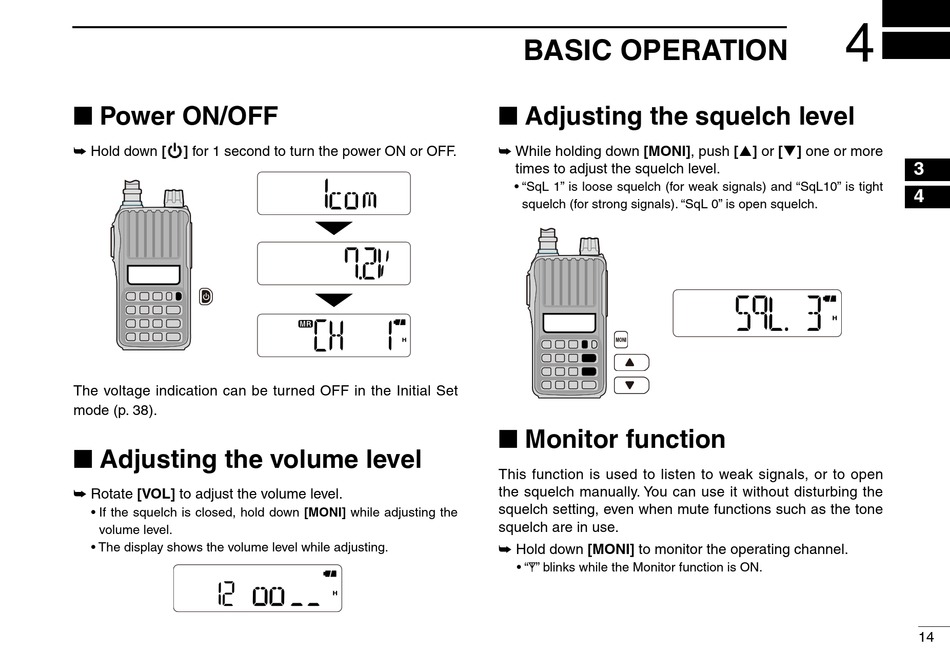

Basic Operation; Power On/Off; Adjusting The Volume Level; Adjusting The Squelch Level - Icom IC-G80 Instruction Manual

■ Power ON/OFF

➥ Hold down [ ] for 1 second to turn the power ON or OFF.
The voltage indication can be turned OFF in the Initial Set
mode (p. 38).

■ Adjusting the volume level

➥ Rotate [VOL] to adjust the volume level.
• If the squelch is closed, hold down [MONI] while adjusting the
volume level.
• The display shows the volume level while adjusting.

BASIC OPERATION

■ Adjusting the squelch level

➥ While holding down [MONI], push [] or [] one or more
times to adjust the squelch level.
• "SqL 1" is loose squelch (for weak signals) and "SqL10" is tight
squelch (for strong signals). "SqL 0" is open squelch.

■ Monitor function

This function is used to listen to weak signals, or to open
the squelch manually. You can use it without disturbing the
squelch setting, even when mute functions such as the tone
squelch are in use.
➥ Hold down [MONI] to monitor the operating channel.
• " " blinks while the Monitor function is ON.
