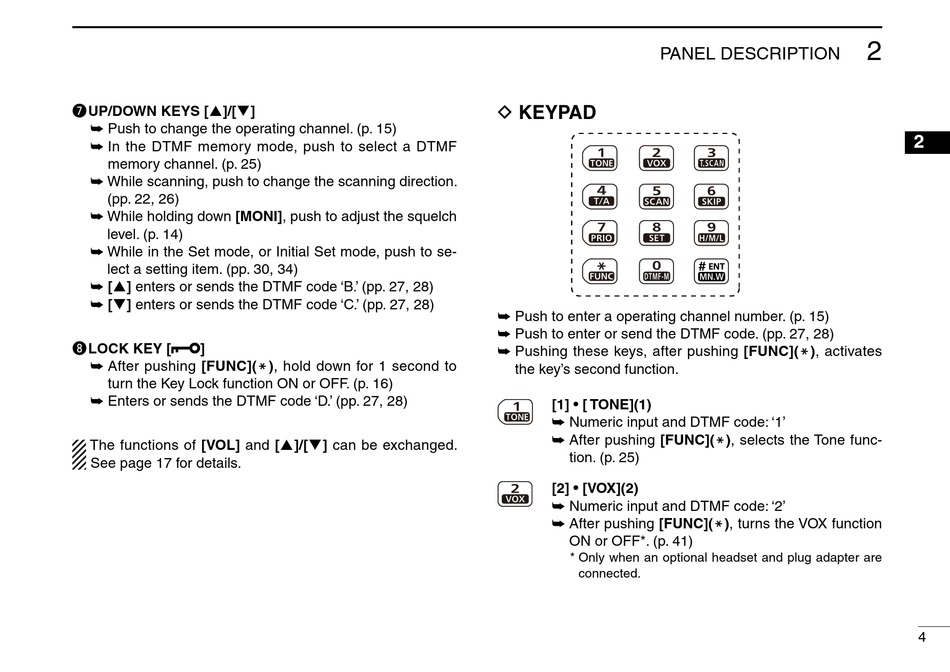

Icom IC-G80 Instruction Manual page 9

u UP/DOWN KEYS []/[]
➥ Push to change the operating channel. (p. 15)
➥ In the DTMF memory mode, push to select a DTMF
memory channel. (p. 25)
➥ While scanning, push to change the scanning direction.
(pp. 22, 26)
➥ While holding down [MONI], push to adjust the squelch
level. (p. 14)
➥ While in the Set mode, or Initial Set mode, push to se-
lect a setting item. (pp. 30, 34)
➥ [] enters or sends the DTMF code 'B.' (pp. 27, 28)
➥ [] enters or sends the DTMF code 'C.' (pp. 27, 28)
i LOCK KEY [ ]
➥ After pushing [FUNC](M), hold down for 1 second to
turn the Key Lock function ON or OFF. (p. 16)
➥ Enters or sends the DTMF code 'D.' (pp. 27, 28)
The functions of [VOL] and []/[] can be exchanged.
See page 17 for details.
PANEL DESCRIPTION
D KEYPAD
➥ Push to enter a operating channel number. (p. 15)
➥ Push to enter or send the DTMF code. (pp. 27, 28)
➥ Pushing these keys, after pushing [FUNC](M), activates
the key's second function.
[1] • [ TONE](1)
➥ Numeric input and DTMF code: '1'
➥ After pushing [FUNC](M), selects the Tone func-
tion. (p. 25)
[2] • [VOX](2)
➥ Numeric input and DTMF code: '2'
➥ After pushing [FUNC](M), turns the VOX function
ON or OFF*. (p. 41)
* Only when an optional headset and plug adapter are
connected.
