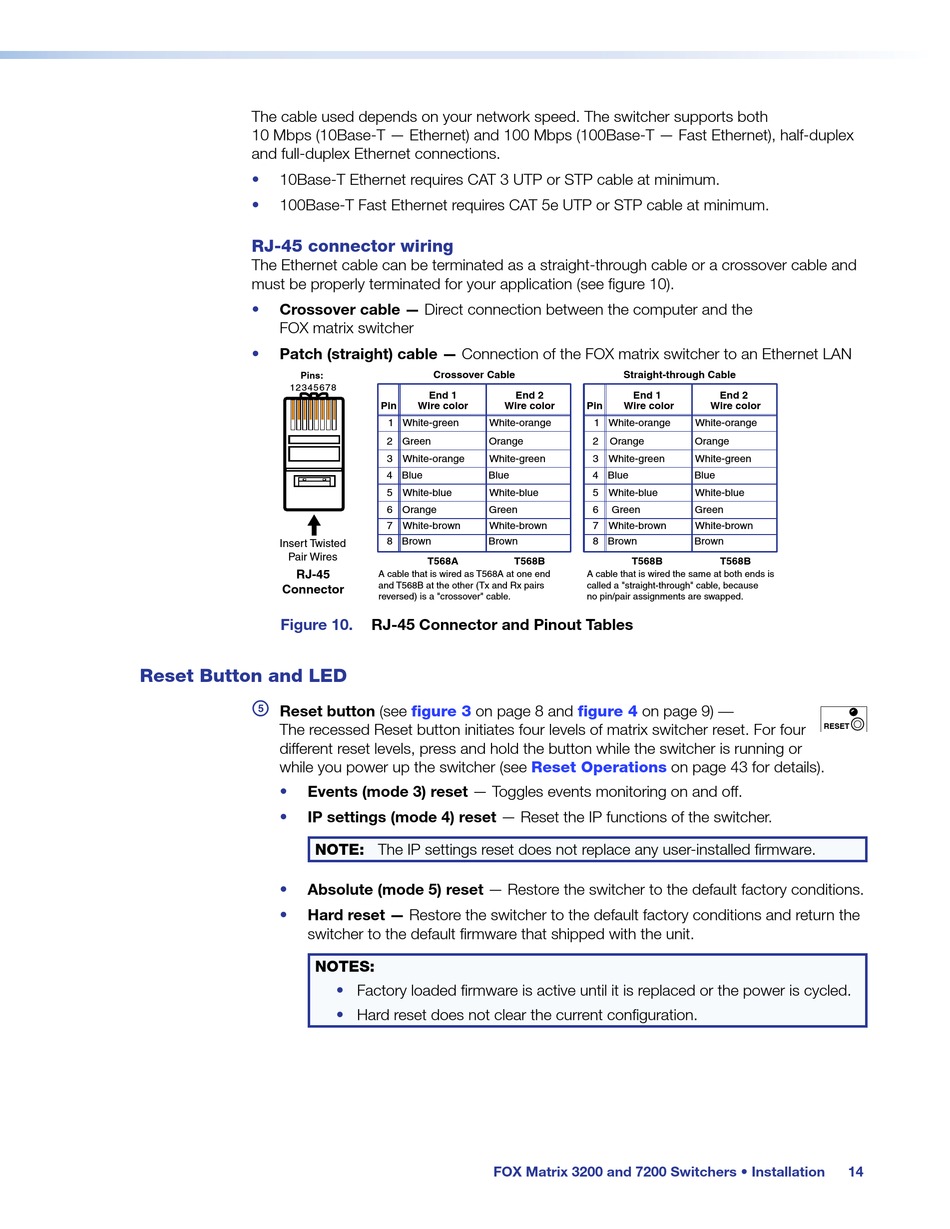

The cable used depends on your network speed. The switcher supports both
10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex
and full-duplex Ethernet connections.
• 10Base-T Ethernet requires CAT 3 UTP or STP cable at minimum.
• 100Base-T Fast Ethernet requires CAT 5e UTP or STP cable at minimum.
RJ-45 connector wiring
The Ethernet cable can be terminated as a straight-through cable or a crossover cable and
must be properly terminated for your application (see figure 10).
• Crossover cable — Direct connection between the computer and the
FOX matrix switcher
Patch (straight) cable — Connection of the FOX matrix switcher to an Ethernet LAN
•
Pins:
12345678
Insert Twisted
Pair Wires
RJ-45
Connector
Figure 10.

Reset Button and LED

e
Reset button (see
The recessed Reset button initiates four levels of matrix switcher reset. For four
different reset levels, press and hold the button while the switcher is running or
while you power up the switcher (see
Events (mode 3) reset — Toggles events monitoring on and off.
•
• IP settings (mode 4) reset — Reset the IP functions of the switcher.
NOTE: The IP settings reset does not replace any user-installed firmware.
Absolute (mode 5) reset — Restore the switcher to the default factory conditions.
•
• Hard reset — Restore the switcher to the default factory conditions and return the
switcher to the default firmware that shipped with the unit.
NOTES:
Crossover Cable
End 1
Pin Wire color Wire color
1 White-green White-orange
2 Green Orange
3 White-orange White-green
4 Blue Blue
5 White-blue White-blue
6 Orange Green
7 White-brown White-brown
8 Brown Brown
T568A T568B
A cable that is wired as T568A at one end
and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
RJ-45 Connector and Pinout Tables
figure 3 on page 8 and
• Factory loaded firmware is active until it is replaced or the power is cycled.
• Hard reset does not clear the current configuration.
FOX Matrix 3200 and 7200 Switchers • Installation
Straight-through Cable
End 2 End 1
Pin Wire color
1 White-orange White-orange
2 Orange Orange
3 White-green White-green
4 Blue Blue
5 White-blue White-blue
6 Green Green
7 White-brown White-brown
8 Brown Brown
T568B
A cable that is wired the same at both ends is
called a "straight-through" cable, because
no pin/pair assignments are swapped.
figure 4 on page 9) —
Reset Operations on page 43 for details).
End 2
Wire color
T568B
