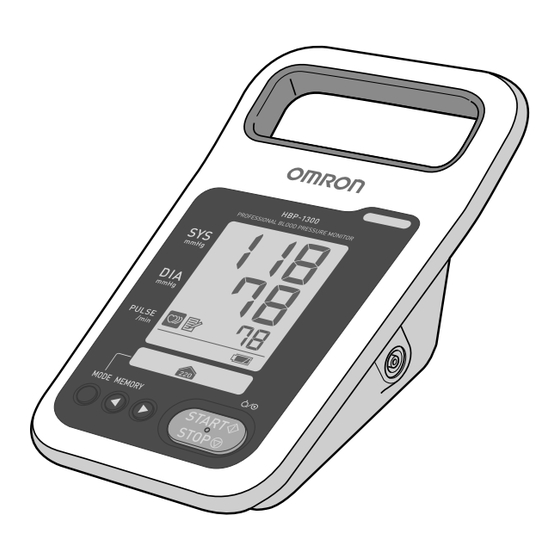

Page 1 • • KullanÕm KÕlavuzu Thank you for purchasing this OMRON Professional Blood Pressure Monitor. Please completely read this Instruction Manual before using the monitor for the first time. Read this manual to ensure the safe and accurate use of the monitor.
Page 2: Table Of Contents
Stopping the Measurement ..................23 Displaying Last Reading....................23 Maintenance Maintenance Inspection and Safety Management ............24 Cleaning of the Device ....................24 Accessory Care ......................24 Check before Use......................25 Troubleshooting......................26 List of Error Codes ......................28 Disposal........................29 Specifications Factory Default Settings ....................30 Technical Specifications: HBP-1300 ................30 Manufacturer’s Declaration..................33...
Page 3: Introduction Intended Use
1. When a problem or damage occurs caused by the maintenance and/or repair conducted by a person other than OMRON or the dealer specified by OMRON 2. The problem or damage of OMRON product caused by the product of other manufacturer not delivered by OMRON 3.
Page 4: Notes On Safety
Notes on Safety The warning signs and symbol examples indicated below are intended to ensure safe use of the product and prevent damage and injury to you and others. The signs and symbols are explained below. Safety Symbols used in this Instruction Manual Indicates the matters in which death or severe bodily damage may arise as a result Warning of incorrect handling.
Page 5: Warnings And Cautions
Do not use the cuff or AC adapter to lift the unit, it can also cause the unit to malfunction. If the unit has broken down, contact OMRON HEALTHCARE. Do not use in combination with a hyperbaric oxygen therapy device, or in an environment where combustible gas may be generated.
Page 6 For the AC adapter connected to the unit, supplies, and optional devices, use only the standard accessories or OMRON-specified products. Do not use in a location with moisture, or a location where water may splash on the unit.
Page 7 Caution Before using the unit, verify that none of the following apply to the patient: - Poor peripheral circulation, noticeably low blood pressure, or low body temperature (there will be low blood flow to the measurement position) - The patient uses an artificial heart and lung (there will be no pulse) - An SpO sensor and the cuff are attached to the same arm - The patient has an aneurysm...
Page 8 Cleaning Warning When cleaning the unit, turn off the power and disconnect the AC adapter from the unit. After cleaning the unit, make sure it is completely dry before connecting to a power outlet. Do not spray, pour, or spill liquids into or onto the unit, accessories, connectors, buttons, or openings in the housing.
Page 9 Warnings and cautions for safe measurement Rechargeable battery Warning If battery fluid comes in contact with the eye, immediately flush with copious amounts of water. Do not rub. Seek medical attention immediately. Do not use the battery pack in any other device besides this unit. Do not throw into flame, disassemble, or heat.
Page 10 The accuracy of a flashing measurement value that is out of the measurement range cannot be guaranteed. Always check the patient’s condition before deciding what steps to take. Do not use the cuff if it is damaged or has holes. Only OMRON GS CUFF can be used with this device.
Page 11 • If you sense that something is wrong with a battery, immediately move it to a safe location and contact the administrator responsible for the unit or OMRON HEALTHCARE. • If the battery voltage is low, operation by battery may not be possible.
Page 12: Using The Unit Components Of The Product
Components of the Product Before using the unit, make sure that no accessories are missing and that the unit and accessories are not damaged. If an accessory is missing or there is damage, please contact OMRON HEALTHCARE. Main unit Standard Medical Accessories •...
Page 13: Features Of The Product
Only OMRON GS CUFF can be used with this device. Features of the Product The OMRON HBP-1300 is an affordable professional blood pressure unit that is clinically proven accurate and provides fast, reliable results and is easy to use. Key features, benefits, look •...
Page 14: Features / Functions Of Unit
Features / Functions of Unit Front and back of unit Power ON / Measure blood pressure Press when the power is off to turn on the power and start blood pressure measurement. During inflation or [START/STOP] button measurement, press to stop. (Power ON/OFF) Power OFF Hold down at least 3 seconds to turn off the power.
Page 15 LCD Display Displays systolic blood pressure. Displays diastolic blood pressure. Pulse Displays the pulse rate. Pulse Flashes in synchronization with the pulse during synchronization icon measurement. Lights in the measurement result display and memory Irregular pulse wave display if the pulse wave interval was irregular or there icon was body movement during measurement (page 23).
Page 16: Installing The Battery Pack
Installing the Battery Pack Warning • If battery fluid comes in contact with the eye, immediately flush with copious amounts of water. Do not rub. Seek medical attention immediately. • Do not use the battery pack in any other device besides this unit. Do not throw into flame, disassemble, or heat.
Page 17: Connecting The Ac Adapter
Connect the AC adapter to the DC jack on the unit and the power outlet. Note: When the battery pack is installed If there is no problem with the following. - AC adapter - DC jack - Power outlet - Battery And the icon does not flash, contact OMRON HEALTHCARE.
Page 18: System Settings
System Settings The system settings are divided into two modes, “Menu Mode” and “Utility Mode”. Menu Mode “Menu Mode” allows you to configure the “Initial Inflation Pressure Value” and “Auscultation Mode” settings. Initial Inflation Auscultation Mode Pressure Value 1. Press the [MODE] button. The “Initial Inflation Pressure Value”...
Page 19: Utility Mode
Utility Mode “Utility Mode” allows you to configure the “Auto Power Off” and “Pressure Accuracy Confirmation” setting. 1. Confirm that the device is switched off. If the power is on, hold down the [START/STOP] button for at least 3 seconds to turn off the power.
Page 20: Non-Invasive Blood Pressure (Nibp) Measurement Non-Invasive Pressure Measurement Principles
Non-Invasive Blood Pressure (NIBP) Measurement Non-Invasive Pressure Measurement Principles Oscillometric method The beat in the pulsation generated by the contraction of the heart is captured as the pressure inside the cuff to measure the blood pressure. If the cuff wrapped around the upper arm is pressurized sufficiently, the blood flow stops, but the beat of the pulsation is present and the pressure inside the cuff receives this and oscillates.
Page 21: Cuff Selection And Connection
Connect the cuff tube to the NIBP connector on the unit and turn clockwise to lock. Caution Only OMRON GS CUFF can be used with this device. Note: • If the cuff tube is too short, the optional 3.5 m or 1.5 m CUFF HOSE can be connected to lengthen the cuff tube.
Page 22: Applying The Cuff To The Patient
Applying the Cuff to the Patient 1. Wrap on a bare arm or over thin clothing. Wrap the cuff on a bare arm or over thin clothing. Thick clothing or a rolled up sleeve will cause inaccurate blood pressure measurements. The device can be used on either the right or left arm.
Page 23: Taking The Measurement In "Manual Mode
Caution Make sure the cuff is wrapped in the correct arm position and is at the same height as the heart. A difference of 10 cm (4 inches) in height may cause a variation in the blood pressure value of up to 7 - 8 mmHg.
Page 24: Taking The Measurement In "Auscultation Mode
Irregular pulse wave detection function If the pulse wave interval becomes irregular during measurement, the irregular pulse wave detection icon will light to notify you. Body movement detection function If body movement is detected during measurement, deflation stops for 5 seconds. The irregular pulse wave icon appears in the measurement result display.
Page 25: Stopping The Measurement
Stopping the Measurement To stop measurement while measurement is in progress, press [START/STOP] button. Displaying Last Reading The previous measurement value (systolic blood pressure, diastolic blood pressure, and pulse rate) and whether or not an irregular pulse wave was detected can be displayed. In the case of auscultation measurement, the auscultation icon appears.
Page 26: Maintenance
Maintenance Maintenance Inspection and Safety Management The HBP-1300 must be maintained to ensure functionality and to secure the safety of patients and operators. Daily checks and maintenance should be performed by the operator. (page 25) In addition, qualified personnel are necessary to maintain the performance and the safety, and to conduct periodic inspections.
Page 27: Check Before Use
Q Press each button and check that it works. Non-invasive blood pressure (NIBP) Q Make sure that a suitable OMRON GS CUFF is attached (one that fits the circumference of the patient’s arm). Q The cuff tube is firmly connected.
Page 28: Troubleshooting
If the unit becomes too hot to be touched, there may be a problem in the unit. Turn off the unit power, disconnect the AC adapter, remove the battery, and contact OMRON HEALTHCARE. The unit is connected to a power outlet, but it runs on the the battery pack Cause / solution If AC power cannot be supplied, the unit will operate by battery only.
Page 29 Abnormal measurement value Cause / solution The causes below are possible. Check the patient by palpation and then repeat measurement. • Body movement (chills or other trembling) • Arrhythmia. • Noise in the cuff - A nearby person touched the patient. - Cardiac massage was being performed.
Page 30: List Of Error Codes
Points to check code The cuff tube is not connected Firmly connect the cuff tube. Replace with an OMRON GS CUFF that Air is leaking from the cuff. does not leak. Did not inflate properly because the arm Have the patient not move the arm or body, or body moved during measurement.
Page 31: Disposal
Medium Battery failed to charge. replace with a new battery. (page 14) Replace the battery with a new battery. If the Medium Battery voltage error error continues, contact OMRON HEALTHCARE. Disposal Description As there is a risk of environmental pollution, follow your applicable national and local legal regulations regarding disposal or recycling of this equipment and batteries.
Page 32: Specifications Factory Default Settings
Auscultation Mode ON, OFF Auto Power Off 5 min, 10 min 5 min Technical Specifications: HBP-1300 Main unit Measurement Parameter NIBP, PR Dimension Main unit: 123 x 201 x 99 (mm) 4.84 x 7.91 x 3.90 (inch) (W x H x D) AC adapter: 46 x 66 x 37 (mm) 1.81 x 2.60 x 1.46 (inch) (W x H x D)
Page 33 Environmental Conditions Operational temperature and Temperature range: 10 to 40°C (50 to 104°F) humidity Humidity range: 30 to 85%RH (not condensed) Atmospheric pressure: 700 to 1060hPa Storage and transportation Temperature range: -20 to 60°C (-4 to 140°F) Humidity range: 10 to 95%RH (not condensed) Atmospheric pressure: 500 to 1060hPa Non-Invasive Blood Pressure (NIBP) Measurement technology...
Page 34 This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: •...
Page 35: Manufacturer's Declaration
Manufacturer’s Declaration The HBP-1300 is intended for use in the electromagnetic environment specified below. The customer or the user of the HBP-1300 should assure that it is used in such an environment. Electromagnetic Emissions: (IEC60601-1-2) Emission Test Compliance Electromagnetic Environment...
Page 36 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the HBP-1300 is used exceeds the applicable RF compliance level above, the HBP-1300 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the HBP-1300.
Page 37 Recommended separation distance between portable and mobile RF communications equipment and the HBP-1300 The HBP-1300 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the HBP-1300 can help prevent electromagnetic interference by...
Page 38 Manufacturer OMRON HEALTHCARE Co., Ltd. 53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN EU-representative OMRON HEALTHCARE EUROPE B.V. Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS www.omron-healthcare.com OMRON (DALIAN) CO., LTD. Production facility Dalian, CHINA OMRON HEALTHCARE UK LTD. Opal Drive, Fox Milne, Milton Keynes, MK15 0DG, U.K.
