DCA-220SSJ/SSJU — GENERATOR START-UP PROCEDURE (MANUAL)
Before Starting
CAUTION - LETHAL EXHAUST HAZARD
The engine's exhaust contains harmful emissions.
ALWAYS have adequate ventilation when operating .
Direct exhaust away from nearby personnel.
WARNING - STARTING THE GENERATOR
NEVER! manually start the engine with the main , GFCI
or auxiliary circuit breakers in the ON (closed) position.
The Engine Control Unit (ECU) used with this generator
diagnosis engine faults that arise with the the engine control
system and the engine itself. Engine faults can be determined
by viewing the Diagnostic Trouble Codes (Active Fault Codes)
which are displayed on the Diagnostic Display Panel located
inside the Control Box.

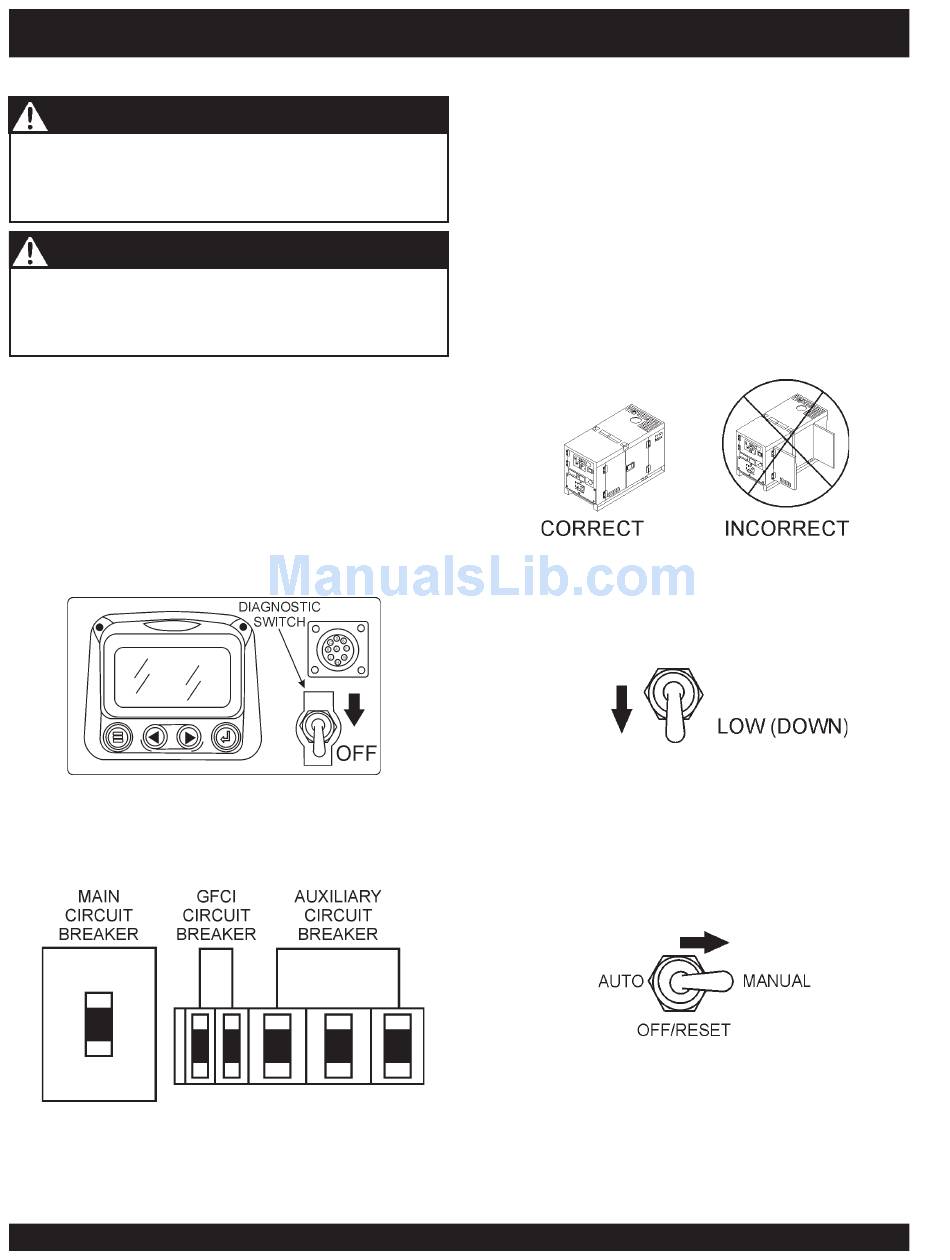

1. Before starting the engine, make sure the diagnostic
switch (Figure 38) on the Diagnostic Display Panel
Assembly is in the "OFF" position.
Figure 38. Diagnostic Switch (OFF poistion)
2. Place the main, G.F.C.I., and aux. circuit breakers
(Figure 39) in the OFF position prior to starting the engine.
Figure 39. Main, Aux. and GFCI
Circuit Breakers (OFF)
PAGE 52 — DCA-220SSJ/SSJU — OPERATION AND PARTS MANUAL — REV. #0 (02/04/14)
3. Make sure the the voltage change-over board has
been configured for the desired output voltage.
4. Connect the load to the receptacles or the output
terminal lugs as shown in Figure 14. These load
connection points can be found on the output terminal
panel and the output terminal panel's hard wire hookup
panel.
5. The output terminal lugs are protected by a plastic cover.
Remove this cover to gain access to the terminals.
Tighten terminal nuts securely to prevent load wires from
slipping out.
6. Close all engine enclosure doors (Figure 40).
Figure 40. Engine Enclosure Doors
Starting (Manual)
1. Place the engine speed switch (Figure 41) in the " LOW "
(down) position
Figure 41. Engine Speed Switch (Low)
2. Place the MPEC Control Switch in the MANUAL
position to start the engine (Figure 42). Observe that the
Warning and Emergency Stop lamps on the Engine
Operating Panel are lit during the initial starting of the
engine. If no abnormal conditions exists, both lamps will
turn off.
Figure 42. MPEC Control Switch
(Manual Position)
