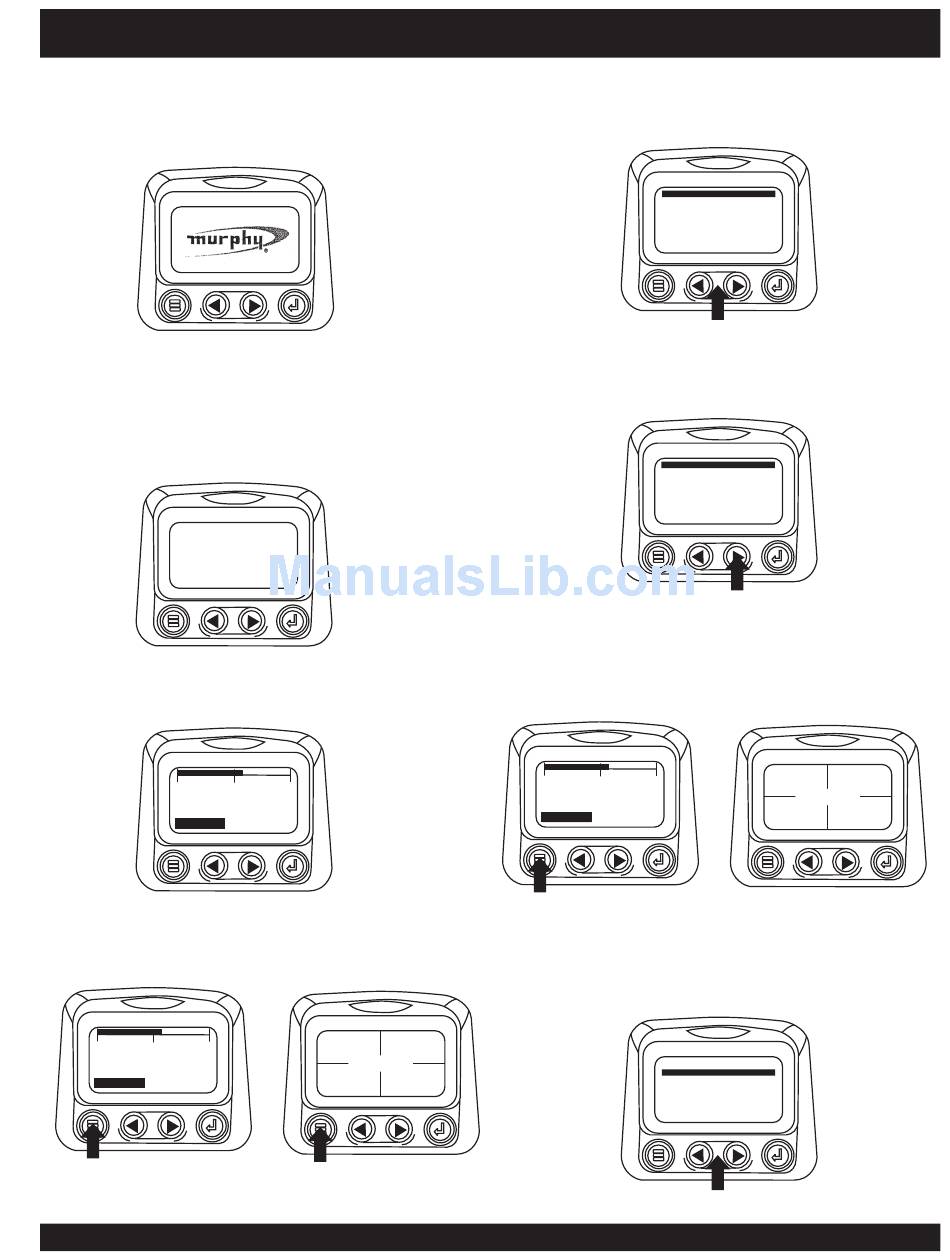

First Time Start Up
1.
When power is first applied to the diagnostic display,
the "Logo" is displayed.
2.
The "Wait to Start" message will be displayed for
engines with a pre-startup sequence. Once the "Wait to
Start" message is no longer displayed the operator may
start the engine. Note: Displays only when SAE J1939
message is supported by engine manufacturer.
WAIT TO
START
PREHEAT
3.
Once the engine has started the single engine parameter
is displayed.
0
1800 RPM
ENG RPM
Main Menu Navigation
1.
Starting at the single or four engine parameter display,
touch "Menu".
0
1500
3000
1800 RPM
ENG RPM
COOL
TEMP
DCA-220SSJ/SSJU — OPERATION AND PARTS MANUAL — REV. #0 (02/04/14) — PAGE 21
DCA-220SSJ/SSJU — DIAGNOSTIC DISPLAY
3000
1500
TEMP
COOL
1000 RPM
98%
LOAD RPM
ENG RPM
14.2
57 PSI
BATT VOLT
OIL PRES
2.
The first seven items of the "Main Menu" will be
displayed. Touching the "Arrow Buttons" will scroll through
the menu selection.
GO TO 1-UP DISPLAY
LANGUAGES
STORED CODES
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
3.
Touching the right arrow button will scroll down to reveal
the last items of "Main Menu" screen highlighting the
next item down.
ADJUST BACKLIGHT
ADJUST CONTRAST
UTILITIES
4.
Touch the Arrows" to scroll to the desired menu item or
touch "Menu" to exit the Main menu and return to the
engine parameter display.
0
3000
1500
1800 RPM
COOL
TEMP
ENG RPM
Selecting a Language
1.
Starting at the main menu display use the "Arrows to
scroll to the "Language" menu and once highlighted touch
the "Enter" button.
GO TO 1-UP DISPLAY
LANGUAGES
STORED CODES
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
G
98%
1000 RPM
ENG RPM
LOAD RPM
14.2
57 PSI
BATT VOLT
OIL PRES
G
1
