Section 1 - Product Overview
D-Link DSL-2740R

Hardware Overview

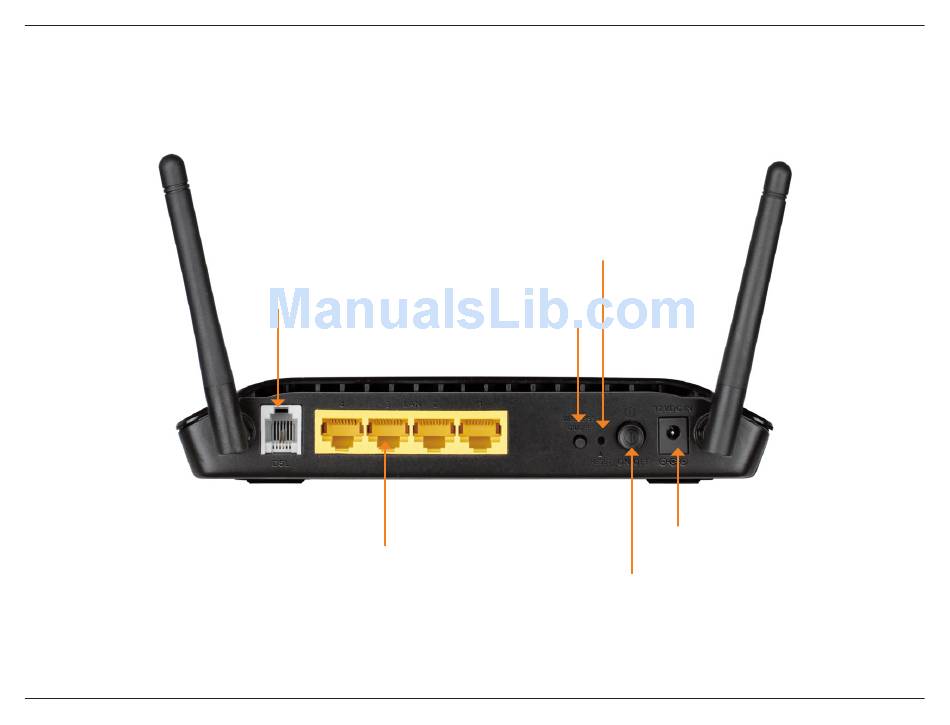

Connections

ADSL PORT
Use the ADSL cable to connect to your telephone
line (RJ-11 port).
FOUR ETHERNET PORTS
Use the Ethernet ports to connect the
router to your Ethernet LAN or Ethernet
devices.
RESET BUTTON
To manually reset the device, depress the
button with the power on for between ten
and fifteen seconds.
WIRELESS ON/OFF
SWITCH
Turns wireless
function on or off.
POWER INSERT
Use the adapter shipped with the router
to connect to a power source.
POWER BUTTON
Press this button to turn the unit on
or off.
