Pro-Form REBEL User Manual page 7

7. Note: The assistance of another person is recom-
mended for this step.

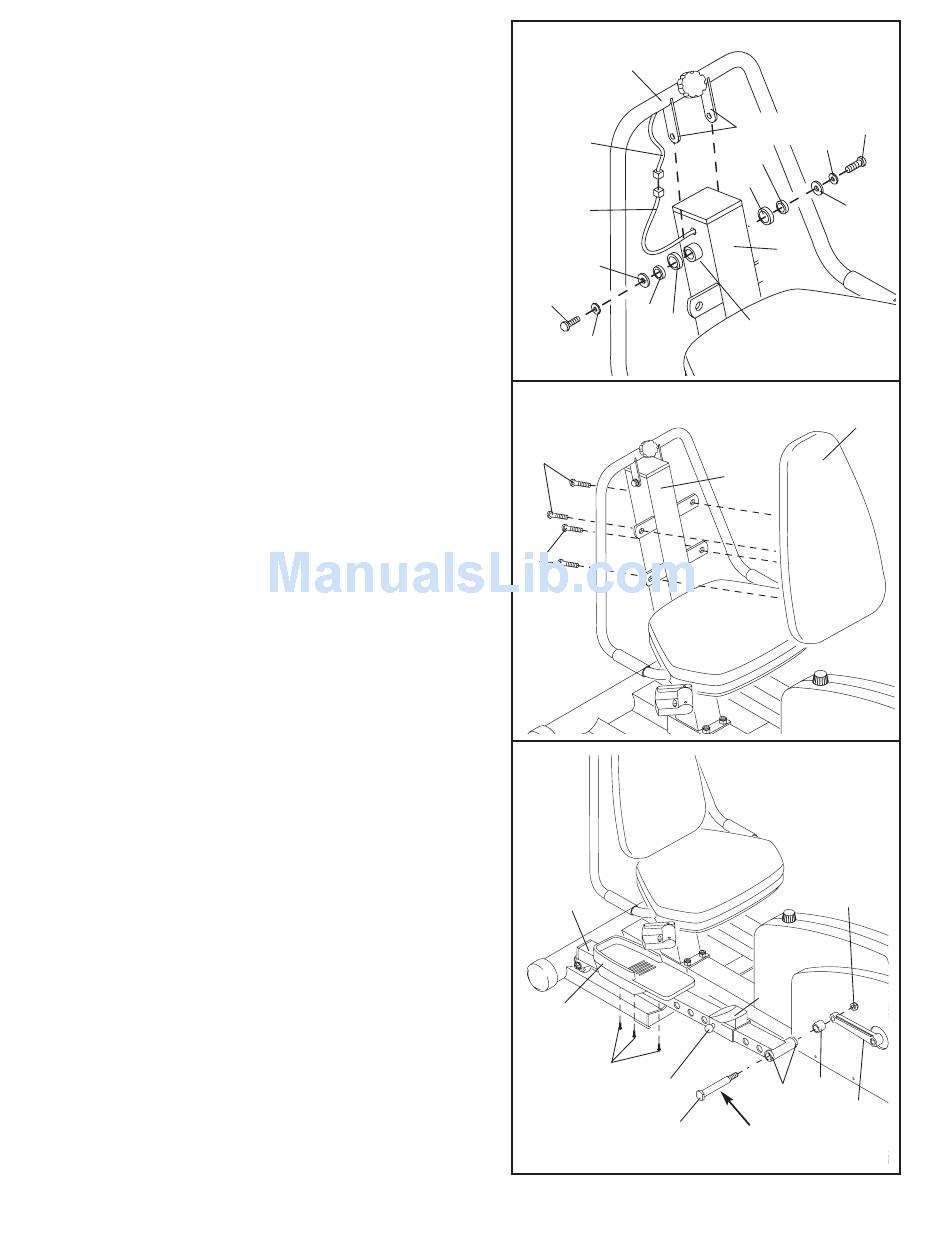

While another person holds the Handlebar (7) in the
position shown, connect the Handlebar Wire (87) to
the Extension Wire (49) extending from the Upright (2).
Next, slide a Plastic Sleeve (53) onto each of the indi-
cated shafts on the Upright (2).
Slide an M10 Washer (71) onto each of the M10 x
25mm Button Head Bolts (85). Next, insert the Bolts
through the brackets on the Handlebar (7) and then
slide an M16 Flat Washer (84) and a Metal Handlebar
Spacer (83) onto each Bolt. Insert the Bolts into the
shafts on the Upright (2) and tighten them with the
included allen wrench. Be careful not to overtighten
the Bolts; the Handlebar must pivot easily.
8. Attach the Backrest (40) to the indicated brackets on
the Upright (2) with four M6 x 16mm Seat Screws (28).
9. Identify the Left Pedal Leg (3) by looking at the
Lock Pin (90) on the pre-assembled Toe Pedal (36).
The Lock Pin must be on the outside when the
Pedal Leg is mounted.
Attach a Pedal (29) to the Left Pedal Leg (3) with three
M4 x 16mm Tapping Screws (30).
Using the included grease pack, lubricate a Pedal Bolt
(8). Insert the Pedal Bolt through the two indicated
Bushings (39). Next, slide a Plastic Pedal Spacer (42)
onto the Pedal Bolt and insert the Pedal Bolt into the
hole in the left Crank Arm (10). Tighten a 1/2" Nylon
Locknut (9) onto the Pedal Bolt.
Repeat this procedure for the Right Pedal Leg (70, not
shown).
7
7
87
49
84
85
83
71
8
28
28
9
3
29
30
7
Bracket
71
83
53
2
53
Shaft
2
36
90 42
39
8
Lubricate
85
84
40
9
10
