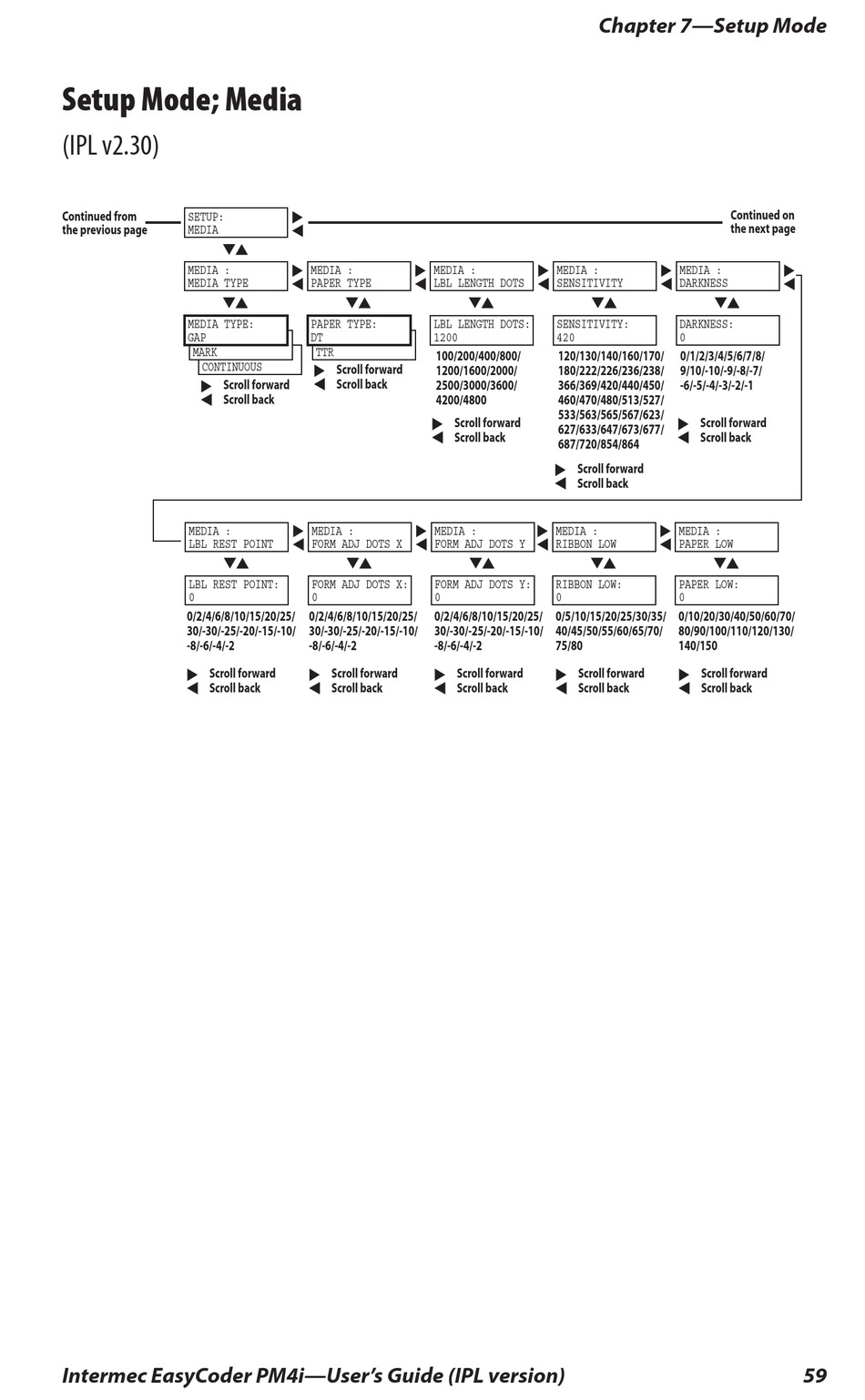

Setup Mode; Media
(IPL v2.30)
Continued from
SETUP:
the previous page
MEDIA
MEDIA :
MEDIA TYPE
MEDIA TYPE:
GAP
CONFIG:
MARK
CONFIG:
CONTINUOUS
Scroll forward
Scroll back
MEDIA :
LBL REST POINT
LBL REST POINT:
0
0/2/4/6/8/10/15/20/25/
30/-30/-25/-20/-15/-10/
-8/-6/-4/-2
Scroll forward
Scroll back
Intermec EasyCoder PM4i—User's Guide (IPL version)
MEDIA : MEDIA :
PAPER TYPE LBL LENGTH DOTS
PAPER TYPE: LBL LENGTH DOTS:
DT 1200
CONFIG:
TTR
100/200/400/800/
Scroll forward
1200/1600/2000/
Scroll back
2500/3000/3600/
4200/4800
Scroll forward
Scroll back
MEDIA : MEDIA :
FORM ADJ DOTS X FORM ADJ DOTS Y
FORM ADJ DOTS X: FORM ADJ DOTS Y:
0 0
0/2/4/6/8/10/15/20/25/ 0/2/4/6/8/10/15/20/25/
30/-30/-25/-20/-15/-10/ 30/-30/-25/-20/-15/-10/
-8/-6/-4/-2 -8/-6/-4/-2
Scroll forward Scroll forward
Scroll back Scroll back
Chapter 7—Setup Mode
MEDIA : MEDIA :
SENSITIVITY DARKNESS
SENSITIVITY: DARKNESS:
420 0
120/130/140/160/170/ 0/1/2/3/4/5/6/7/8/
180/222/226/236/238/ 9/10/-10/-9/-8/-7/
366/369/420/440/450/ -6/-5/-4/-3/-2/-1
460/470/480/513/527/
533/563/565/567/623/
Scroll forward
627/633/647/673/677/
Scroll back
687/720/854/864
Scroll forward
Scroll back
MEDIA : MEDIA :
RIBBON LOW PAPER LOW
RIBBON LOW: PAPER LOW:
0 0
0/5/10/15/20/25/30/35/ 0/10/20/30/40/50/60/70/
40/45/50/55/60/65/70/ 80/90/100/110/120/130/
75/80 140/150
Scroll forward Scroll forward
Scroll back Scroll back
Continued on
the next page
