ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .

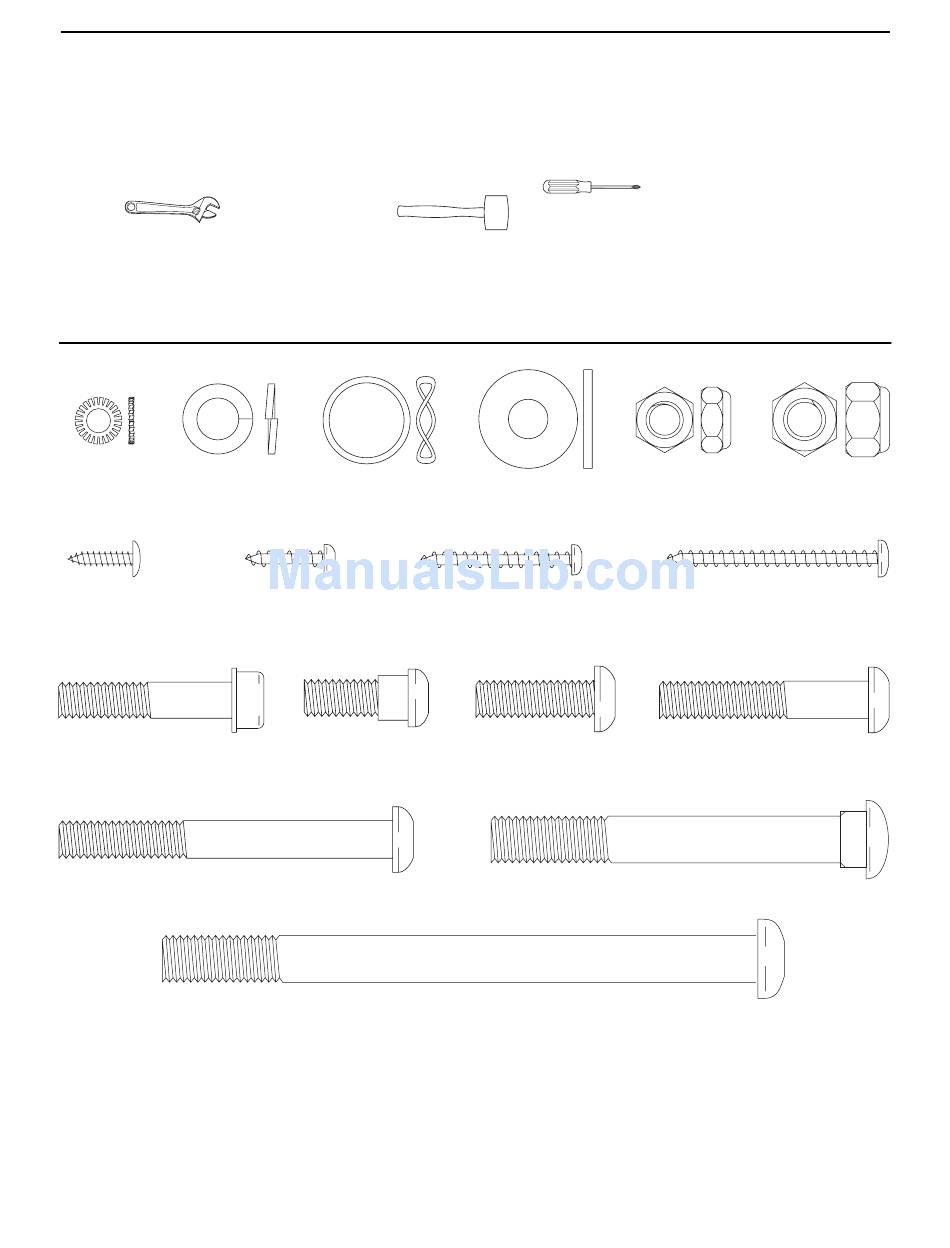

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 20 and 21. The number follow-
ing the key number is the quantity needed for assembly. Note: Some small parts may have been preassem-
bled. If a part is not in the parts bag, check to see if it has been preassembled.
M8 Split
M8 Washer M8 Jamnut M10 Nylon
Star Washer Wave Washer
Locknut (81)–2
(112)–8 Washer (90)–3 (111)–2 (88)–6 (79)–5
M4 x 32mm
M4 x 16mm
M4 x 14mm Round Head Round Head M4 x 45mm
Screw (105)–6 Screw (108)–2
Screw (104)–8 Screw (101)–8
M8 x 23mm Shoulder M8 x 43mm Button
M8 x 23mm Button
Hub Screw (87)–8
Screw (115)–4 Screw (84)–4 Bolt (78)–4
M8 x 69mm Button M10 x 80mm Carriage
Bolt (82)–2
Bolt (80)–1
M10 x 127mm Button Screw (83)–2
5
