IN134UST/IN136UST User's Manual

Views of Projector Parts

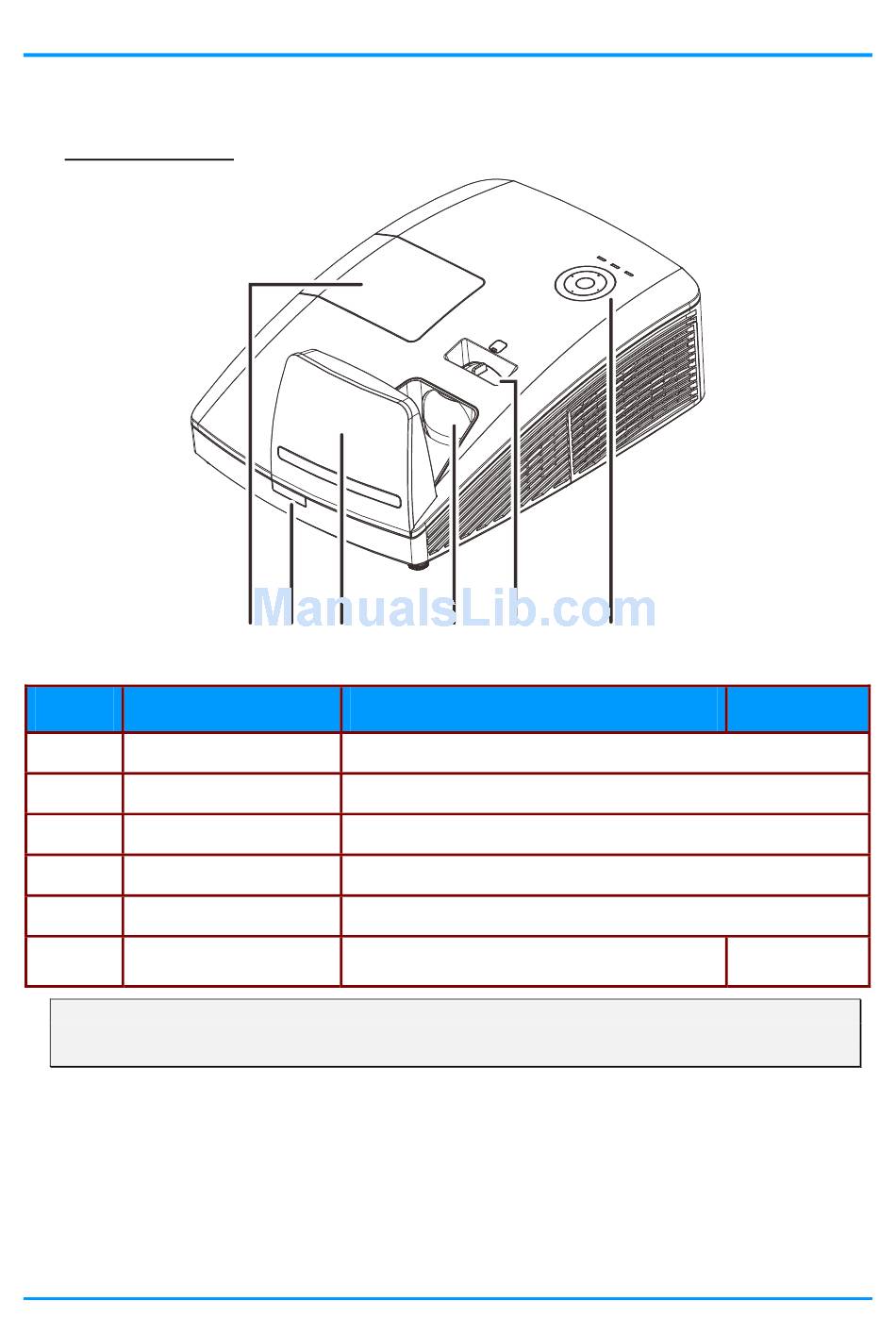

Front-right View

I
TEM
1.
Lamp cover
2.
IR receiver
3.
Aspheric mirror
4.
Lens
5.
Focus ring
6.
Function keys
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
1 2 3
L
ABEL
Remove cover to replace lamp module
Receives IR signal from remote control
Reflects images
Projection Lens
Focuses the projected image
See Top view—On-screen Display (OSD)
buttons and LEDs.
4 5
D
ESCRIPTION
— 2 —
6
S
EE PAGE
3
