IN134UST/IN136UST User's Manual

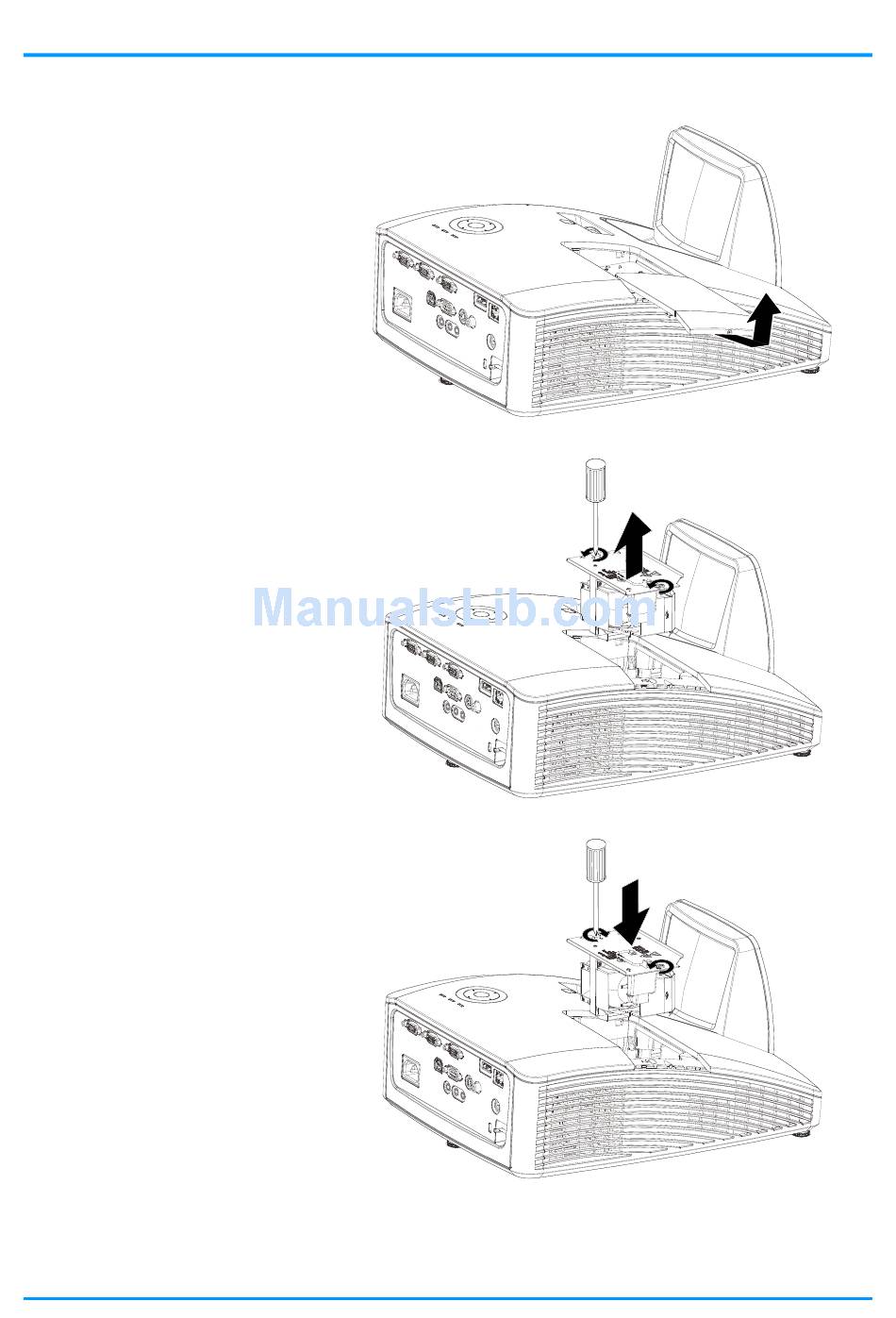

2.
Remove the lamp
compartment cover.
3.
Loosen the two screws
from the lamp module.
4.
Lift the module handle up.
5.
Pull firmly on the module
handle to remove the lamp
module.
Reverse steps 1 to 5 to
6.
install the new lamp
module.
While installing, align the
lamp module with the
connector and ensure it is
level to avoid damage.
Note: The lamp module
must sit securely in place
and the lamp connector
must be connected
properly before tightening
the screws.
