7. BASIC SENSOR INSTALLATION

Each accessory sensor is packaged with its
own set of installation instructions specific to
the model of sensor.
Refer to the sensor's instructions for details on
installing, operating, and testing of the sensor.
Following are basic instructions for installing
two popular DVS-1200 accessories: The
Model DXS-10 Wireless Remote Keypad and
the Model DXS-31 Door/Window Transmitter.

DXS-10 WIRELESS KEYPAD

The DXS-10 is used to remotely command the
Console.
The keypad can be simply set on a table or
mounted to a flat surface.
TABLE-TOP USE
Four anti-mar pads are provided as scratch
deterrent "feet" for the keypad.
NOTE: Do not use the adhesive "feet" if the
keypad is going to be wall mounted.
Peel off the adhesive tape backing on the
"feet" and stick them to the back of the
keypad.
The wireless keypad can be used as a
portable keypad. Because of the hourly
supervisory transmissions, if the unit is taken
out of range from the Console for more than
eight hours, the Console will indicate "radio
trouble" for the keypad. The keypad's sensor
number can be programmed for
"non-supervised" if required. See the
"Advanced Programming" section of this
manual.
WALL MOUNT USE
The wireless keypad can be wall mounted in a
convenient location.
Open the keypad by inserting a small
screwdriver in one of the top slots in the
keypad case. Gently twist the screwdriver until
the case pops open.
Attach the rear case to the wall using the two
screws provided.
NOTE: For best signal transmission, the keypad
should be mounted at least three feet above
ground level.
Hook the top edge of the keypad case
together and snap the keypad onto the rear
case.
WARNING: The wireless keypad is designed for
indoor use only.

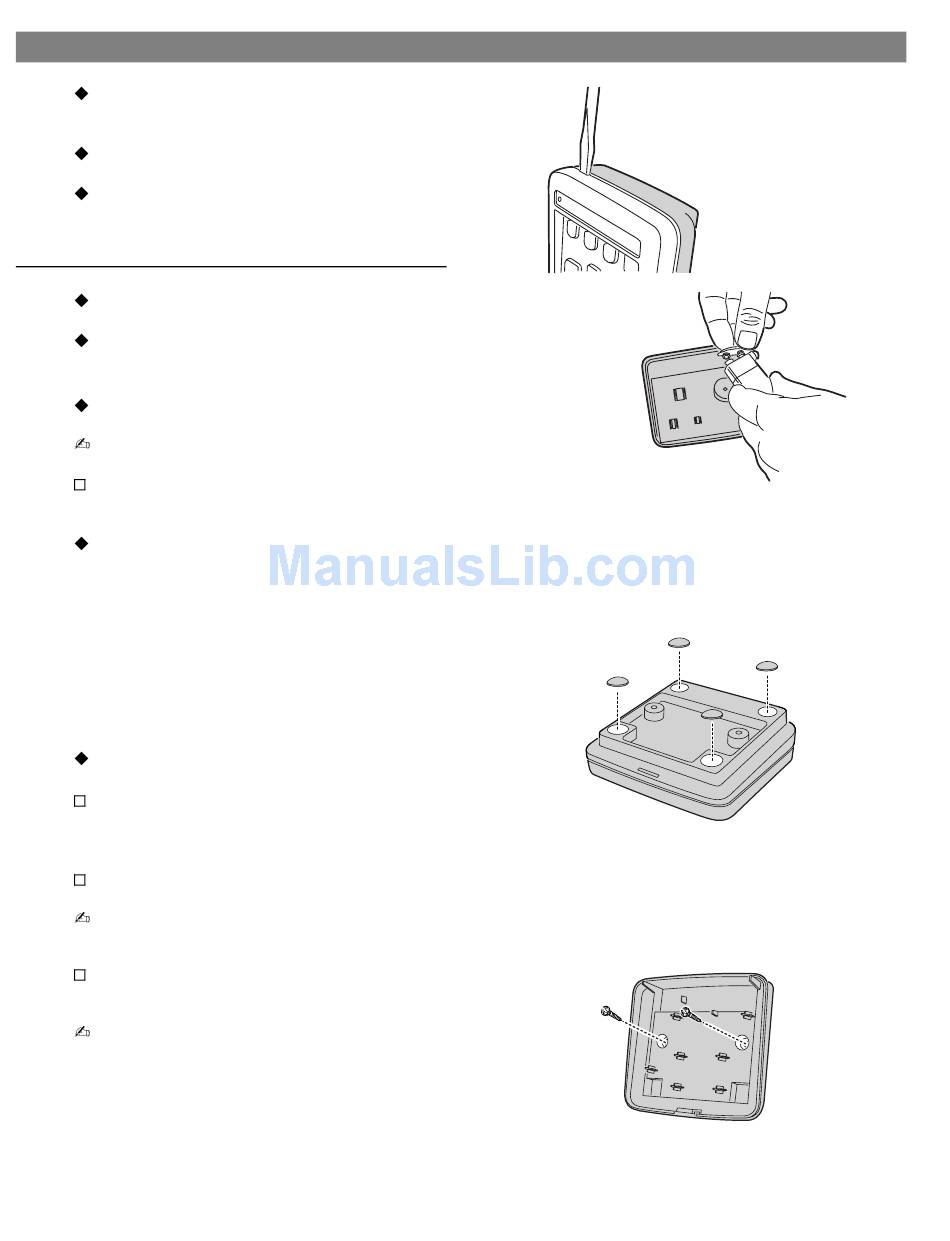

14
FROM TOP OF CASE TWIST
SCREWDRIVER BETWEEN
CASE HALVES UNTIL IT
POPS OPEN
CONNECT BATTERY
TO BATTERY CLIPS
USE THE FOUR SCRATCH
DETERRENT PADS PROVIDED
FOR TABLE-TOP USE
ATTACH REAR CASE TO WALL
WITH THE TWO SCREWS PROVIDED
MOUNT AT A CONVENIENT
LOCATION NEAR PRIMARY
ENTRY/EXIT DOOR
