Replacing the
skimmer assembly
A-61730 August 2012
Even though the rollers in the skimmer assembly last up to 600,000
scans each, they will wear out over time, which may result in document
slippage or multifeeding. To order skimmer assemblies, see the section
entitled "Supplies and consumables"
1. Shut down the host PC.
2. Power off the scanner.
3. Raise the auto/manual feed lever to the 'M' position.
4. Open the scanner transport cover.
5. Optional: Raise the skimmer flag retention lever and remove the
skimmer flag.
6. Using your left hand, pull the spring-loaded, green lever toward the
left. Secure it behind the lock pin.

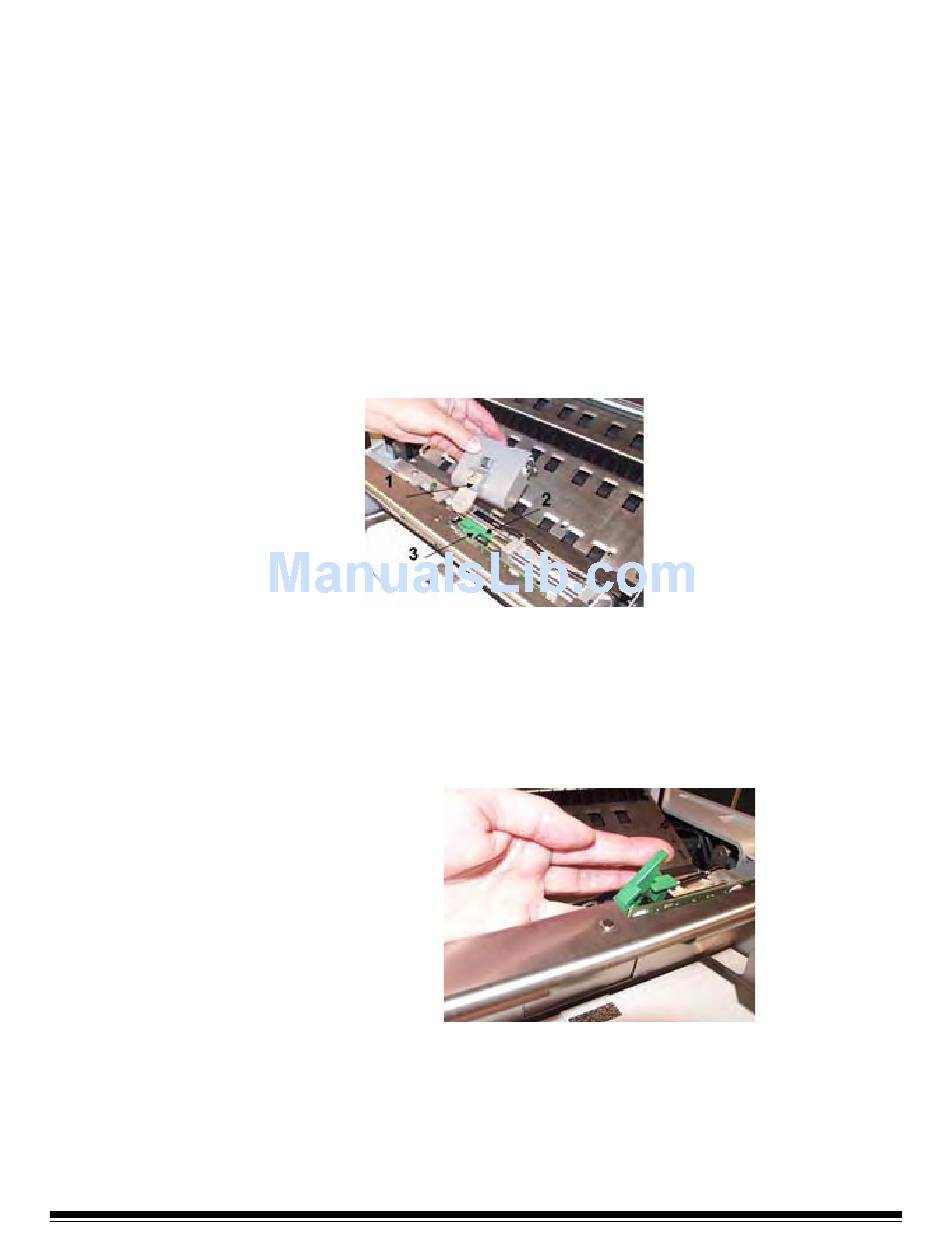

7. Slide the skimmer assembly to the left until it is loose and remove it.
1 Skimmer
2 Skimmer Flag Retention Lever
3 Skimmer Flag
NOTE: If the skimmer flag needs to be replaced, lift the skimmer
flag retention lever and remove the flag.
• Lift the flag retention level.
15
