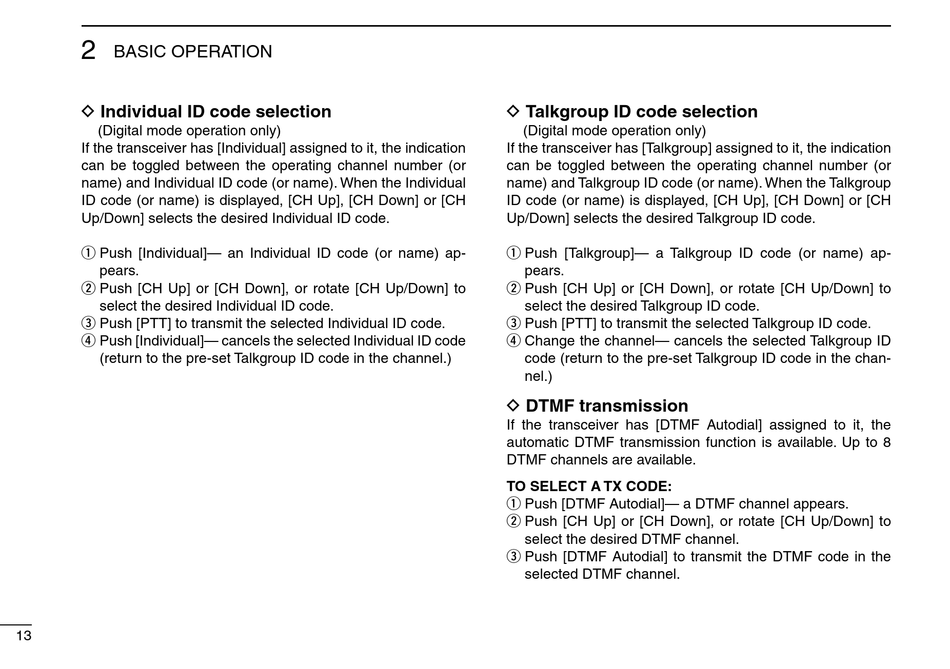

D Individual Id Code Selection; D Talkgroup Id Code Selection; D Dtmf Transmission - Icom IF1721/D Instruction Manual

2
BASIC OPERATION

D Individual ID code selection

(Digital mode operation only)
If the transceiver has [Individual] assigned to it, the indication
can be toggled between the operating channel number (or
name) and Individual ID code (or name). When the Individual
ID code (or name) is displayed, [CH Up], [CH Down] or [CH
Up/Down] selects the desired Individual ID code.
Push [Individual]— an Individual ID code (or name) ap-
q
pears.
Push [CH Up] or [CH Down], or rotate [CH Up/Down] to
w
select the desired Individual ID code.
Push [PTT] to transmit the selected Individual ID code.
e
Push [Individual]— cancels the selected Individual ID code
r
(return to the pre-set Talkgroup ID code in the channel.)
13

D Talkgroup ID code selection

(Digital mode operation only)
If the transceiver has [Talkgroup] assigned to it, the indication
can be toggled between the operating channel number (or
name) and Talkgroup ID code (or name). When the Talkgroup
ID code (or name) is displayed, [CH Up], [CH Down] or [CH
Up/Down] selects the desired Talkgroup ID code.
Push [Talkgroup]— a Talkgroup ID code (or name) ap-
q
pears.
Push [CH Up] or [CH Down], or rotate [CH Up/Down] to
w
select the desired Talkgroup ID code.
Push [PTT] to transmit the selected Talkgroup ID code.
e
Change the channel— cancels the selected Talkgroup ID
r
code (return to the pre-set Talkgroup ID code in the chan-
nel.)

D DTMF transmission

If the transceiver has [DTMF Autodial] assigned to it, the
automatic DTMF transmission function is available. Up to 8
DTMF channels are available.
TO SELECT A TX CODE:
Push [DTMF Autodial]— a DTMF channel appears.
q
Push [CH Up] or [CH Down], or rotate [CH Up/Down] to
w
select the desired DTMF channel.
Push [DTMF Autodial] to transmit the DTMF code in the
e
selected DTMF channel.
