5
2

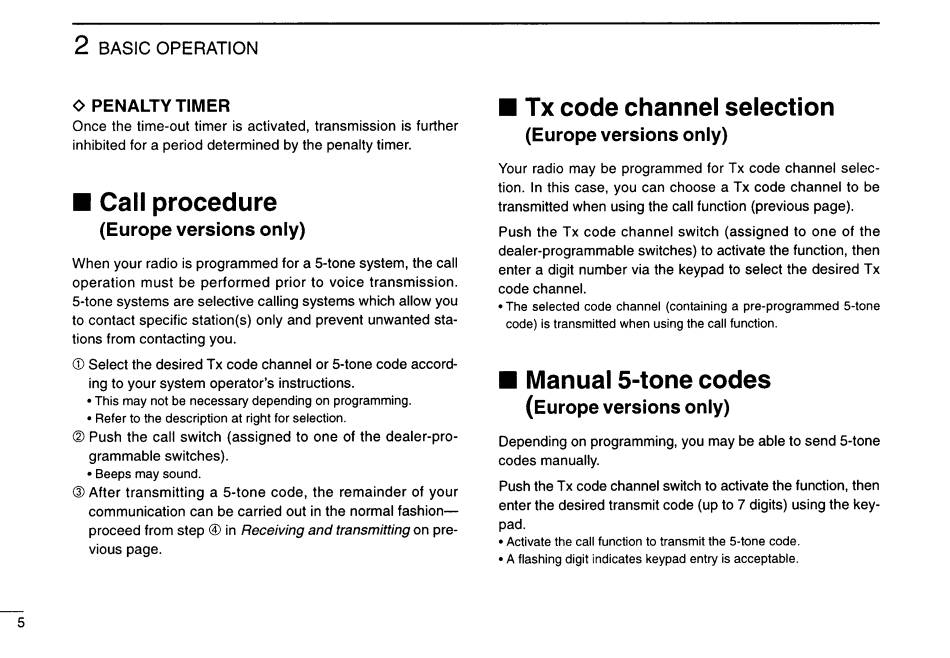

BASIC OPERATION
<>
PENALTY TIMER
Once the time-out timer is activated, transmission is further
inhibited for a period determined by the penalty timer.
• Call procedure
(Europe versions only)
When your radio is programmed for a 5-tone system, the call
operation must be performed prior to voice transmission.
5-tone systems are selective calling systems which allow you
to contact specific station(s) only and prevent unwanted sta-
tions from contacting you.
<D
Select the desired Tx code channel or 5-tone code accord-
ing to your system operator's instructions.
• This may not be necessary depending on programming.
• Refer to the description at right for selection.
@
Push the call switch (assigned to one of the dealer-pro-
grammable switches).
• Beeps may sound.
@
After transmitting a 5-tone code, the remainder of your
communication can be carried out in the normal fashion-
proceed from step
@
in Receiving and transmitting on pre-
vious page.
• Tx code channel selection
(Europe versions only)
Your radio may be programmed for Tx code channel selec-
tion. In this case, you can choose a Tx code channel to be
transmitted when using the call function (previous page).
Push the Tx code channel switch (assigned to one of the
dealer-programmable switches) to activate the function, then
enter a digit number via the keypad to select the desired Tx
code channel.
• The selected code channel (containing a pre-programmed 5-tone
code) is transmitted when using the call function.
• Manual 5-tone codes
(Europe versions only)
Depending on programming, you may be able to send 5-tone
codes manually.
Push the Tx code channel switch to activate the function, then
enter the desired transmit code (up to 7 digits) using the key-
pad.
• Activate the call function to transmit the 5-tone code.
• A flashing digit indicates keypad entry is acceptable.
