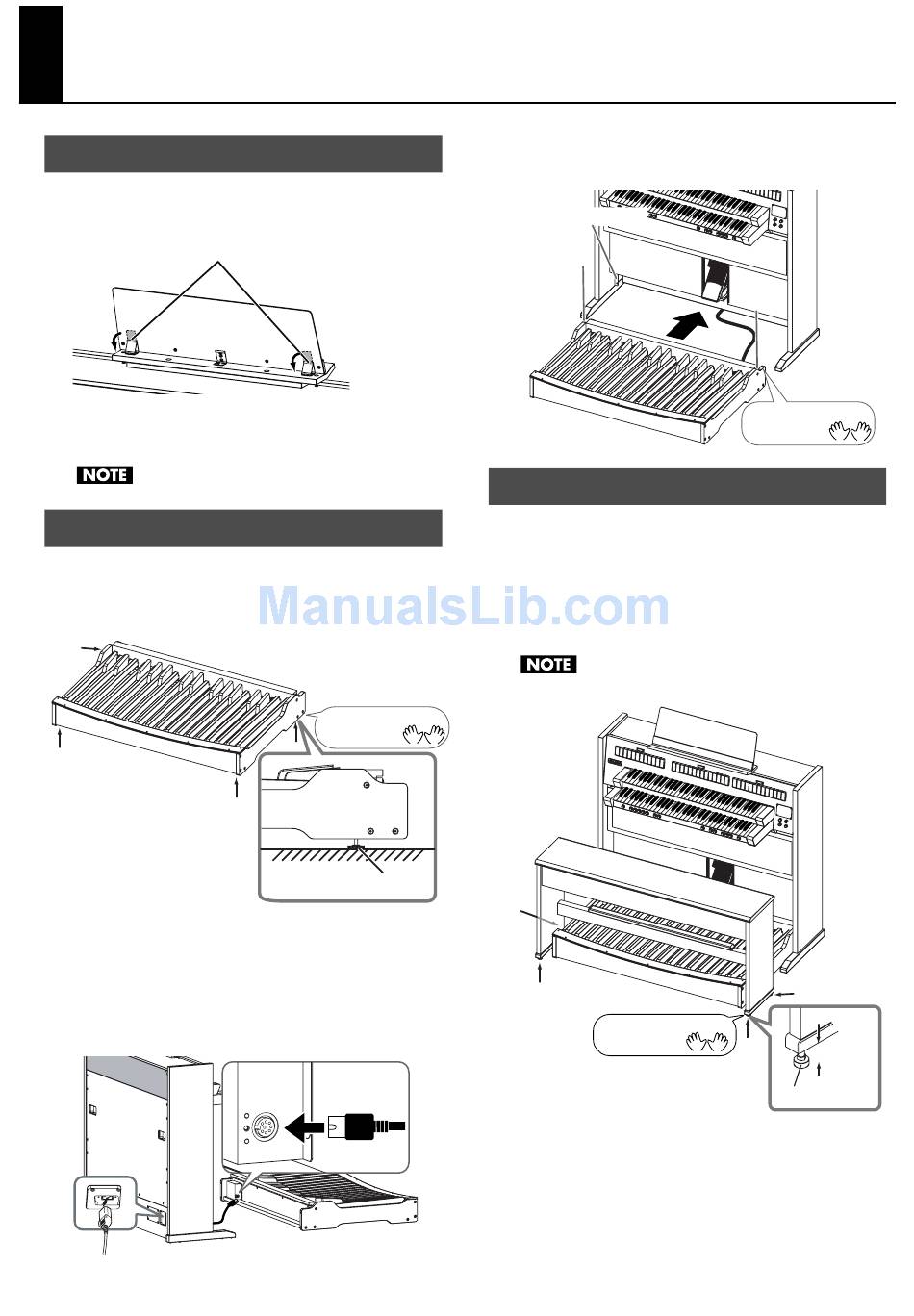

Before You Start Playing

Using the music stand

1.
Gently raise the music stand, then secure it in place as
shown in the figure.
fig.Music-Rest.eps
Metal Fittings
2.
To collapse the stand, fold in the metal fittings while
supporting the stand with both hands and gently fold
down the stand.
Do not pull down the music stand.

Connecting the pedalboard

1.
Adjusting the pedalboard adjuster.
Turn the pedalboard adjuster (four locations) to lower it until the
pedalboard does not wobble.
fig.Pedalboard-2.eps
* If there is a gap between the pedalboard and the floor, the
pedalboard may be damaged.
* In particular when placing the instrument on carpet, adjust this so
that the pedalboard firmly contact the floor.
2.
Connect the cable extending from the bottom of the
main unit to the PEDAL OUT jack of the pedalboard and
connect the power cord.
fig.Pedalboard-1.eps
Plug in upward
18
3.
fig.Pedalboard-1.eps

Placing the bench

1.
fig.Pedalboard-4.eps
Please don't get your
fingers pinched.
Adjuster
Place the pedalboard so that the part of the pedalboard
marked (3) in the illustration contacts the L-shaped
fixtures on the inside of the left and right side boards.
L-shaped fixture
(3) (3)
Place the organ bench over the pedalboard as shown in
the illustration.
As shown in the illustration, position the bench so that the side with
the footrest faces the organ, and put the bench in place, taking care
that the footrest does not touch the pedalboard.
Turn the bench adjusters (four locations) to lower them, adjusting
the height so that the bench does not wobble.
Do not adjust the adjusters more than 25 mm (1inch)
from the floor.
Please don't get your
fingers pinched.
(3) (3)
Please don't get your
fingers pinched.
less than
25 mm
(1 inch)
Adjuster
