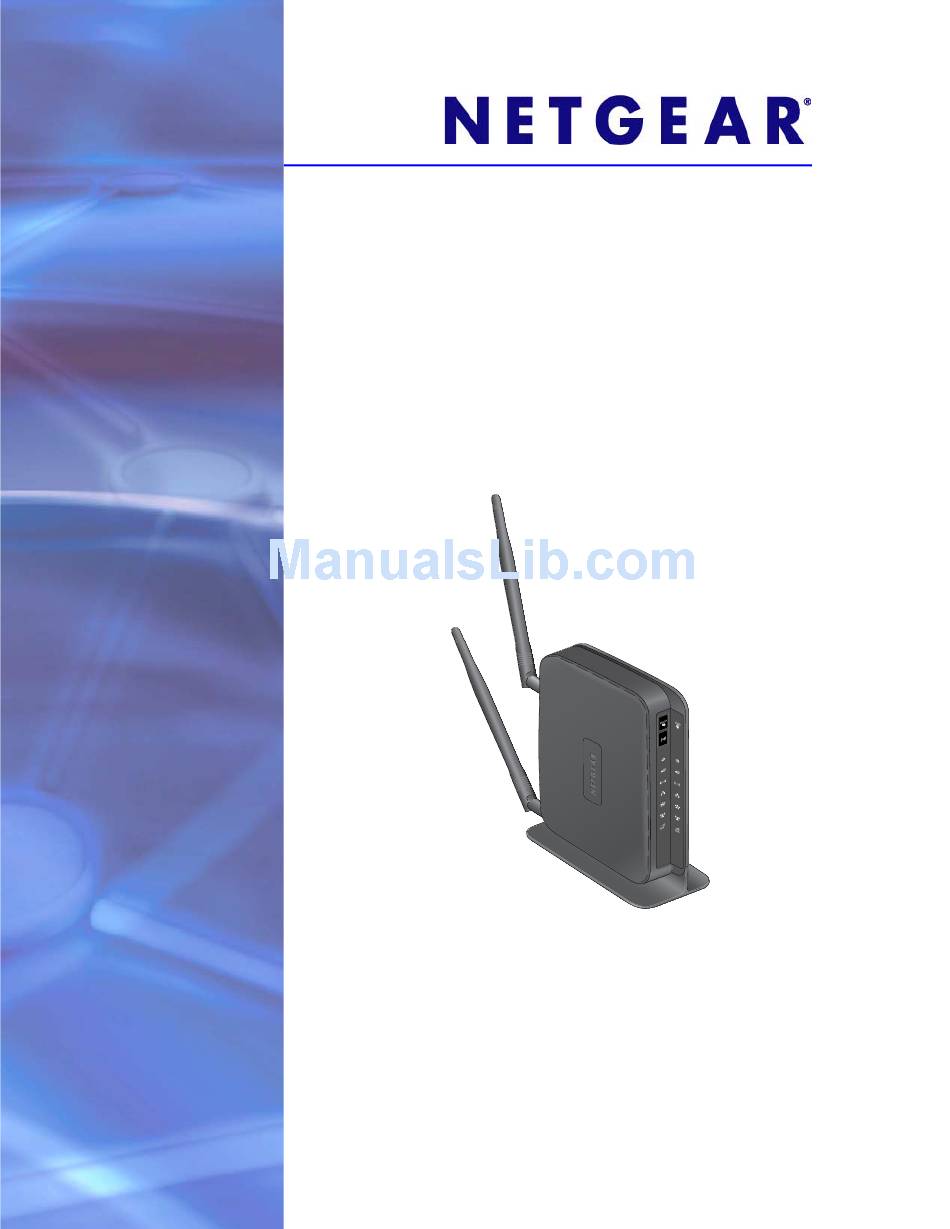

NETGEAR MBR1515 User Manual

NETGEAR MBR1515 User Manual

Lte broadband 11n wireless router
Hide thumbs Also See for MBR1515:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
350 East Plumeria Drive
San Jose, CA 95134
USA
September 2012
202-11101-01
v1.0
LTE Broadband 11n Wireless
Router MBR1515
User M anua l

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR MBR1515

Summary of Contents for NETGEAR MBR1515

  • Page 1 LTE Broadband 11n Wireless Router MBR1515 User M anua l 350 East Plumeria Drive San Jose, CA 95134 September 2012 202-11101-01 v1.0...

  • Page 2: Technical Support

    © 2012 All rights reserved. Technical Support Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or for more information about the topics covered in this manual, visit the Support website at http://support.netgear.com/general/contact/default.aspx.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Connect to the Internet Hardware Features..........7 Router Front Panel .
  • Page 4 LTE Broadband 11n Wireless Router MBR1515 View Attached Devices........46 Back Up, Restore, or Erase Your Settings .
  • Page 5 LTE Broadband 11n Wireless Router MBR1515 Appendix A Supplemental Information Factory Default Settings ........83 Technical Specifications .

  • Page 6: Chapter 1 Connect To The Internet

    Connect to the Internet This chapter describes how to configure your LTE Broadband 11n Wireless Router MBR1515 Internet connection. • Hardware Features • Log In to Your Router • Manually Configure Your Internet Settings Note: For help with installation, see the LTE Broadband 11n Wireless Router MBR1515 Installation Guide.

  • Page 7: Hardware Features

    LTE Broadband 11n Wireless Router MBR1515 Hardware Features This section outlines the physical aspects of your LTE Broadband 11n Wireless Router. Position your router upright. Place the router near an AC power outlet in a location where you can connect the cables you need for your home network. The router must also be located where you can receive a strong mobile broadband signal while indoors if you are planning to connect to the Internet using mobile broadband.
  • Page 8 LTE Broadband 11n Wireless Router MBR1515 Table 1 describes each LED and button on the front panel of the router. Table 1. LED descriptions Activity Description Press the WPS button to open a 2-minute window for the router to connect with other WPS-enabled devices.

  • Page 9: Router Back Panel

    LTE Broadband 11n Wireless Router MBR1515 Table 1. LED descriptions (continued) Activity Description Signal Quality Solid blue Excellent coverage detected. Solid green Good coverage detected. Solid red Low coverage detected. No coverage detected. Restore Factory Locate the small hole outlined in red on the side of the router. Insert a paperclip into the hole Settings and press for 6 seconds.

  • Page 10: Router Label

    LTE Broadband 11n Wireless Router MBR1515 Router Label The label on the side of the router shows the router’s MAC address, serial number, security PIN, IMEI or ESN number, and factory default login information. It also contains the SSID and passphrase that are unique to each router.

  • Page 11: Log In To Your Router

    LTE Broadband 11n Wireless Router MBR1515 Log In to Your Router The router is preinstalled with an active SIM card and works out of the box. No setup is required for connecting to a 4G network. Use your web browser to log in to the router to view or change its settings. Links to knowledge base and documentation are also available on the router main menu.
  • Page 12 You can disable this automatic checking and updating feature during future logins by clearing the Check for Updated Firmware Upon Log-in check box, but NETGEAR recommends that you keep this feature enabled to ensure that your router is using the latest updated firmware.

  • Page 13: Manually Configure Your Internet Settings

    LTE Broadband 11n Wireless Router MBR1515 Manually Configure Your Internet Settings For you to connect to the network, an active broadband service account is required. Contact your ISP for your user name, password, and the network name. You must also configure...
  • Page 14 LTE Broadband 11n Wireless Router MBR1515 • Apply. Apply the changes that you made. • Cancel. Discard changes. Table 2. Internet connection settings Fields and Check Boxes Description Internet Connection Mode The choices are: • Always use an Ethernet connection •...

  • Page 15: Mobile Broadband Settings

    LTE Broadband 11n Wireless Router MBR1515 Mobile Broadband Settings  To manually configure your mobile broadband Internet settings: Log in to the router as described in Log In to Your Router on page 11. From the main menu, select Mobile Broadband Settings.
  • Page 16 LTE Broadband 11n Wireless Router MBR1515 Table 3. Mobile Broadband settings Fields and Check Boxes Description User Name Internet account login user name. Password Internet account password for authentication. Country Select User Defined from the drop-down list. Internet Service Provider Select User Defined from the drop-down list.

  • Page 17: Ethernet Broadband Settings

    LTE Broadband 11n Wireless Router MBR1515 Ethernet Broadband Settings  To manually configure your Ethernet Broadband Internet settings: Log in to the router as described in Log In to Your Router on page 11. From the main menu, select Ethernet Broadband Settings.
  • Page 18 LTE Broadband 11n Wireless Router MBR1515 Table 4. Ethernet broadband settings when login required Fields and Check Boxes Description Internet Service Provider Select the service provided by your ISP. Other (PPPoE) is the most common. Login This login name is usually the name that you use in your email address.
  • Page 19 LTE Broadband 11n Wireless Router MBR1515 Table 4. Ethernet broadband settings when login required (continued) Fields and Check Boxes Description Connection Mode Set the connection mode to Dial on Demand, Always On, or Manually Connect. • With the default setting, Dial on Demand, a PPPoE connection...
  • Page 20 LTE Broadband 11n Wireless Router MBR1515 MBR1515 Connect to the Internet...
  • Page 21 LTE Broadband 11n Wireless Router MBR1515 Table 5. Ethernet broadband settings fields when login not required Fields and Check Boxes Description Account Name (If Required) This name is also known as the host name or system name. For most users, type your account name or user name in this field. For example, if your main mail account is JerAB@ISP.com, then type...
  • Page 22 The following buttons are available: • Apply. Apply the changes that you made. • Cancel. Discard changes. • Test. Connect to the NETGEAR website. If you connect successfully, your settings work, and you can click Logout to exit these screens. Connect to the Internet...

  • Page 23: Chapter 2 Wireless Network Configuration

    For a wireless connection, the SSID (also known as the wireless network name), and the wireless security settings must be the same for the router and wireless computers or wireless adapters. NETGEAR strongly recommends that you use wireless security. The router is preconfigured with WPA-PSK/WPA2-PSK mixed mode and uses a unique SSID and passphrase.

  • Page 24: Plan Your Wireless Network

    LTE Broadband 11n Wireless Router MBR1515 Plan Your Wireless Network For compliance and compatibility between similar products in your area, the operating channel and region must be set correctly. To configure the wireless network, you can either specify the wireless settings, or you can use Wi-Fi Protected Setup (WPS) to automatically set the SSID and implement WPA/WPA2 security.

  • Page 25: Wireless Security Options

    LTE Broadband 11n Wireless Router MBR1515 Wireless Security Options Indoors, computers can connect over 802.11n wireless networks at a maximum range of up to 300 feet. Such distances can allow others outside your immediate area to access your network. Unlike wired network data, your wireless data transmissions can extend beyond your walls and can be received by anyone with a compatible adapter.

  • Page 26: Manually Configure Your Wireless Settings

    LTE Broadband 11n Wireless Router MBR1515 Manually Configure Your Wireless Settings Note: If you use a wireless computer to change the wireless network name (SSID) or wireless security, you are disconnected when you click Apply. To avoid this occurrence, connect your computer directly to the router with an Ethernet cable when you make these changes.

  • Page 27: Configure Wep

    LTE Broadband 11n Wireless Router MBR1515 Settings Description Security Options None Use this setting to establish wireless connectivity before implementing wireless security. NETGEAR strongly recommends that you implement wireless security. Use encryption keys and data encryption for data security. You can select 64-bit or 128-bit encryption.

  • Page 28: Configure Wpa, Wpa2, Or Wpa + Wpa2

    LTE Broadband 11n Wireless Router MBR1515 • 128-bit. Enter 26 hexadecimal digits (any combination of 0–9, a–f, or A–F). Enter the encryption keys. You can manually or automatically program the four data encryption keys. These values must be identical on all computers and access points in your network: •...

  • Page 29: Use Push 'N' Connect (Wps) To Configure Your Wireless Network

    WPS considerations: • NETGEAR’s Push 'N' Connect feature is based on the WPS standard. All other Wi-Fi-certified and WPS-capable products should be compatible with NETGEAR products that implement Push 'N' Connect.

  • Page 30: Wps Pin Entry

    WPS PIN Entry Any wireless computer or device that connects to the router wirelessly is a client. The client must support a WPS PIN, and must have a WPS configuration utility, such as the NETGEAR Smart Wizard or Atheros Jumpstart.

  • Page 31: Add Wireless Computers That Do Not Support Wps

    LTE Broadband 11n Wireless Router MBR1515 On the router main menu, select Add WPS Client (computers that connect wirelessly to the router are clients), and then click Next. The Add WPS Client screen displays. Select the PIN Number radio button.

  • Page 32: Sim Card Pin Code

    LTE Broadband 11n Wireless Router MBR1515 • On the WPA/PSK + WPA2/PSK section of the screen, select a passphrase. • Make sure that the Keep Existing Wireless Settings check box is selected in the Advanced Wireless WPS Settings screen so that your new settings are not erased if you use WPS.

  • Page 33: Chapter 3 Filter Content

    Filter Content This chapter describes how to use the basic firewall features of the router to protect your network. • View, Select, and Save Logged Information • Block Sites and Keywords • Block Services • Scheduling • Enable Security Event Email Notification Note: For information about the advanced content filtering features port forwarding and port triggering, see...

  • Page 34: View, Select, And Save Logged Information

    LTE Broadband 11n Wireless Router MBR1515 View, Select, and Save Logged Information The router logs security-related events such as denied incoming service requests, hacker probes, and administrator logins. If you enabled content filtering in the Block Sites screen, the Logs screen can show you when someone on your network tries to access a blocked site.

  • Page 35: Log Message Examples

    LTE Broadband 11n Wireless Router MBR1515 Log Message Examples Following are examples of log messages. In all cases, the log entry shows the time stamp as Day, Year-Month-Date Hour:Minute:Second. Activation and Administration This entry indicates a power-up or reboot with initial time entry.

  • Page 36: Block Sites And Keywords

    LTE Broadband 11n Wireless Router MBR1515 Block Sites and Keywords The router provides various options for blocking Internet-based content and communications services. With its content filtering feature, the router prevents objectionable content from reaching your computers. You can control access to Internet content by screening for keywords within web addresses.
  • Page 37 LTE Broadband 11n Wireless Router MBR1515 Some examples of keyword applications are shown in the following chart. Keyword Result Block the URL http://www.badstuf.com/xxx.html. .com Only websites with other domain suffixes (such as .edu or .gov) can be viewed. . ( a period) Block all Internet browsing access.

  • Page 38: Block Services

    LTE Broadband 11n Wireless Router MBR1515 Block Services Log in to the router as described in Log In to Your Router on page 11. In the main menu, select Content Filtering > Block Services to display this screen: Select one of the following: •...

  • Page 39: Scheduling

    LTE Broadband 11n Wireless Router MBR1515 Scheduling The router uses Network Time Protocol (NTP) to obtain the current time and date from one of several network time servers on the Internet. Set Your Time Zone To localize the time for your log entries, you must...

  • Page 40: Enable Security Event Email Notification

    LTE Broadband 11n Wireless Router MBR1515 Enable Security Event Email Notification To set up the router so that you can receive logs and alerts by email, select Content Filtering > E-mail from the router menu to display the following screen: ...

  • Page 41: Chapter 4 Manage Your Network

    Manage Your Network This chapter describes how to perform network management tasks with your LTE Broadband 11n Wireless Router. • Router Status • View Attached Devices • Back Up, Restore, or Erase Your Settings • Protect Access to Your Router •...

  • Page 42: Router Status

    LTE Broadband 11n Wireless Router MBR1515 Router Status From the main menu, select Maintenance > Router Status to view this screen. You can use this screen to view the status of the router, to show statistics, or to view the connection status.
  • Page 43 LTE Broadband 11n Wireless Router MBR1515 Field Description Account Name The router model. Firmware Version The router firmware version. Ethernet Port MAC Address The Media Access Control address. IP Address The IP address being used by the Internet (WAN) port of the router.

  • Page 44: Show Statistics

    LTE Broadband 11n Wireless Router MBR1515 Field Description LAN Port MAC Address The Ethernet MAC address that is used by the router’s LAN port. IP Address The LAN port IP address. The default is 192.168.0.1. DHCP • Off. The router does not assign IP addresses to computers on the LAN.

  • Page 45: Connection Status

    LTE Broadband 11n Wireless Router MBR1515 Field Description Tx B/s The average egress line utilization for this port. ingress line utilization Rx B/s The average for this port. Up Time The time elapsed since the last power cycle or reset.

  • Page 46: View Attached Devices

    LTE Broadband 11n Wireless Router MBR1515 Field Description Connection Status Connection Time The time elapsed since the last connection to the Internet through the broadband port. Connecting to Server The connection status. Negotiation Success or Failed. Authentication Success or Failed.

  • Page 47: Back Up, Restore, Or Erase Your Settings

    LTE Broadband 11n Wireless Router MBR1515 Back Up, Restore, or Erase Your Settings The configuration settings of the router are stored in a configuration file in the router. This file can be backed up to your computer, restored, or reverted to factory default settings. The procedures in the following sections explain how to do these tasks.

  • Page 48: Erase The Configuration

    Internet connection. NETGEAR recommends that you change this password to a more secure password. The ideal password should contain no dictionary words from any language, and should be a mixture of both uppercase and lowercase letters, numbers, and symbols.

  • Page 49: Change The Administrator Login Time-Out

    LTE Broadband 11n Wireless Router MBR1515 From the main menu, select Maintenance > Set Password. To change the password, first enter the old password, and then enter the new password twice. Click Apply to save your changes. Note: After changing the password, you must log in again to continue the configuration.

  • Page 50: Upgrade The Router Firmware

    Save. Save diagnostic information. Upgrade the Router Firmware The router firmware is stored in flash memory, and can be upgraded as NETGEAR releases new firmware. Upgrade files can be downloaded from the NETGEAR website. If the upgrade file is compressed (a .zip file), you must first extract the binary (.bin or .img) file before uploading it to the router.

  • Page 51: Upgrade The Module Firmware

    The module firmware is stored in flash memory, and can be upgraded as new firmware is released. Upgrade files can be downloaded from the NETGEAR website. If the upgrade file is compressed (a .zip file), you must first extract the binary (.bin or .img) file before uploading it to the router.

  • Page 52: Chapter 5 Advanced

    Advanced This chapter describes how to configure the advanced features of your LTE Broadband 11n Wireless Router. • SIM Settings • Advanced Wireless Settings • Wireless Repeating Function • Port Forwarding and Port Triggering • WAN Setup • LAN Setup •...

  • Page 53: Sim Settings

    LTE Broadband 11n Wireless Router MBR1515 SIM Settings From the main menu, select Advanced > SIM Settings to display the following screen: Field Description Enabling or Disabling the PIN Code Controls whether the PIN code on the SIM card is used to connect to the network.

  • Page 54: Advanced Wireless Settings

    LTE Broadband 11n Wireless Router MBR1515 Advanced Wireless Settings From the main menu, select Advanced > Advanced Wireless Settings to display the following screen: Field Description Enable Wireless Router Radio Selected by default, this setting enables the wireless radio, which allows the router to work as a wireless access point.

  • Page 55: Restrict Access By Mac Address

    LTE Broadband 11n Wireless Router MBR1515 • Turn off wireless connectivity completely. You can completely turn off the wireless portion of the router. For example, if you use your notebook computer to wirelessly connect to your router, and you take a business trip, you can turn off the wireless portion of the router while you are traveling.
  • Page 56 LTE Broadband 11n Wireless Router MBR1515 Adjust the list as needed for your network. You can add devices to this list. Click Add to display the following screen: You can add devices to the list using either of the following methods: •...

  • Page 57: Wireless Repeating Function

    WPA-PSK [TKIP] can (and should) be used to protect this communication. • Wireless Base Station. Select this setting only if this MBR1515 is the master for a group of repeater-mode wireless stations. The other repeater-mode wireless stations must be set to wireless repeater-mode, using this MBR1515’s MAC address.

  • Page 58: Port Forwarding And Port Triggering

    LTE Broadband 11n Wireless Router MBR1515 Port Forwarding and Port Triggering Port forwarding and port triggering are advanced features that affect the behavior of the firewall in your router. In the Port Forwarding / Port Triggering screen, you can make local...

  • Page 59: Port Triggering

    LTE Broadband 11n Wireless Router MBR1515 Port Triggering  To set up port triggering: From the main menu, select Advanced > Port Forwarding/Port Triggering. Select the Port Triggering radio button to display the following screen: Click Add Service and fill in the fields in the Add Service screen.

  • Page 60: Set Up A Default Dmz Server

    LTE Broadband 11n Wireless Router MBR1515 The WAN Setup fields are described in the following table: Setting Description Disable Port Scan and DoS This check box is cleared so that the firewall protects your LAN Protection against port scans and denial of service attacks. This check box should be selected only in special circumstances.

  • Page 61: Lan Setup

    LTE Broadband 11n Wireless Router MBR1515  To assign a computer or server to be a default DMZ server: Go to the WAN Setup screen as described in the previous section. Select the Default DMZ Server check box. Type the IP address for that server.

  • Page 62: Dhcp Settings

    LTE Broadband 11n Wireless Router MBR1515 Click Apply to save the changes. The LAN TCP/IP Setup parameters are explained in the following table: Settings Description Device Name LAN TCP/IP IP Address The LAN IP address of the router. Setup IP Subnet Mask The LAN subnet mask of the router.

  • Page 63: Reserved Ip Addresses

    LTE Broadband 11n Wireless Router MBR1515 specified in this screen. Each pool address is tested before it is assigned to avoid duplicate addresses on the LAN. For most applications, the default DHCP and TCP/IP settings of the router are satisfactory.
  • Page 64 LTE Broadband 11n Wireless Router MBR1515 Tip: If the computer is on your network, it is listed on the same screen for your convenience. Selecting the radio button for each entry in the attached device list fills in the fields automatically with the computer’s MAC address and name.

  • Page 65: Qos Setup

    LTE Broadband 11n Wireless Router MBR1515 QoS Setup QoS is an advanced feature that can be used to prioritize some Internet applications and online gaming, and to minimize the impact when the bandwidth is busy. From the main menu, select Advanced > QoS Setup to display the following screen:...

  • Page 66: Qos Priority Rule List

    LTE Broadband 11n Wireless Router MBR1515 QoS Priority Rule List From the QoS Setup screen, click Setup QoS Rule to display the following screen: QoS Priority Rules From the QoS Priority Setup screen, click Add Priority Rule to display the following screen:...
  • Page 67 LTE Broadband 11n Wireless Router MBR1515 For Applications or Online Gaming  To set up the priority for an application or online gaming: From the Priority Category list, select Applications or On-line Gaming. From the Applications or On-line Gaming list, select the Internet application or game for which you want to set the priority.
  • Page 68 LTE Broadband 11n Wireless Router MBR1515 For MAC Addresses  To set up the priority for a specified computer using its MAC address: From the Priority Category list, select MAC Address. Click the Refresh button to update the list of computers already connected to the router.

  • Page 69: Dynamic Dns

    LTE Broadband 11n Wireless Router MBR1515 Dynamic DNS If your network has a permanently assigned IP address, you can register a domain name and have that name linked with your IP address by public Domain Name Servers (DNS). However, if your Internet account uses a dynamically assigned IP address, you do not know in advance what your IP address is, and the address can change frequently.

  • Page 70: Use Static Routes

    LTE Broadband 11n Wireless Router MBR1515 Use Static Routes Static routes provide additional routing information to your router. Under normal circumstances, the router has adequate routing information after it has been configured for Internet access, and you do not need to configure additional static routes. You must configure static routes only for unusual cases such as multiple routers or multiple IP subnets on your network.

  • Page 71: Enable Remote Management

    LTE Broadband 11n Wireless Router MBR1515 Select the radio button of the static route you want to configure. Click Add or Edit to display the following screen: Fill in or change the fields: • Route Name. The route name is for identification purposes only.

  • Page 72: Universal Plug And Play

    LTE Broadband 11n Wireless Router MBR1515 From the main menu, select Advanced > Remote Management: Select the Turn Remote Management On check box. Specify which external addresses are allowed to access the router’s remote management. For security, restrict access to as few external IP addresses as practical: •...
  • Page 73 LTE Broadband 11n Wireless Router MBR1515 • Turn UPnP On. UPnP can be enabled or disabled for automatic device configuration. The default setting for UPnP is enabled. If this feature is disabled, the router does not allow any device to automatically control the resources, such as port forwarding (mapping), of the router.

  • Page 74: Chapter 6 Troubleshooting

    Troubleshooting This chapter gives information about troubleshooting your LTE Broadband 11n Wireless Router. After each problem description, instructions are provided to help you diagnose and solve the problem. For the common problems listed, go to the section indicated. • Is the router on? Go to Basic Functioning on page 75.

  • Page 75: Basic Functioning

    • Check that you are using the power adapter supplied by NETGEAR for this product. • If the error persists, you might have a hardware problem and should contact technical support.
  • Page 76 LTE Broadband 11n Wireless Router MBR1515 Action Internet Internet LED is off. Be sure the SIM card that you received is in the router. SIM cards from other devices do not function in the router, and this SIM card will not function in other devices.

  • Page 77: Troubleshoot Access To The Router Main Menu

    LTE Broadband 11n Wireless Router MBR1515 Troubleshoot Access to the Router Main Menu If you are unable to access the router main menu from a computer on your local network, check the following: • If you are using an Ethernet-connected computer, check the Ethernet connection between the computer and the router as described in the previous section.

  • Page 78: Troubleshoot The Isp Connection

    A green Signal Quality LED indicates good coverage. • An amber Signal Quality LED indicates marginal coverage. • An unlighted Signal Quality LED indicates no coverage. b. Maintain recommended minimum distances between NETGEAR equipment and household appliances to reduce interference (see Interference Reduction Table page 91). Troubleshooting...

  • Page 79: Troubleshoot Internet Browsing

    LTE Broadband 11n Wireless Router MBR1515 Make sure that the external antennas are properly installed. Troubleshoot Internet Browsing If your router can obtain an IP address but your computer is unable to load any web pages from the Internet: •...

  • Page 80: Test The Path From Your Computer To A Remote Device

    LTE Broadband 11n Wireless Router MBR1515 ping 192.168.0.1 Click OK. You should see a message like this one: Pinging <IP address> with 32 bytes of data If the path is working, you see this message: Reply from < IP address >: bytes=32 time=NN ms TTL=xxx...

  • Page 81: Problems With Date And Time

    MAC address of a single computer connected to that modem. If so, you must configure your router to clone or spoof the MAC address from the authorized computer. See the LTE Broadband 11n Wireless Router MBR1515 Installation Guide. Problems with Date and Time The Schedule screen displays the current date and time of day.
  • Page 82 Supplemental Information This appendix provides the following information: • Factory Default Settings • Technical Specifications...

  • Page 83: Factory Default Settings

    LTE Broadband 11n Wireless Router MBR1515 Factory Default Settings Use the Restore Factory Settings button on the bottom of your router to reset all settings to their original factory default settings. This procedure is called a hard reset. To perform a hard reset, press and hold the Restore Factory Settings button for 6 seconds.
  • Page 84 LTE Broadband 11n Wireless Router MBR1515 Feature (continued) Default Behavior (continued) Mobile Internet service provider Verizon broadband vzwinternet Access number *99***3# PDP type IPV4IPV6 User name none required WiFi Wireless communication Enabled SSID name See label on the bottom of router...

  • Page 85: Technical Specifications

    LTE Broadband 11n Wireless Router MBR1515 Technical Specifications Technical Specifications Network protocol and standards TCP/IP, DHCP compatibility Power adapter • North America: 120V AC, 60 Hz, input • 12V DC @ 1.5A output Physical specifications • Dimensions: 6.8 in. x 5.03 in. x 1.28 in. (173 mm x 128 mm x 33 mm) •...
  • Page 86 Wall-Mounting This appendix provides instructions for wall-mounting your router. Your router’s location can affect wireless connections. For example, the thickness and number of walls the wireless signal needs to pass through might limit its range. For best results, place your router: •...
  • Page 87 LTE Broadband 11n Wireless Router MBR1515 Install wall anchors in the holes. Use pan head Phillips wood screws, 3.5 x 20 mm (diameter x length, European) or No. 6 type screw, 1 inch long (U.S.). Detach the stand from the unit.
  • Page 88 LTE Broadband 11n Wireless Router MBR1515 Insert screws into the wall anchors, leaving 3/16 in. (0.5 cm) of each screw exposed. For best wireless performance, position the antennas at right angles to each other. Wall-Mounting...

  • Page 89: Regulatory Compliance Information

    We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the LTE Broadband 11n Wireless Router MBR1515 complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions: •...

  • Page 90: Canadian Department Of Communications Radio Interference Regulations

    Canadian Department of Communications Radio Interference Regulations This digital apparatus (LTE Broadband 11n Wireless Router MBR1515) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 91 LTE Broadband 11n Wireless Router MBR1515 Interference Reduction Table The table below shows the recommended minimum distance between NETGEAR equipment and household appliances to reduce interference (in feet and meters). Household Appliance Recommended Minimum Distance (in feet and meters) Microwave ovens...
  • Page 92 Index Numerics front panel 4G LTE LED interference Internet port LED access control IP addresses, auto-generated administrator login attached devices keywords, blocking back panel backing up configuration blocking label broadband settings LAN setup LED descriptions log messages logging in and out compliance, adapters login not required configuration backup...
  • Page 93 LTE Broadband 11n Wireless Router MBR1515 port forwarding/port triggering ports, LAN and WAN WiFi button Power LED WiFi LED Push ’N’ Connect WINS wireless access control wireless configuration wireless repeat function Quality of Service (QoS) wireless security wireless settings WPA + WPA2...
