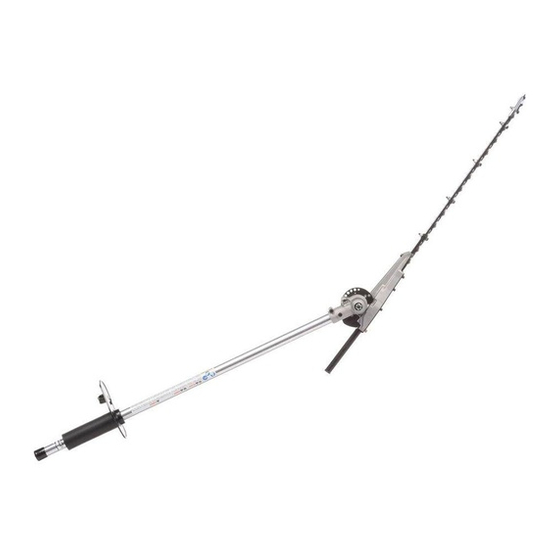

PAS Articulating Hedge
Clipper Attachment
FOR MODELS: SRM-2100SB, 2400SB, 210SB, 211SB, 225SB,
260SB, 261SB, PAS-2100, 2400, 2601, 210, 211, 225, 225VP,
225VPB, 230, 231, 260, 261, 265, 266
Operator's Manual
Users of this equipment risk injury to themselves and others if the unit is used
improperly and/or safety precautions are not followed. ECHO provides an operator's
manual and a safety manual. Both must be read and understood for proper and safe
operation. Failure to do so could result in serious injury.
Specifications, descriptions and illustrative material in this literature are as accurate as known at the time
of publication, but are subject to change without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
X7532095606
© 08/2013 ECHO Inc.
99944200595
