Echo 99944200418 Instruction Sheet

ECHO Models
®
All SRM Models
Read the operator's manual(s) and follow all
warnings and safety instructions. Failure to
do so can result in serious injury to the opera-
tor and/or bystanders.
You must install a Barrier Bar or U-Handle Kit
and all Blade Conversion parts shown in the
following instructions before operating this
unit with blades, otherwise serious injury may
result.
Pro Maxi-Cut
To use these
Grass/Weed
blades
Blade
Support
Handle, with
or without
Barrier Bar
Narrow Plas-
tic Shield with
Knife
You must
install these
Harness
parts
Upper Plate
and Flat
Washer
Hex Nut
New Cotter
Pin
Do not install blades on GT (curved shaft)
model trimmers.
• Arbor diameter of upper blade plate must
match arbor diameter of blade.
• New cotter pin required each time blade is
installed.
• Brushcutters over 7.5 kg (16.5 lbs) dry
weight (without fuel) require a double
shoulder harness.
• The barrier bar is used to restrict rearward
movement of the unit. The barrier bar is
NOT A HANDLE and should not be gripped
when using or carrying the unit.
X7672230407
Serial Number Range
All
Rigid Plastic
Tri-Cut Grass/ Metal Blade
Weed Blade
U-Handle U-Handle
or Support or Support
Handle with Handle with
Barrier Bar Barrier Bar
Narrow Plas- Wide Plastic
tic Shield with Shield
Knife
Harness Harness
Upper Plate Upper/Lower
and Glide Blade Plates
Cup
Hex Nut Hex Nut
New Cotter New Cotter
Pin Pin

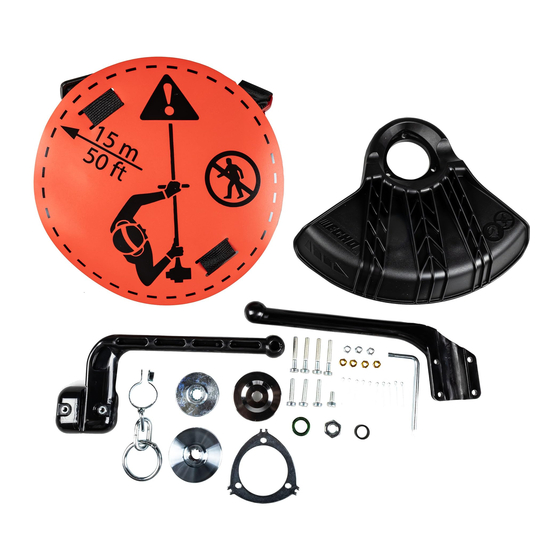

BLADE CONVERSION KIT, P/N 99944200418
BLADE CONVERSION KIT, P/N 99944200422
11
9
10
7
6
5
20
NO. PART NUMBER QTY. DESCRIPTION
1 V805000060
2 35164351730
3 90050000005
4 C405000170
5 90030020022
6 90051100010
7 C535000150
8 C535000160
9 C535000330
10 61031507130
11 V376002000
P021050510
12
13 V805000170
14 C552000240
15 C550000760
16 90056250005
17 C062000310
18 P021046740
19 V805000140
20 X605000060
21 69600120331
- 1 - ©2023 ECHO Incorporated. All Rights Reserved
INSTRUCTION SHEET
Hoja de 8 Dientes de 20 cm - Árbol de 20 mm
Lame à 8 Dents de 20 cm - Arbre de 20 mm
THIS SIDE UP
Warning:
Always wear proper eye, foot
and body protection. Injury to operators
or bystanders can occur from the
rotating blade or flying debris. Do
1 not allow blade to contact rocks,
wire, metal, or other foreign
21
objects during operation. If
contact occurs, stop engine,
and check blade for warping or
cracks. Discard blade if
warped or cracked.
Warning:
Serious personal injury
can result if you do not follow the
manufacturer's blade installation
and operation instructions.
2
3
16
15
12
14
13
8
18
19
17
4 BOLT, TORX 5×35
1 BAR, BARRIER
4 NUT M5
1 BAR, BARRIER
1 PIN, COTTER 2×22
1 NUT 10
1 PLATE, ADAPTER - LOWER
1 PLATE, ADAPTER - UPPER
1 PLATE, ADAPTER - UPPER
1 SPACER 11.8×15×9
1 SPACER
1 DEBRIS SHIELD KIT - BLADE
3 +BOLT, TORX 5×25
1 +PLATE, SHIELD
1 +SHIELD, DEBRIS - BLADE
3 +NUT, LOCK M5
1 HARNESS, SHOULDER
1 HANGER SET, HARNESS
1 BOLT, TORX 5×12
1 WRENCH, ALLEN T27 80×30
1 BLADE, 8", 8-TOOTH
DIRECTION OF ROTATION
8", 8-Tooth Blade - 20 mm Arbor
Recommended for heavy grass and weeds
Recomendado para hierbas pesadas y malezas espesas
Recommandé pour lourde herbe et mauvaises herbe
ESTE LADO DEBE APUNTAR HACIA ARRIBA HAUT
Advertencia:
Proteja siempre sus ojos,
pies y cuerpo de manera adecuada. La
cuchilla, cuando gira o arroja residuos al
aire, puede ocasionar lesiones a operadores
y transeúntes. No permita que la cuchilla
entre en contacto con piedras, alambre,
metal u otros objetos extraños mientras
está en funcionamiento. Si esto
sucediera, pare el motor y verifique
la cuchilla para detectar deformaciones
o grietas. Descarte la cuchilla si está
deformada o agrietada.
Advertencia: Se pueden producir
lesiones graves a su persona si no sigue
las instrucciones de instalación y
operación del fabricante de cuchillas.
Advertissement: Des blessures sérieuses peuvent se produire si vous ne
suivez pas les instructions du fabricant pour les lames et pour leur
fonctionnement.
Advertissement: Portez toujours une protection des yeux, des pieds et du
corps. Des blessures des opérateurs ou des spectateurs peuvent se produire
causées par la lame en rotation ou des débris volants. Ne laissez pas la lame
entrer en contact avec des pierres, des fils, du métal ou d'autres corps
étrangers au cours du fonctionnement. Si le contact se produit, arrêtez le
moteur et vérifiez si la lame présente du gauchissement ou des fissures.
Mettez la lame au rebut si elle s'est déformée ou fissurée.
Made in Japan
696001-20331
Echo, Inc.
Lake Zurich, Illinois 60047
