Pro Attachment Series
Operator's Manual
MODEL
Read rules for safe operation and instructions carefully. ECHO provides an Operator's
Manual with this unit and a separate Operator's Manual and Safety Manual (if available)
with the attachment. All manuals must be read and understood for proper and safe
operation. Failure to do so could result in serious injury.
X7532090500
PAS-260
Serial Number 05001001 - 05999999
WARNING
TM
DANGER
X753000520
02/03
Advertisement
Table of Contents
Related Manuals for Echo PAS-260 PRO - 02-03
Summary of Contents for Echo PAS-260 PRO - 02-03

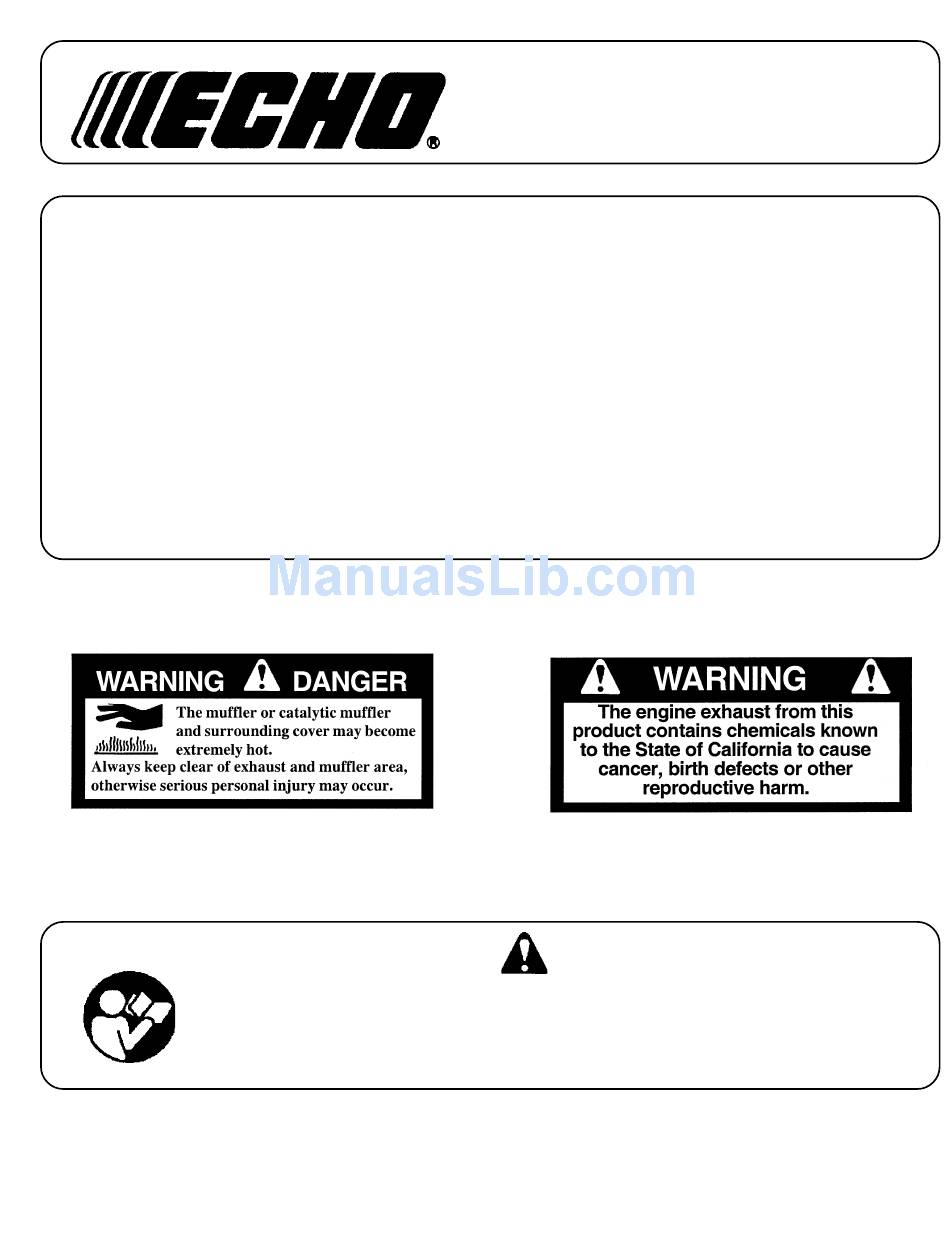

- Page 1 WARNING DANGER Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual with this unit and a separate Operator's Manual and Safety Manual (if available) with the attachment. All manuals must be read and understood for proper and safe operation.
-
Page 2: Table Of Contents
NTRODUCTION Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job- dependability. Read and understand this manual as well as your attachment operator's manual and SAFETY MANUAL (if available) before operation. You will find these manuals easy to read and full of helpful operating tips and SAFETY messages. -
Page 3: Manual Safety Symbols And Important Information
If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information. P/N 89016006361... -
Page 4: International Symbols
Physical Condition Hearing Protection Your judgment and physical dexterity may not be good: Wear hearing protection. ECHO recommends wearing • if you are tired or sick, hearing protection whenever unit is used. • if you are taking medication, • if you have taken alcohol or drugs. -
Page 5: Extended Operation/Extreme Conditions
Read and comply with all safety instructions listed in this manual and attachment manual. NOTE ECHO, INC. will not be responsible for the failure of cutting devices, attachments, or accessories which have not been tested and approved by ECHO for use with this Pro Attachment Series •... -
Page 6: Safe Operation
SAFE OPERATION WARNING DANGER Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death. Read the Manuals • Provide all users of this equipment with the Operator's Manual and Safety Manual for instructions on Safe Operation. -
Page 7: Description
The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, other assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. - Page 8 18. BARRIER BAR - Helps keep the cutting attachment away from the operator's legs and feet by limiting rearward movement of the unit if kick out occurs. Not for use as a handle. Allows use of all Echo-approved accessories and...
-
Page 9: Specifications
TTACHMENT ERIES PERATOR ANUAL PECIFICATIONS MODEL ----------------------------------------------------- PAS-260 Unit Length ------------------------------------------------- 1025 mm (40.4 in.) Width -------------------------------------------------------- 250 mm (9.84 in.) Height ------------------------------------------------------- 250 mm (9.84 in.) Weight (dry) ------------------------------------------------ 3.9 kg (8.6 lb.) Engine Type ------------------------------------------------ Air cooled, two-stroke, single cylinder gasoline engine Bore ---------------------------------------------------------- 34.0 mm (1.34 in.) Stroke -------------------------------------------------------- 28.0 mm (1.10 in.) Displacement ----------------------------------------------- 25.4 cc (1.55 cu. -
Page 10: Assembly
SSEMBLY ATTACHMENT SHAFT ASSEMBLY Tools Required: None Parts Required: PAS Attachment Assembly 1. Set Power Head/Shaft Assembly on a level surface. 2. Pull locator pin (A) out, and turn counter-clockwise 1/4 turn to lock- out position. 3. Carefully fit attachment drive shaft assembly into coupler (B) to decal assembly line (C), making sure that the inner lower drive shaft engages into the square upper drive shaft socket. -
Page 11: Pre-Operation
Echo premium Power Blend Universal 2-Stroke Oil may be mixed an approved fuel storage container. at 50:1 ratio for application in all Echo engines sold in the past regardless of ratio specified in those manuals. Storage Fuel storage laws vary by locality. Contact... -
Page 12: Operation
PERATION STARTING COLD ENGINE WARNING DANGER The attachment will operate immediately when the engine starts and could result in loss of control and possible serious injury. Keep movable parts of the attachment off the ground and away from A A A A A objects that could become entangled or thrown. -
Page 13: Starting Warm Engine
NOTE If attachment moves, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. A A A A A 1. Stop Switch Move stop switch button/lever (A) away from the STOP position. -
Page 14: Stopping Engine
ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed, see your ECHO Dealer for repairs. -
Page 15: Maintenance Intervals
TTACHMENT ERIES PERATOR ANUAL MAINTENANCE INTERVALS i l y t I - t l i t l i i l o f f u r e l l i o s t l t n i ® o i t n i f i r u o i t... -
Page 16: Air Filter
AIR FILTER Level 1. Tools required: 25 or 50 mm (1 or 2 in.) medium bristle paint brush Parts required: 90030 REPOWER Air and Fuel Filter Kit 1. Close choke (Cold Start Position). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumu- lated dirt from the air cleaner area. -
Page 17: Spark Plug
TTACHMENT ERIES PERATOR ANUAL SPARK PLUG Level 2. Tools required: Spark Plug Socket, Screwdriver, Feeler gauge (preferably a wire gauge), Soft metal brush. Parts Required: REPOWER Tune-Up Kit P/N 90075 1. Remove spark plug and check for fouling, worn and rounded center electrode. -
Page 18: Exhaust System
1. Remove spark plug lead. 2. Remove two (2) muffler cover screws and muffler cover (A). 3. Remove screw and arm rest (B). 4. Remove engine cover (C). IMPORTANT DO NOT use a metal scraper to remove dirt from the cylinder fins. 5. -
Page 19: Carburetor Adjustment
The cylinder exhaust port must be inspected and cleaned of excess carbon every 3 months or 90 hours of operation in order to maintain this engine within the emissions durability period. ECHO strongly recommends that you return your unit to your ECHO dealer for this important maintenance service. CARBURETOR ADJUSTMENT... -
Page 20: Lubrication
When carburetor adjustment is completed, the attachment should not rotate at idle, otherwise serious personal injury may result. LUBRICATION Level 1. Tools required: 5 mm Hex Wrench, Clean Rag Parts Required: ECHO LUBE 8 oz. (P/N 91014) or Lithium Base ® Grease. -
Page 21: Troubleshooting
TTACHMENT ERIES PERATOR ANUAL ROUBLESHOOTING n i l n i l l f f n i l t l i f t ' n c t i c t i t n I c t i i t c t l i f t l i f t l i f / s t... -
Page 22: Storage
TORAGE Long Term Storage (over 30 days) WARNING DANGER During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. - Page 23 TTACHMENT ERIES PERATOR ANUAL NOTE...
-
Page 24: Servicing Information
• Sending a check or money order for $2.00 per Parts Catalog or $1.50 per Operator's Manual made payable to ECHO, INCORPORATED. State on a sheet of paper the model number and serial number of the ECHO unit you have, part number of the manual (if known), your name and address and mail to address below.
