Summary of Contents for Panasonic WV-CS400

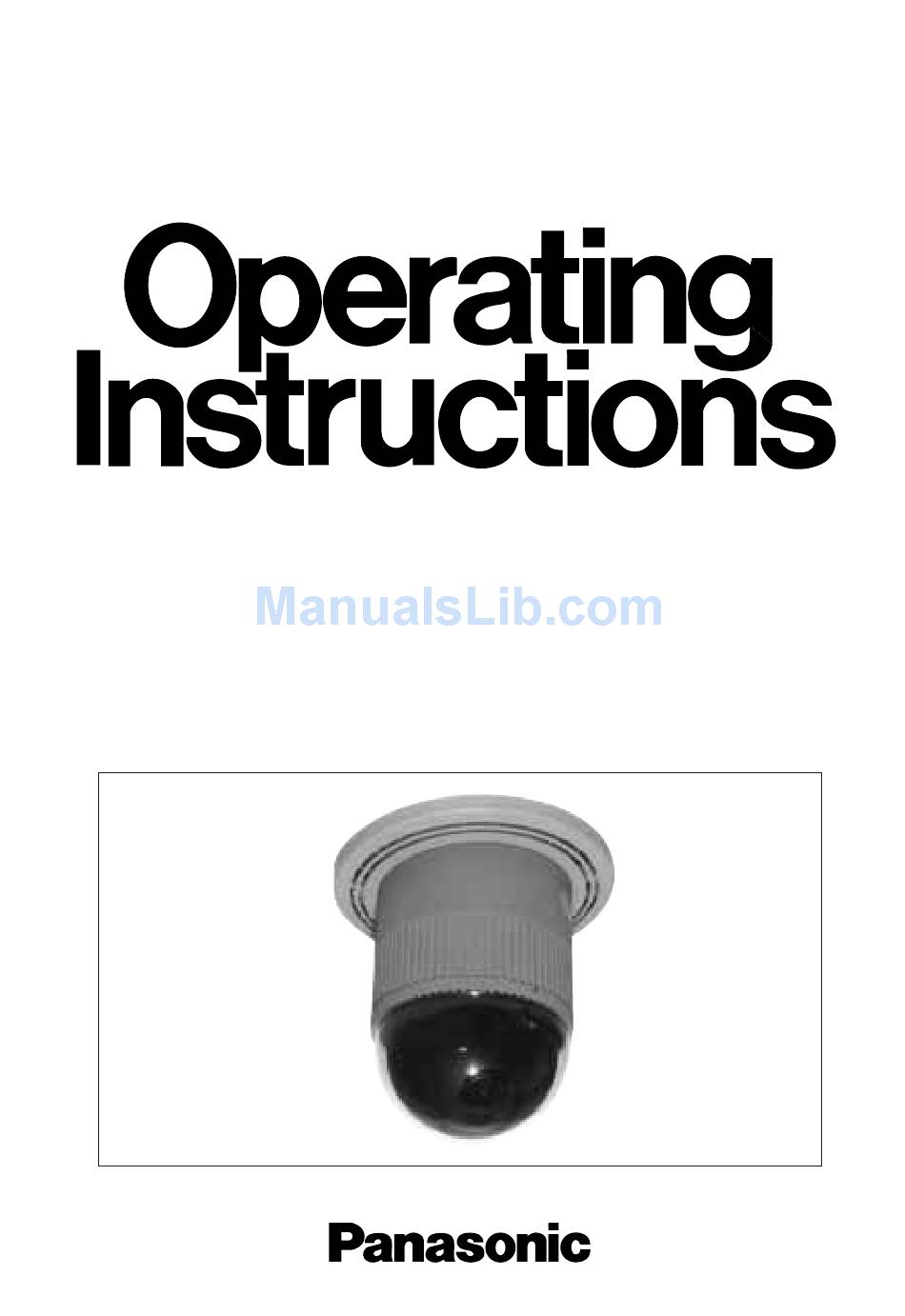

- Page 1 Combination Camera WV-CS400 Before attempting to connect or operate this product, please read these instructions completely...
- Page 2 If you lose the fuse cover the plug must not be used until a replacement cover is obtained. REFER SERVICING TO QUALIFIED SERVICE A replacement fuse cover can be purchased from your local Panasonic PERSONNEL. Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE...
-
Page 4: Table Of Contents
CONTENTS PREFACE ............INSTALLATION ..........20 FEATURES ............CONNECTIONS ..........22 PRECAUTIONS ..........SYSTEM CONNECTION ........23 MAJOR OPERATING CONTROLS AND PREVENTION OF BLOOMING THEIR FUNCTIONS ........... AND SMEAR ............24 SETUP PROCEDURE ........SPECIFICATIONS ..........25 Setup Menu ..........ACCESSORIES ........... -
Page 5: Preface
• Do not drop the metalic parts through slots. CCD and provides 480-line horizontal resolution This action could permanently damage this and 48 dB of S/N ratio. Also WV-CS400 feature unit. Do turn the power off immediately and advanced digital signal processing circuit which refer servicing to qualified service personnel. -
Page 6: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS (1) Video Output Connector (5) Fall Prevention Wire (2) Power Cable (6) Decoration Cover (3) Camera Mounting Angle (7) Dome Cover (4) Pan/Tilt Starting Point - 3 -... - Page 7 White Auto-Pan Special Balance On/Off Menu Manual Manual Chroma Gain Pedestal Camera Level Level Gain Reset Adjustment Adjustment Manual Manual Mask Mask Area Area Selection Selection - 4 -...
-
Page 8: Setup Procedure
SETUP PROCEDURE Setup Menu This camera utilizes a user setup menu that is displayed on-screen. This setup menu contains various sub menus with a Tree-Type structure as shown below. This menu is described in the "SETUP MENU Setup DESCRIPTION". Menu Camera Light Shutter... - Page 9 • In Case of WV-RM70 Up Switch: Moves the cursor upwards. Down Switch: Moves the cursor downwards. Right Switch: Moves the cursor right. The mode is also selected by this switch and adjustment of certain Up Switch levels can be made by this switch.
-
Page 10: Setup Menu Description
In this mode, even though the backlight may vary, the object at the centre of the screen can still be clearly seen. <WV-CS400 Preset ON> Note: Refer to the Light Control Setting on page Night 12 for detailed procedures. - Page 11 (LEVEL) while in the preset situations. "OFF" mode for both the ALC and ELC modes. However, by using the WV-CS400 in the preset Note: "OFF" mode, it is possible to compensate for The end result of the field setup of the difficult lighting conditions.
- Page 12 (6) Synchronization (SYNC) Important Notice: The priority of sync mode is as follows. 1. Multiplexed Vertical Drive (VD2) (Highest) 2. Line-lock (LL) 3. Internal Sync (INT) (Lowest) Note: The automatic sync mode selection is made according to priority listed above. Refer to the Synchronization Setting on page 14 for detailed procedures.
-
Page 13: Setting Procedures
(8) Special Menu (SPECIAL) Chroma level, aperture level, and pedestal level can be adjusted. * SPECIAL * Your settings can be released to return to the default settings. CHROMA GAIN ..I..AP GAIN ..I..See page 18 for the setting method. PEDESTAL .I.. -
Page 14: Camera Setting
• When the camera identification character needs editing, perform the POSI RET RESET following steps by using the submenu of Camera Identification. WV-CS400..• Move the cursor to the "CAMERA ID" mode position and press the CAM (SET) Button to display the Character Editing menu. - Page 15 2. The camera ID moves faster when the Joystick is kept pressed POSI RET RESET for more than 0.5 seconds. WV-CS400..• After completing the positioning of the camera ID, press the CAM (SET) Button to return to the Character Editing menu.
- Page 16 (1)-1 ALC Mode with Preset Mode (PRESET ON) • Move the cursor to the "PRESET" mode position and select the "ON" mode by using the Joystick. The preset mode menu is displayed on the monitor screen as shown. • Move the cursor to "RET" position by using the Joystick and press the CAM (SET) Button to return to the Set Up menu.
- Page 17 (2) MANUAL Mode Manual setting menu Move the cursor ALC/MANUAL position by using the Joystick and select the MANUAL by using the Joystick. * MANUAL CONT * The MANUAL menu is displayed. IRIS ..I..Control the level by using the Joystick. CLOSE OPEN 5.
- Page 18 Line-lock Sync Mode (LL) Camera setting menu • Display the Setup menu. • If necessary, refer to Setup Menu Display, for details on displaying the ** SET UP ** Setup menu on the monitor screen. CAMERA ID OFF * ALC/MANUAL ALC * SHUTTER SYNC...
- Page 19 Notes: 1. When the cursor "I" reaches to the end of "+" position, the cursor "I" jumps to the " " position. At the same time, the step number of the "COARSE" mode increases one step to enable a continuous adjustment. The reverse operation takes place when the cursor "I"...
- Page 20 (2) Automatic White Balance Control Mode (AWC) AWC fine adjustment menu • Move the cursor to the "WHITE BAL" mode position and select the "AWC PUSH SW" mode by using the Joystick. * AWC * ..I..• Press the CAM (SET) Button to activate the white balance setup. The ..I..
- Page 21 3. To set a panning start position and panning end position Follow the steps below. ** AUTO PAN ** (1) Move the cursor to POSITION SET and press the CAM (SET) POSITION SET START button. SPEED ...I..The cursor moves to START. ENDLESS STOP TIME (2) Move the joystick to left or right to select a panning start position...
- Page 22 Special menu (1) Chroma Level Setting (CHROMA GAIN) • Move the cursor to the "CHROMA GAIN" mode position. The cursor "I" starts blinking. * SPECIAL * • While observing the vectorscope or colour video monitor, adjust the CHROMA GAIN ..I..chroma level by using the Joystick.
-
Page 23: Installation
INSTALLATION 1. Remove the Mounting Screw (M3) from the Camera Mounting Angle (provided). Precautions : 2. Mark the mounting holes into the ceiling by 1. The following all installations should be made using the removed Camera Mounting Angle as by qualified service personnel or system a template. - Page 24 4. Hang the Fall Prevention Wire to the Camera 6. Tighten the Mounting Screw (provided). Mounting Angle. Notes : 1. Tighten the Camera Fixing Screw with the screwdriver. 2. Do mount the camera and Camera Mounting Angle completely as shown in the following.
-
Page 25: Connections
CONNECTIONS Precaution: The following connections should be made by qualified service personnel or system installers. 220 - 240V AC Video Output Cable Coaxial Cable BNC Plug (5C - 2V) BNC Plug To Video IN (CAMERA IN) Coaxial cable length should be less than 1200m (with 5C - 2V) Notes: •... -
Page 26: System Connection
SYSTEM CONNECTION Combination Camera Max. 64 Camera Matrix Switcher VTR (up to 16) Personal Computer RS-232C Port CONTROL ALARM INPUT INPUT INPUT INPUT INPUT INPUT INPUT INPUT OUTPUT OUTPUT OUTPUT OUTPUT VIDEO OUT1 VIDEO OUT1 VIDEO OUT1 VIDEO OUT1 VIDEO OUT1 VIDEO OUT1 VIDEO OUT1 VIDEO OUT1... -
Page 27: Prevention Of Blooming And Smear
PREVENTION OF BLOOMING AND SMEAR When the camera is aimed at a bright light, such as a spot light, or a surface that reflects bright light, smear or blooming may appear. Therefore, the camera should be operated carefully in the vicinity of extremely bright objects to avoid smear or blooming. -
Page 28: Specifications
SPECIFICATIONS Combination Camera Power Source : 220 - 240V AC, 50Hz 12W Ambient Operating Temperature : 10°C - +50°C (14°F - 122°F) Dimensions : 130 (D) x 195 (H) mm Weight : Camera Pick-up Device : 1/3” CCD with 752 (H) x 582 (V) pixels Synchronization Internal/Line-lock/VD2 Horizontal Scanning Frequency :... - Page 29 Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 530-91, Japan N0396-3076 YWV8QA4213DN Printed in Japan N 13 Gedruckt in Japan Imprimé au Japon Impreso en Japón...
