7 747 000 510 – 07/2006 US
User manual

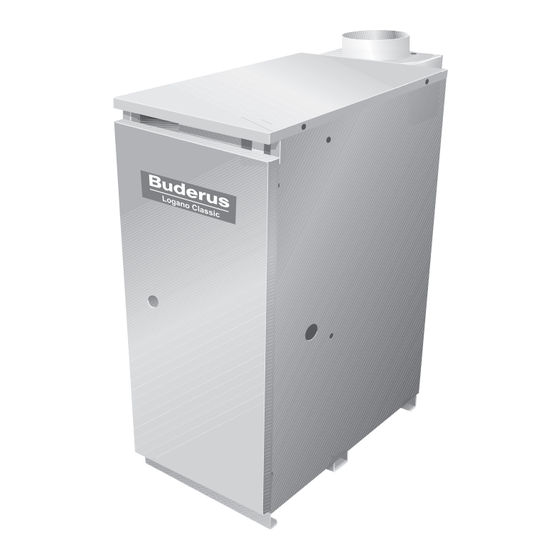

Gas Boiler
Logano GC124 II/SP
WARNING!
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS!
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
If you cannot reach your gas supplier,
call the Fire Department.
Installation and service must be per-
formed by a qualified installer, service
agency or gas supplier.
NOTICE: This manual must be retained for future reference.
Please read thoroughly before use.
For the user

Advertisement

Table of Contents
loading

Related Manuals for Buderus Logano GC124 II

Summary of Contents for Buderus Logano GC124 II

  • Page 1 7 747 000 510 – 07/2006 US For the user User manual Gas Boiler Logano GC124 II/SP WARNING! If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Page 2: For Your Safety

    Have the installer explain the operation of the heating Maintain a minimum distance of system. 15 inches from the boiler. Read this user manual thoroughly. We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...
  • Page 3 Replace any parts that show signs of deformation from corrosion or other sources. We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...

  • Page 4: Product Description

    3 Ignition module (only for GC124 II model) 4 Boiler block with insulation 5 Gas burner 6 Boiler jacket We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...

  • Page 5: Start-Up Instructions

    Please follow the instructions in Chapter 3.2, page 7, when lighting the pilot burner. We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...
  • Page 6 6. If you do not smell any gases, proceed to the next step. Fig. 3 Gas valve 1 Gas control knob (shown in the "ON" position) We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...
  • Page 7 3. Shut off main gas supply. 4. Open boiler front door. Fig. 4 Removing front door of boiler We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...
  • Page 8 Fig. 5) clockwise to the PILOT position. 9. Push and hold the red pilot ignition button ( Fig. 5) We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...
  • Page 9 GC124 SP gas valve 1 Gas control knob (shown in the "ON" position) 2 Red pilot ignition button We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...

  • Page 10: Shutting Off Gas Supply To Boiler

    Fig. 9 Gas valve (GC124 II left, GC124 SP right) 1 Gas control knob (shown in the "ON" position) We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...

  • Page 11: Taking The Heating System Out Of Operation

    2. Shut off main gas supply. 3. Shut down the heating system using the boiler emergency shutoff switch or the corresponding circuit-breaker. We reserve the right to make any changes due to technical modifications. User manual Gas Boiler Logano GC124 II/SP • Issue 07/2006...
  • Page 12 Your installer: BBT North America Corporation - Bosch Group 50 Wentworth Ave Londonderry, New Hampshire 03053 USA Tel: (603) 552-1100/800-Buderus Fax: (603) 421-2719 www.buderus.net BBT Thermotechnik GmbH, D-35573 Wetzlar www.heiztechnik.buderus.de info@heiztechnik.buderus.de...
