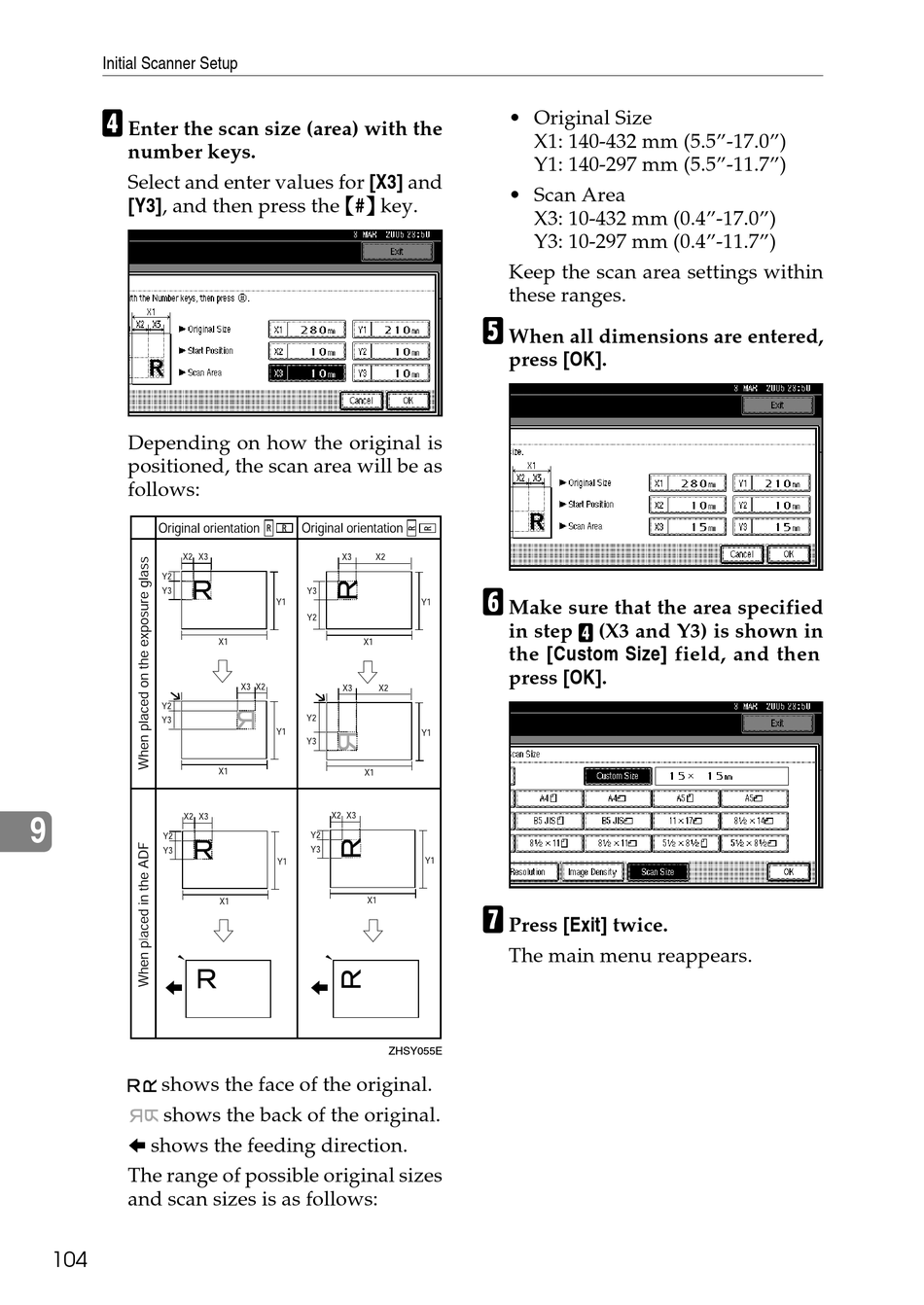

Initial Scanner Setup
D D D D
Enter the scan size (area) with the
number keys.
Select and enter values for [X3] and
[Y3], and then press the { { { { #} } } } key.
Depending on how the original is
positioned, the scan area will be as
follows:
9
shows the face of the original.
shows the back of the original.
shows the feeding direction.
The range of possible original sizes
and scan sizes is as follows:
104
• Original Size
X1: 140-432 mm (5.5"-17.0")
Y1: 140-297 mm (5.5"-11.7")
• Scan Area
X3: 10-432 mm (0.4"-17.0")
Y3: 10-297 mm (0.4"-11.7")
Keep the scan area settings within
these ranges.
E E E E
When all dimensions are entered,
press [OK].
F F F F
Make sure that the area specified
in step
the [Custom Size] field, and then
press [OK].
G G G G
Press [Exit] twice.
The main menu reappears.
ZHSY055E
D D D D
(X3 and Y3) is shown in
