CYBEX Pro3 Owner's Manual page 52

6. Verify the model, voltage and color.
A.
Verify that you have the correct model by looking at the console and reading the model name.
B.
Verify that you have the correct voltage by looking at the lower board and reading the voltage
sticker.
7. Secure the uprights.
A.
Using a 9/16" socket wrench, loosely attach the uprights with two of the 3-8-16 x 5-8 hex head
whiz-lock screws. NOTE: Do not securely tighten the screws until step 7C. See Figure 4.
B.
Using a 9/16" socket wrench with a 4" extension, attach the uprights with six of the 3-8-16 x 5-8 hex
head whiz-lock screws. NOTE: Do not securely tighten the screws until step 7C. See Figure 5.
C.
Tighten all 9/16" screws used during steps 7A and 7B including the two pivot screws (one on each
side). See Figure 6.

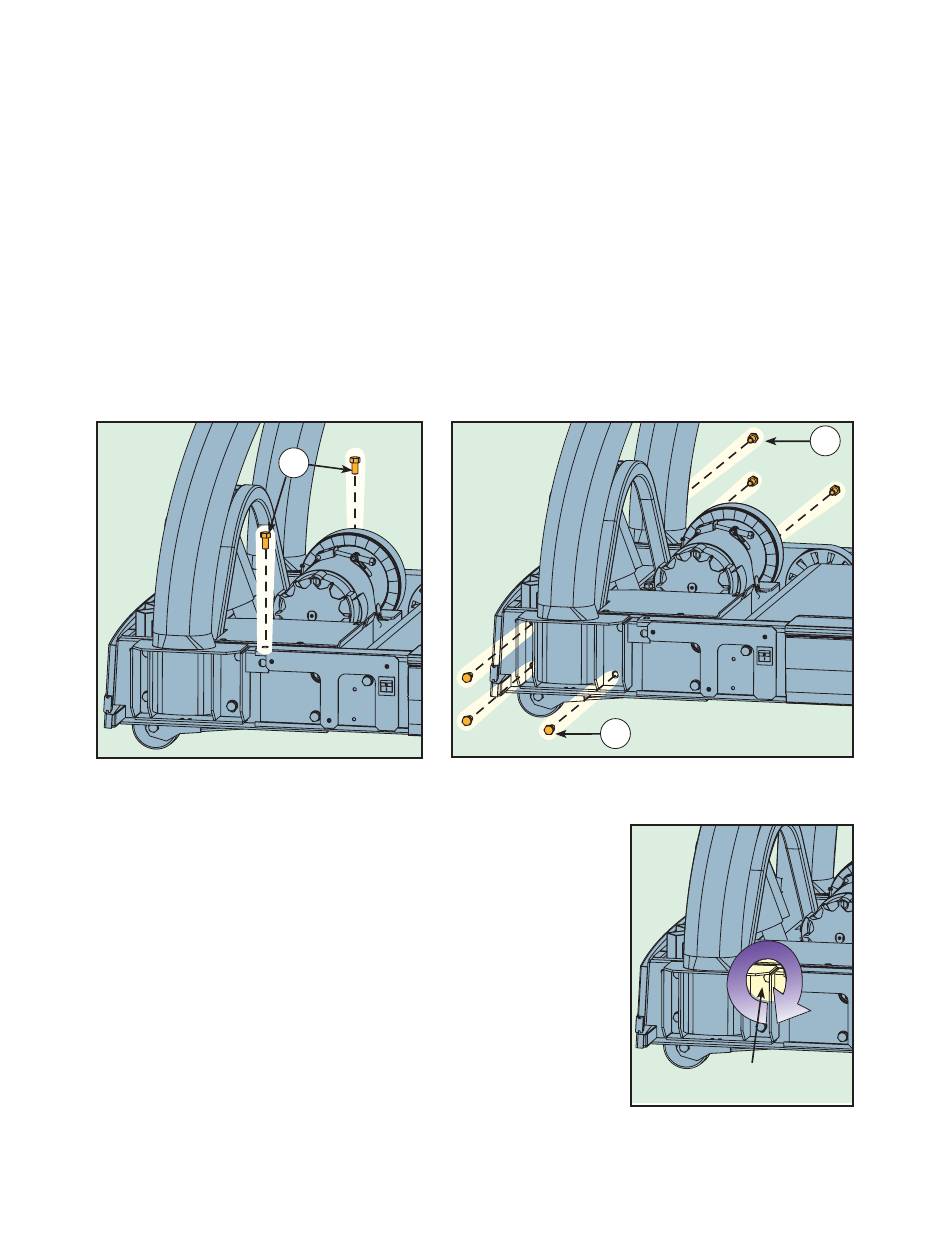

Figure 4
8. Secure the handrail.
A.
Using the Allen wrench provided, secure the handrail with two
5-16-18 x 7-8 screws. See Figure 7. NOTE: You may need to lift
the console slightly to line up the holes.
Setup
and
Assembly
Page 5-6
3
Cybex Pro Treadmill Owner's Manual
2
Figure 5
2
Pivot Screws
(1 on Each Side)
Figure 6
2
