q Main Menu
Motion Detection may be indicated on-screen by displaying the letter M.
Use this menu to turn this feature On or Off.

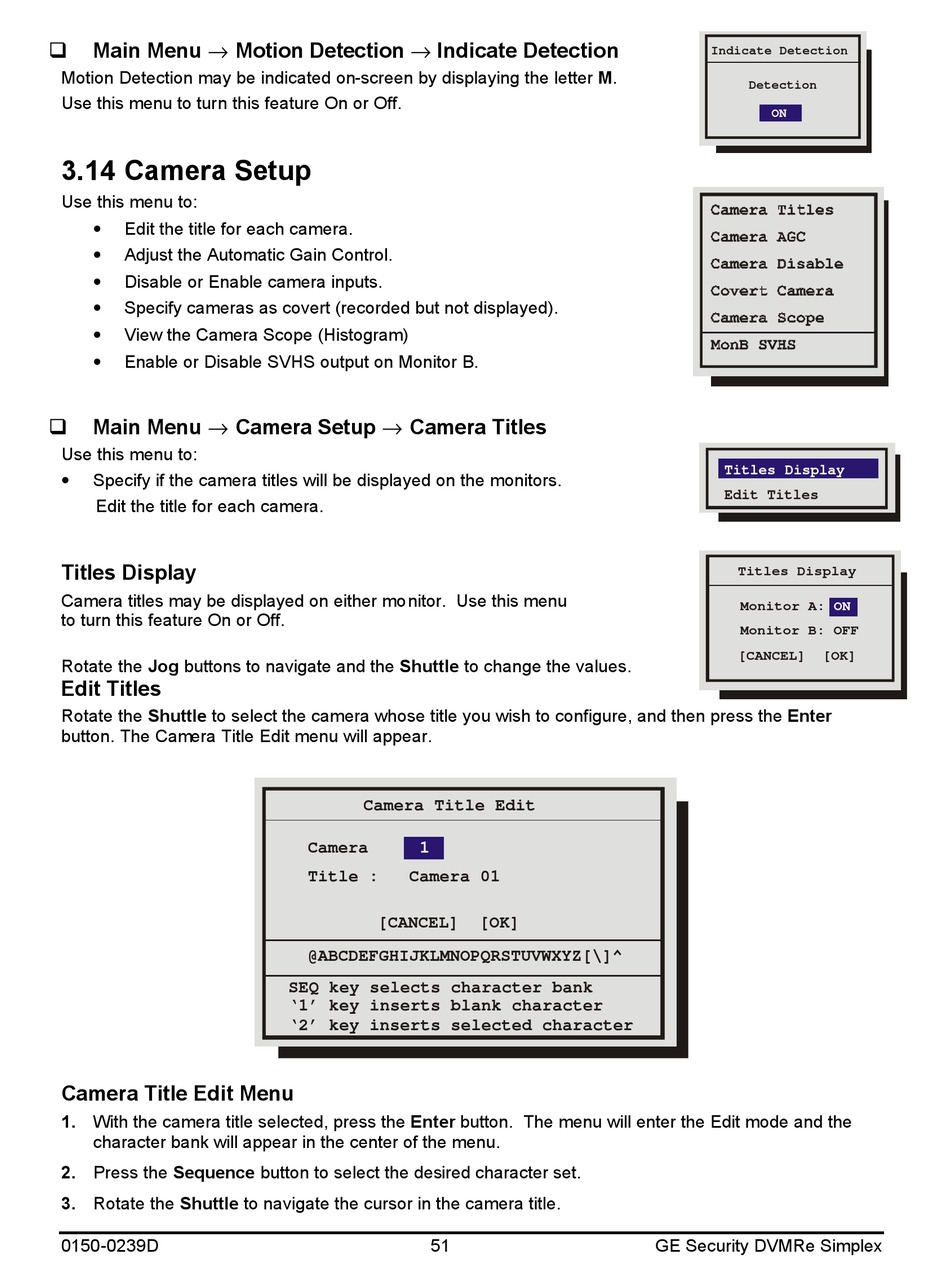

3.14 Camera Setup

Use this menu to:
Edit the title for each camera.
Adjust the Automatic Gain Control.
Disable or Enable camera inputs.
Specify cameras as covert (recorded but not displayed).
View the Camera Scope (Histogram)
Enable or Disable SVHS output on Monitor B.
q Main Menu
Use this menu to:
Specify if the camera titles will be displayed on the monitors.
Edit the title for each camera.
Titles Display
Camera titles may be displayed on either monitor. Use this menu
to turn this feature On or Off.
Rotate the Jog buttons to navigate and the Shuttle to change the values.
Edit Titles
Rotate the Shuttle to select the camera whose title you wish to configure, and then press the Enter
button. The Camera Title Edit menu will appear.
Camera Title Edit Menu
1. With the camera title selected, press the Enter button. The menu will enter the Edit mode and the
character bank will appear in the center of the menu.
2. Press the Sequence button to select the desired character set.
3. Rotate the Shuttle to navigate the cursor in the camera title.
0150-0239D
Motion Detection
Camera Setup Camera Titles
Camera Title Edit
Camera
Title : Camera 01
[CANCEL]
@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^
SEQ key selects character bank
'1' key inserts blank character
'2' key inserts selected character
Indicate Detection
1
[OK]
51
Indicate Detection
Detection
ON
Titles Display
Edit Titles
Titles Display
Monitor A:
Monitor B: OFF
[CANCEL] [OK]
GE Security DVMRe Simplex
ON
