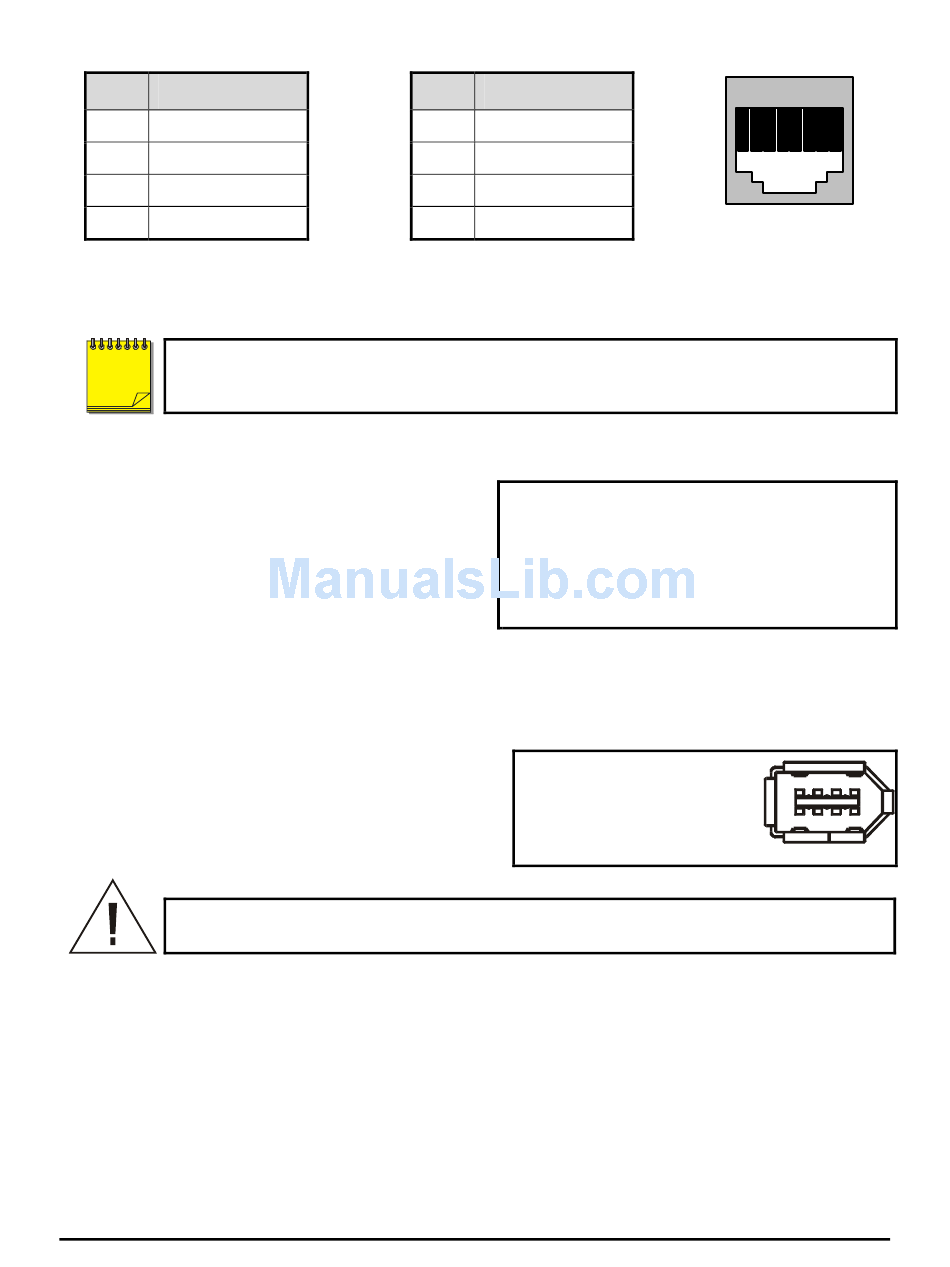

Back Panel - GE Security DVMRe Simplex User Manual

RJ-45 Pin Configuration For Ethernet Port
Pin Use
1 TX+
2 TX-
3 RX+
4 Not Connected
SCSI and IEEE 1394 archiving devices should not be connected to the GE Security
NOTE
DVMRe Simplex simultaneously. Archiving support is only available for one or the other
type of interface at a time.
SCSI Port
The unit is equipped with a SCSI port for
connecting external archive devices. The unit only
supports a single SCSI device. The SCSI ID of the
archive device must be set to 0.
The SCSI bus must be terminated, otherwise the
system will not operate properly.
Additional menu setup may be necessary to
configure archive device. See section 3.15.
IEEE 1394 Firewire Port
The unit is equipped with an IEEE 1394 Firewire port
for connecting Firewire compatible external archive
devices. For information on the approved devices,
please refer to the Archiving Addendum manual that
is supplied with this unit.
Caution! Ensure the power to DVMRe Simplex is OFF BEFORE connecting any SCSI or
1394 devices. Do not attempt to use the SCSI and 1394 ports simultaneously.
RS232 Port 1
For a Modem connection or remote control of unit. See section 3.17 for information about configuring
the modem settings in the menu system. See section 9 for RS232 Remote Control Protocols.
0150-0239D
Pin Use
5 Not Connected
6 RX-
7 Not Connected
8 Not Connected
Connector: 50 Pin, High Density SCSI-2.
Gender (on unit) : Female
Compatible devices : DVSe, RAID, DAT, AIT,
CD-R, CD-RW
SCSI ID : 0
Cable: 6 position Firewire
Connectors: 6 position DIP
14
1 2 3 4 5 6 7 8
RJ-45 socket on

back panel.

GE Security DVMRe Simplex
