q
Main Menu

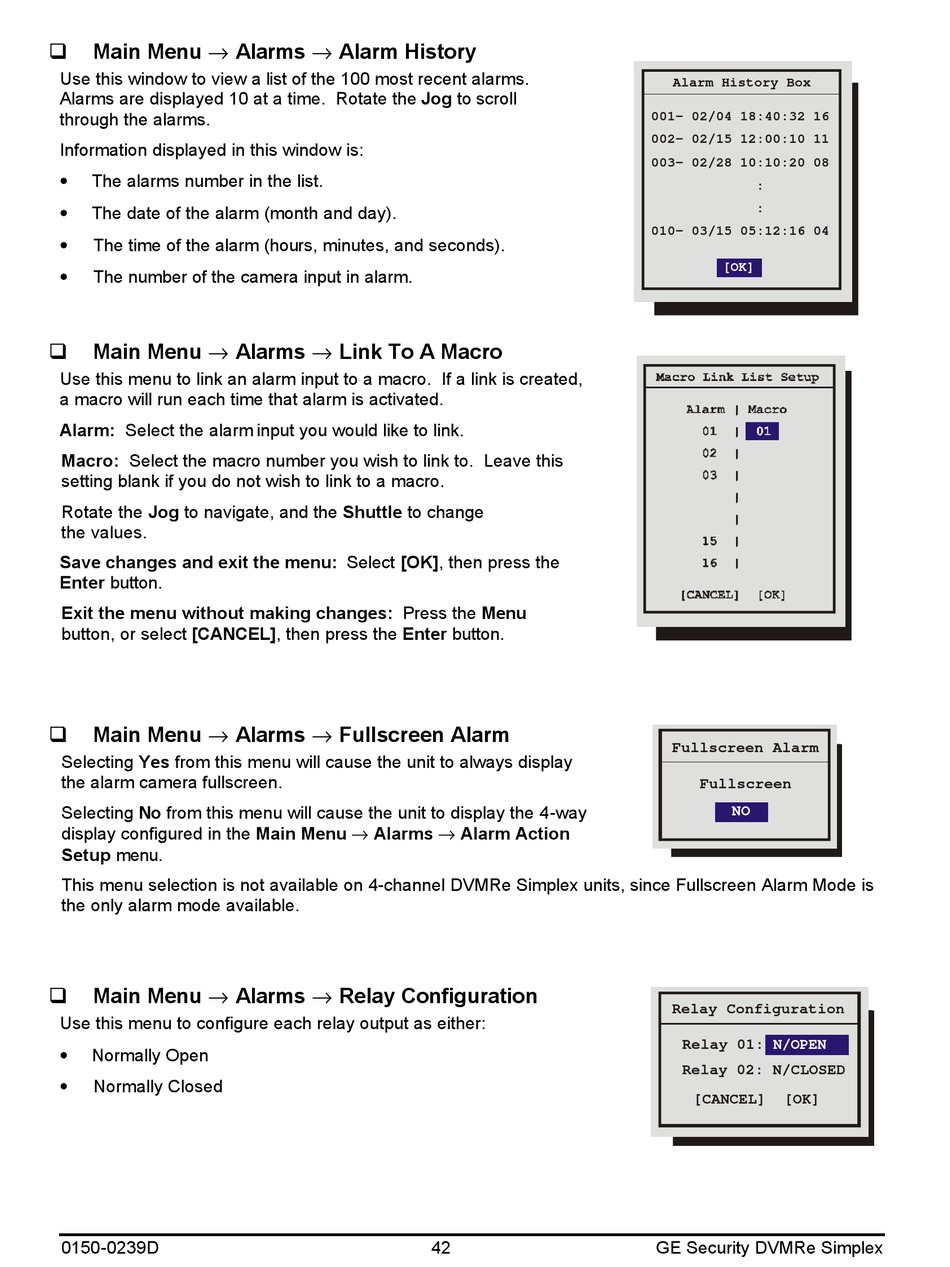

Use this window to view a list of the 100 most recent alarms.
Alarms are displayed 10 at a time. Rotate the Jog to scroll
through the alarms.
Information displayed in this window is:
The alarms number in the list.
The date of the alarm (month and day).
The time of the alarm (hours, minutes, and seconds).
The number of the camera input in alarm.
q
Main Menu
Use this menu to link an alarm input to a macro. If a link is created,
a macro will run each time that alarm is activated.
Alarm: Select the alarm input you would like to link.
Macro: Select the macro number you wish to link to. Leave this
setting blank if you do not wish to link to a macro.
Rotate the Jog to navigate, and the Shuttle to change
the values.
Save changes and exit the menu: Select [OK], then press the
Enter button.
Exit the menu without making changes: Press the Menu
button, or select [CANCEL], then press the Enter button.
q
Main Menu
Selecting Yes from this menu will cause the unit to always display
the alarm camera fullscreen.
Selecting No from this menu will cause the unit to display the 4-way
display configured in the Main Menu
Setup menu.
This menu selection is not available on 4-channel DVMRe Simplex units, since Fullscreen Alarm Mode is
the only alarm mode available.
q
Main Menu
Use this menu to configure each relay output as either:
Normally Open
Normally Closed
0150-0239D
Alarms
Alarm History
Alarms
Link To A Macro
Alarms
Fullscreen Alarm
Alarms
Alarms
Relay Configuration
Alarm Action
42
Alarm History Box
001- 02/04 18:40:32 16
002- 02/15 12:00:10 11
003- 02/28 10:10:20 08
:
:
010- 03/15 05:12:16 04
[OK]
Fullscreen Alarm
Fullscreen
NO
Relay Configuration
Relay 01:
N/OPEN
Relay 02: N/CLOSED
[CANCEL]
[OK]
GE Security DVMRe Simplex
