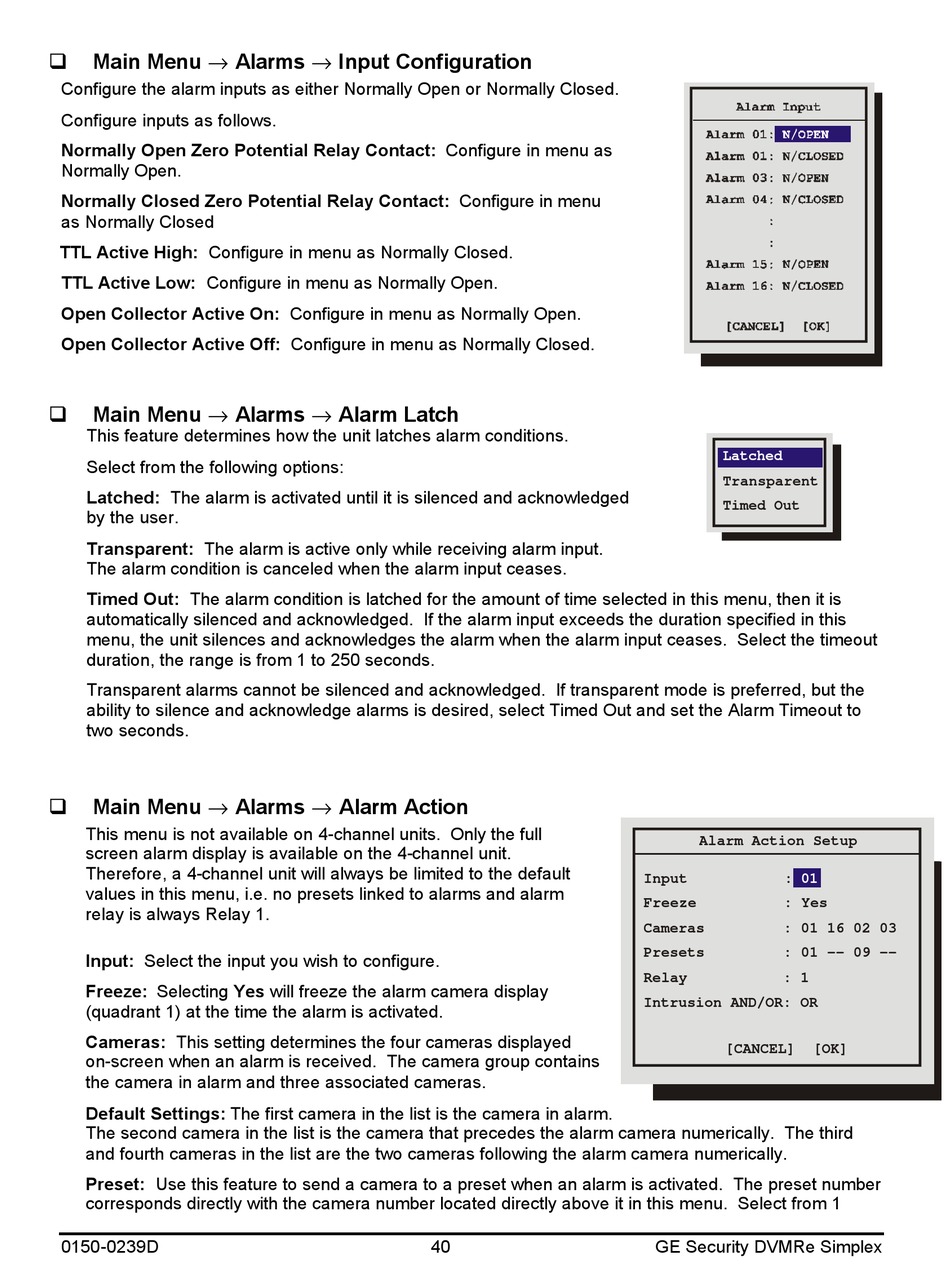

GE Security DVMRe Simplex User Manual page 40

q Main Menu
Configure the alarm inputs as either Normally Open or Normally Closed.
Configure inputs as follows.
Normally Open Zero Potential Relay Contact: Configure in menu as
Normally Open.
Normally Closed Zero Potential Relay Contact: Configure in menu
as Normally Closed
TTL Active High: Configure in menu as Normally Closed.
TTL Active Low: Configure in menu as Normally Open.
Open Collector Active On: Configure in menu as Normally Open.
Open Collector Active Off: Configure in menu as Normally Closed.
q Main Menu
This feature determines how the unit latches alarm conditions.
Select from the following options:
Latched: The alarm is activated until it is silenced and acknowledged
by the user.
Transparent: The alarm is active only while receiving alarm input.
The alarm condition is canceled when the alarm input ceases.
Timed Out: The alarm condition is latched for the amount of time selected in this menu, then it is
automatically silenced and acknowledged. If the alarm input exceeds the duration specified in this
menu, the unit silences and acknowledges the alarm when the alarm input ceases. Select the timeout
duration, the range is from 1 to 250 seconds.
Transparent alarms cannot be silenced and acknowledged. If transparent mode is preferred, but the
ability to silence and acknowledge alarms is desired, select Timed Out and set the Alarm Timeout to
two seconds.
q Main Menu
This menu is not available on 4-channel units. Only the full
screen alarm display is available on the 4-channel unit.
Therefore, a 4-channel unit will always be limited to the default
values in this menu, i.e. no presets linked to alarms and alarm
relay is always Relay 1.
Input: Select the input you wish to configure.
Freeze: Selecting Yes will freeze the alarm camera display
(quadrant 1) at the time the alarm is activated.
Cameras: This setting determines the four cameras displayed
on-screen when an alarm is received. The camera group contains
the camera in alarm and three associated cameras.
Default Settings: The first camera in the list is the camera in alarm.
The second camera in the list is the camera that precedes the alarm camera numerically. The third
and fourth cameras in the list are the two cameras following the alarm camera numerically.
Preset: Use this feature to send a camera to a preset when an alarm is activated. The preset number
corresponds directly with the camera number located directly above it in this menu. Select from 1
0150-0239D
Alarms Input Configuration
Alarms Alarm Latch
Alarms Alarm Action
40
Latched
Transparent
Timed Out
Alarm Action Setup
Input : 01
Freeze : Yes
Cameras : 01 16 02 03
Presets : 01 -- 09 --
Relay : 1
Intrusion AND/OR: OR
[CANCEL] [OK]
