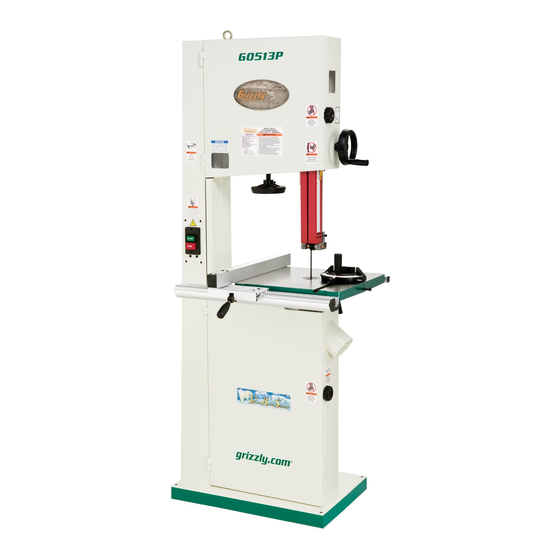

Congratulations on your purchase of a Model g0513p Bandsaw! the Model g0513p is the same machine
as the Model g0513 except for the painted color of the body components and a few of the labels, which
are shown in the parts breakdown below. except for the differences noted in this insert, all other content in
the Model g0513 owner's manual applies to this machine. Before operating your new machine, you Must
read and understand this insert and the entire Model g0513 manual to reduce the risk of serious personal
injury when using this machine.
If you have any questions about this manual insert or the differences between the Model G0513P and the
Model G0513, contact our Technical Support at (570) 546-9663 or email techsupport@grizzly.com.

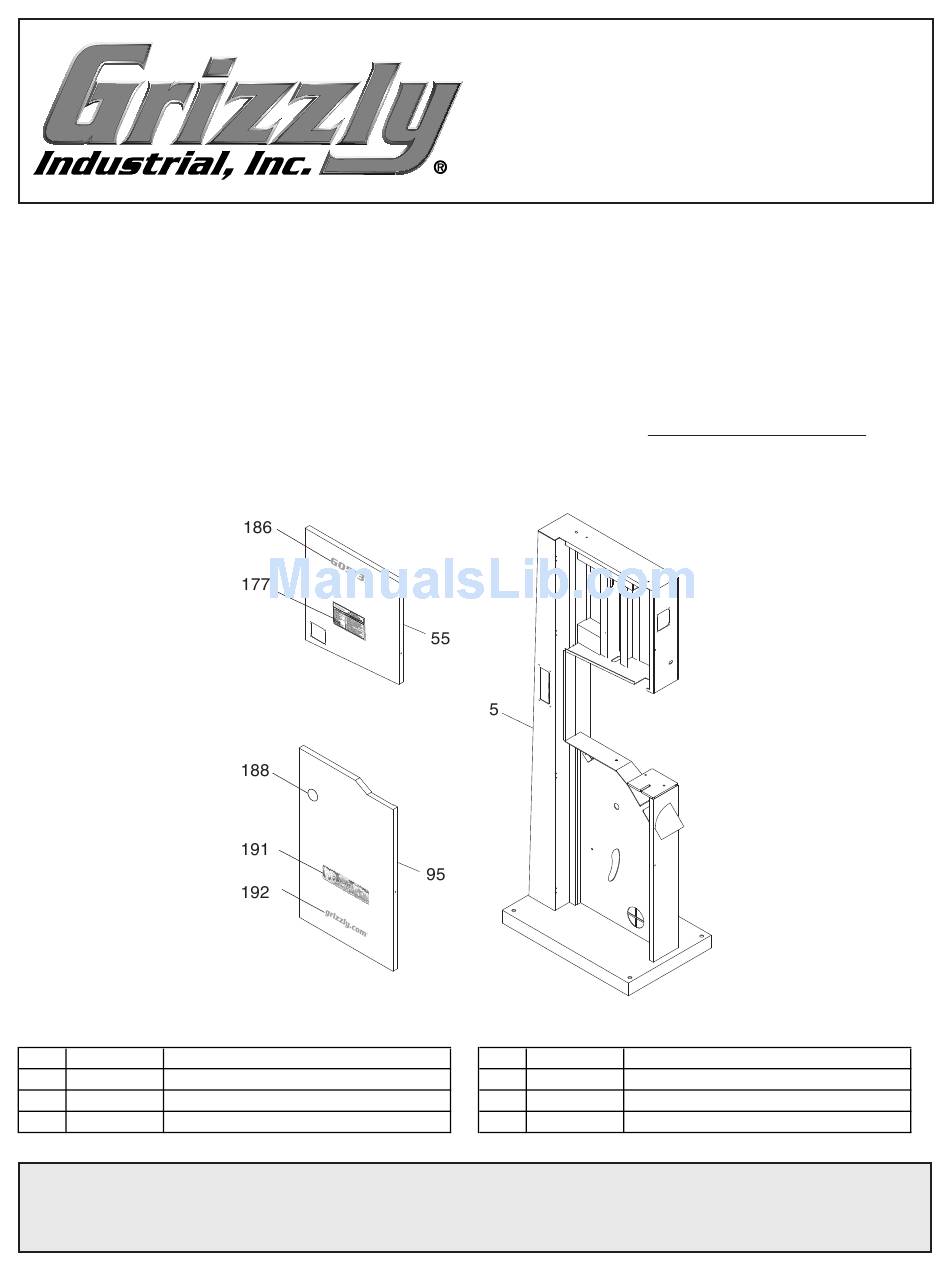

parts breakdown
REF PART #
DESCRIPTION
5
P0513P005
MACHINE BODY
55
P0513P055
UPPER WHEEL COVER
95
P0513P095
LOWER WHEEL COVER
177
P0513P177
MACHINE ID LABEL
Warning: no portion of this manual may be reproduced in any shape
or form Without the Written approval of grizzly industrial, inc.
(For Models ManuFaCtured sinCe 3/10) #Bl12716 printed in taiwan
Copyright © MarCh, 2010 By grizzly industrial, inC.
model g0513p
polar bear series
17" heavy-duty bandsaW
manual insert
REF PART #
DESCRIPTION
186
P0513P186
MODEL NUMBER LABEL
188
PPAINT-24
POLAR BEAR WHITE TOUCH-UP PAINT
191
PLABEL-75
POLAR BEAR LOGO 2-1/2 X 9-1/2
192
P0513P192
GRIZZLY.COM LABEL
