JVC DT-V9L5 Instructions Manual

Multi format lcd monitor
Hide thumbs Also See for DT-V9L5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

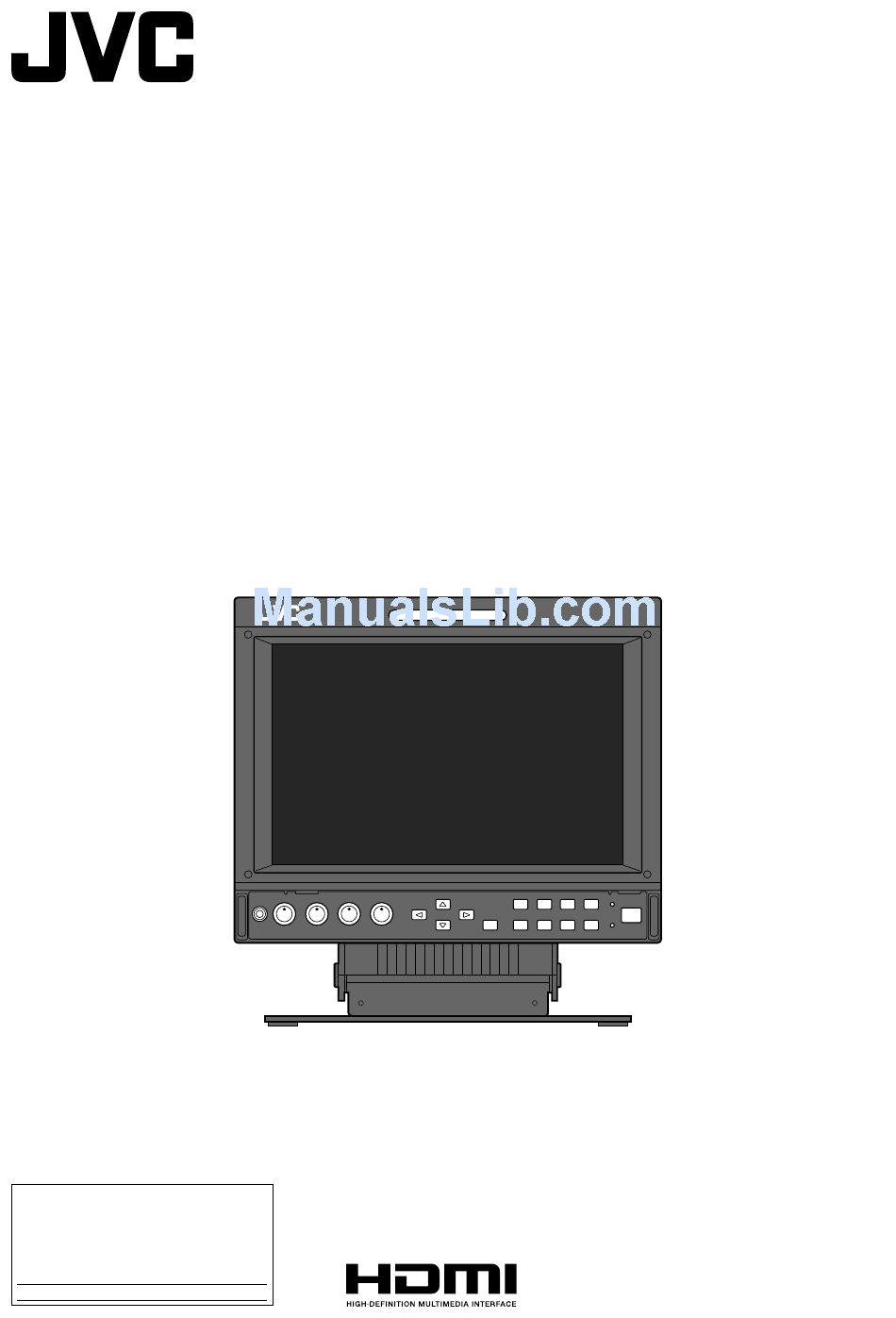

MULTI FORMAT LCD MONITOR
DT-V9L5
INSTRUCTIONS
For Customer Use:
Enter below the Serial No. which is located
on the rear of the cabinet. Retain this
information for future reference.
Model No.
: DT-V9L5
Serial No.
:
®
LCT2704-001A

Advertisement

Table of Contents
loading

Related Manuals for JVC DT-V9L5

Summary of Contents for JVC DT-V9L5

  • Page 1 MULTI FORMAT LCD MONITOR DT-V9L5 INSTRUCTIONS For Customer Use: Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference. ® Model No. : DT-V9L5 Serial No. LCT2704-001A...

  • Page 2: Safety Precautions

    Safety Precautions The lightning flash with arrowhead symbol, within an equilateral triangle is CAUTION intended to alert the user to the presence of uninsulated “dangerous voltage” RISK OF ELECTRICAL SHOCK within the product’s enclosure that may DO NOT OPEN be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 FCC NOTICE CAUTION: Changes or modifications not approved by JVC could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Caution For Use Of The Product For Many Hours

    Safety Precautions (cont.) IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    Table of Contents Safety Precautions ............2 IMPORTANT SAFEGUARDS Operating Precautions .

  • Page 6: Installation

    Installation Caution ● Do not rest your arm on the monitor or lean against the monitor. ● Do not touch the LCD panel when installing the monitor. ● Be sure to install the monitor securely to prevent the monitor from falling over, which may cause damage to the monitor or injury. Adjusting the stand height You can select the stand height according to your preference—higher position or lower position.

  • Page 7: Tilting The Monitor

    Lower position When you want to lower the position of the monitor. Attachment screws Stand Monitor Tilting the monitor You can tilt the monitor as shown below. About 20° When the monitor is not tilted (0°), the guidelines align as illustrated. 0°...

  • Page 8: Index Of Parts And Functions

    Index of Parts and Functions Rear panel Carry handle Security slot Use this handle when carrying the monitor. Attach a security wire to this slot. 1 POWER switch Turns AC power on or off. button (☞ q on page 10) to use the monitor after turning on the POWER switch. ●...
  • Page 9 7 HDMI terminal Input terminal compatible with HDCP for the HDMI signal. (TYPE-A) 8 REMOTE terminal Terminal for controlling the monitor by an external control. (☞ “External Control” on page 23) 9 AUDIO (MONITOR OUT) terminals (pin jack) Output terminals for the analog audio signal. ●...

  • Page 10: Front Panel

    Index of Parts and Functions (cont.) Front panel Tally lamp This lamp is controlled by the tally function of the MAKE/TRIGGER terminal. • You can select the color of the tally lamp from “Green” or “Red.” You can also select whether the whole lamp is turned on at once, or whether it is turned on one half at a time.

  • Page 11: Showing Input Signals

    y SCOPE button/lamp Displays/hides the indication of the wave form monitor and vectorscope (☞ “Scope Setting” on page 17). ● Each time you press this button, the window changes in the following order. No display Wave form monitor Histogram Vectorscope u DC lamp When the DC power voltage is being lowered due to the battery consumption, the lamp changes to orange from green.

  • Page 12: On The Status Display

    Showing Input Signals (cont.) On the Status Display If you press the INPUT SELECT button (☞ 9 on page 10) currently lit, the status of the input signal and setting of MUTING are displayed for about 3 seconds. ● Make the setting to display/hide the status in “Status Display” of the “Information”. (☞ page 20) ●...

  • Page 13: Menu Transition Diagram

    Menu Transition Diagram Main Menu Picture Function Backlight H Size Aperture H Position Aperture Level V Size Size/Position Adjust V Postion sub menu Gamma reset Aspect Color Temperature sub menu reset Dynamic Auto Aspect Manual Aspect SD4 3 Size Signal Setting 16 9 Size Video/Component Select Marker...

  • Page 14: Main Menu

    Menu Configuration (cont.) Main Menu Picture Function Setting for the picture quality. Item To do Setting value Backlight Adjusts the brightness of the display. –20 to +20 Aperture* Activates/deactivates the function at the level set in “Aperture Level”. Off, On Aperture Level* Compensate the frequency response of the luminance signal of the video signal.
  • Page 15 Signal Setting Settings for input signals. Item To do Setting value Video/Component Select Selects the signal type you want to use for VIDEO/COMPONENT terminals. Video, Component I/P Mode Selects a proper mode corresponding to the input picture. Normal, Cinema Color System Select the color system.

  • Page 16: Audio Setting

    Menu Configuration (cont.) Audio Setting Settings for EMBEDDED AUDIO signals and audio level meter signal. Item To do Setting value SDI-1 Select Select the input through which audio is output. Off, Auto, Digital, Analog SDI-2 Select Does not output audio. Auto Output digital audio prior to analog audio.
  • Page 17 Scope Setting* Configure the settings for the wave form monitor and vector scope. Item To do Setting value Gain* Adjust the input gain level. –10 to +10 Size* Set the window size. Normal, Large Position Select the window position. Lower Right, Lower Left Upper Left, Upper Right Transparent Activates/deactivates the function to make the window translucent.

  • Page 18: Set-Up Menu

    Menu Configuration (cont.) Sync Function Settings for the synchronization with signals. Item To do Setting value No Sync Action Select the screen status when no signal is coming in. Off, Standby, Power Save (power save mode) Gray Back (gray screen) Delay Time Select the period until the screen status changes as selected in “No Sync Action”...
  • Page 19 Function Key Setting Specify the function assigned to the F1 button. Function1 Specify the function assigned to the F1 button. - - -, Aperture, I/P Mode, * See pages 13 to 22 for details of the functions assigned to Function 1. Frame, Center Marker, Level Meter Display, Gamma, Color...
  • Page 20 Menu Configuration (cont.) Remote Setting Settings for the external control. Item To do Setting value Parallel Type Select a control method of the MAKE/TRIGGER terminal. Make, Trigger, Set Pin1 Pin2 ☞ "Display" in "Functions Assign the control functions to the pins of the MAKE/TRIGGER terminal. Pin3 •...
  • Page 21 Off :Not displayed On :Displayed IMD Protocol Serial communication protocol setting Off, TSL V4.0 Off : Supports JVC protocol TSL V4.0 : Supports TSL UMD Protocol V4.0 Address Address setting 000 to 126 000 to 126 : Set a particular address...
  • Page 22 Menu Configuration (cont.) ● Setting of “Character Setting” Change the input to one that you want to assign a video source name for. Select “Character Setting”. Press buttons to select the first character. ● Each time you press button, the character changes as follows. Press button to reverse the order.

  • Page 23: External Control

    External Control About the external control Using the MAKE/TRIGGER system This monitor has three external control terminals. The MAKE/TRIGGER terminal is configured as follows. You can assign ● MAKE/TRIGGER terminal (RJ-45): The following external control a function to each pin terminal in “Remote Setting”. (☞ “Pin1, Pin2, systems are available.

  • Page 24: Using The Serial Communication

    External Control (cont.) <Functions controlled by the MAKE/TRIGGER system> Display Functions to be controlled Opening Short-circuiting – – – No function — — Tally lamp color selection* Green Tally Color Tally lamp lighting method selection Whole One half at a time Tally Type Light the left half of the tally lamp in red* Tally-L(R)
  • Page 25 <Command outline> All commands consist of the following segments. Header Monitor ID Function Data Cr (0Dh) On Header “!” : Operation commands from the personal computer, etc. (☞ <Basic command list> below table). “?” : Reference commands from the personal computer, etc. “@”...

  • Page 26: Troubleshooting

    Troubleshooting Solutions to common problems related to the monitor are described here. If none of the solutions presented here solve the problem, unplug the monitor and consult an authorized dealer or service center. Symptom Probable cause and corrective action Page ●...

  • Page 27: Self-Check Program

    Self-check program This monitor has a self-check function, which allows it to detect malfunctions and alert you. This makes troubleshooting easier. Whenever a problem occurs, one or some of the INPUT SELECT lamps will flash. If this happens, follow the steps below and contact your dealer to resolve the problem.

  • Page 28: Specifications

    Specifications General Model name DT-V9L5 Type Multi format LCD monitor Screen size Type 8.2 wide format Aspect ratio 16:10 ☞ “Available signals” on page 30 Compliant video signal format Format HD SDI: SMPTE292M SD SDI: ITU-R BT.656, SMPTE259M EMBEDDED AUDIO 16CH:...

  • Page 29: Dimensions

    Notice on transportation This monitor is precision equipment and needs dedicated packing material for transportation. Never use any packing material supplied from sources other than JVC or JVC-authorized dealers. ● For easy understanding, pictures and illustrations are shown by being emphasized, omitted or composed, and may be slightly different from actual products.

  • Page 30: Available Signals

    Specifications (cont.) Available signals The following signals are available for this monitor. Video signals Input terminal Signal format shown in the Signal name status display E.AUDIO * VIDEO analog COMPO. HDMI (☞ page 12)* HD/SD SDI NTSC NTSC √ — —...
  • Page 31 MEMO...
  • Page 32 © 2012 JVC KENWOOD Corporation LCT2704-001A...
