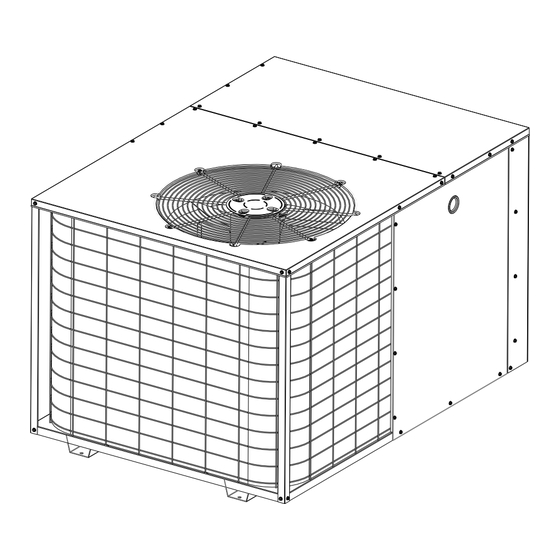

USER'S MANUAL AND INSTALLATION INSTRUCTIONS
15 SEER
2-Stage R-410A Single Package Air Conditioner
Read this owner information to become familiar with the capabilities and use
of your appliance. Keep this with literature on other appliances where you
have easy access to it in the future. If a problem occurs, check the instructions
and follow recommendations given. If these suggestions don't eliminate your
problem, call your installing contractor or distributor in your area.
INTRODUCTION
Most any air conditioner will keep you cool. Our air conditioner was designed to do
it effi ciently. Effi ciency means less cost to you while keeping you comfortable.
WHY YOUR AIR CONDITIONER WORKS SO WELL, SO QUIETLY
1.
Air is cooled by a large evaporator coil. Moisture is also removed from the air by
this same coil.
2.
Air is then delivered through the main duct, via registers, into your home.
3.
Return air is drawn through the return register.
4.
This air enters the unit, passes through the evaporator coil, is cooled and dehumidi-
fi ed. Then the cycle begins again.
Single Package Air Conditioner
IMPORTANT
Advertisement
Table of Contents
Related Manuals for Nordyne R-410A
Summary of Contents for Nordyne R-410A
- Page 1 USER’S MANUAL AND INSTALLATION INSTRUCTIONS 15 SEER 2-Stage R-410A Single Package Air Conditioner Single Package Air Conditioner IMPORTANT Read this owner information to become familiar with the capabilities and use of your appliance. Keep this with literature on other appliances where you have easy access to it in the future.
-
Page 3: Section 1. Owner Information
SECTION 1. The indoor blower will cycle on and off to maintain the indoor temperature at the desired OWNER INFORMATION heating level. OPERATING INSTRUCTIONS To Shut Off Your Air Conditioner —Set the thermostat system switch to OFF and the To Operate Your Air Conditioner for Cooling— thermostat fan switch to AUTO. -
Page 4: Section 2. Installer Information
fi led immediately with the carrier. SECTION 2. INSTALLER INFORMATION CAUTION: GENERAL This unit uses refrigerant R-410A. Do Read the following instructions completely NOT under any circumstances use before performing the installation. any other refrigerants besides R-410A These instructions are for the use of qualifi ed in this unit. - Page 5 a. Remove the bands from around the unit. 6 ft. b. Unfold the top and bottom cap fl anges. c. Carefully remove the top cap and tube. 24" CLEARANCES Minimum clearances, as specifi ed in Figure 2, MUST be maintained from adjacent struc- tures to provide room for proper servicing and air circulation.
-
Page 6: Supply Duct
INSTALL THE RETURN AND SUPPLY AIR FITTINGS ON THE UNIT The supply and return fi ttings are included with select models. If supplied, the duct fi ttings are shipped in the supply duct. They attach to the unit openings with a fl ange and bead arrangement, secured with two sheet metal screws. -
Page 7: Typical Applications
TYPICAL APPLICATIONS SINGLE DUCT APPLICATION MULTIPLE DUCT APPLICATION Ref. No. Description 12” x 20” Return Air 16” x 20” Air Filter 12” x 20” Grille Supply Damper 14” Diameter Flex Return Duct 12” Diameter Flex Supply Duct 12” x 12” x 12” “Y” Fitting Figure 6. -
Page 8: Condensate Drain
CONNECTING THE RETURN AND SUPPLY AIR FLEXIBLE DUCTS Elbow The supply duct for all units is 12” in diam- eter. The return duct is 14” diameter for all air conditioning units. The fl exible ducts can be connected to the corresponding fi... -
Page 9: Electrical Connections
These units are two stages Cooling and Heat- ing units. They require a 2-stage Cooling/ Heating thermostat. The heat-cool thermostat is equipped with a system HEAT-COOL switch, which provides a positive means of preventing simultaneous operation of the heating and cooling units. -
Page 10: Start-Up Procedure
4 Wire Heat/Cool Thermostat 2 Wire Cooling Thermostat Control Wire Legend Single Stage Electric Heat Green - Blower Relay Red - Transformer Yellow - Cooling 1st Stage YELLOW YELLOW Brown - Heating 1st Stage GREEN GREEN Orange - Heating 2nd Stage BROWN BROWN... - Page 11 WD # 7109110 YELLOW Figure 11. Wiring Diagram...
- Page 12 WD # 710926A YELLOW YELLOW BLUE BLACK GREEN BLUE Figure 12. Wiring Diagram...
- Page 13 P5RF Charging Charts P5RF-X24K Charging Chart - Cooling Remove refrigerant when above curve Add refrigerant when below curve Liquid Temperature (F) P5RF-X36K Charging Chart - Cooling Remove refrigerant when above curve Add refrigerant when below curve Liquid Temperature (F)
- Page 14 P5RF Charging Charts (continued) P5RF-X48K Charging Chart - Cooling Remove refrigerant when above curve Add refrigerant when below curve Liquid Temperature (F)
-
Page 16: Installation Instructions
INSTALLER PLEASE LEAVE THESE INSTALLATION INSTRUCTIONS WITH THE HOMEOWNER. 709036A (Replaces 7090360) ¢709036*¤ Specifi cations and illustrations subject to change without notice and without incurring obligations. Printed in U.S.A. (06/09) 709036A O'Fallon, MO...
