Outdoor Heat Pump
User's Information/Installation Instructions
13 SEER R-410A High Effi ciency Split System
These units have been designed and tested for capacity and effi ciency in accordance with A.R.I.
Standards. Split System Heat Pump units are designed for use with a wide variety of fossil fuel
furnaces, electric furnaces, air handlers, and evaporator coil combinations.
These instructions are primarily intended to assist qualifi ed individuals experienced in the proper
installation of heating and/or air conditioning appliances. Some local codes require licensed instal-
lation/service personnel for this type of equipment. Read all instructions carefully before starting
the installation.
USER'S INFORMATION
Read this owner information to become familiar with the capabilities and use of your appliance.
Keep this with literature on other appliances where you have easy access to it in the future. If a
problem occurs, check the instructions and follow recommendations given. If these suggestions
don't eliminate your problem, call your servicing contractor.

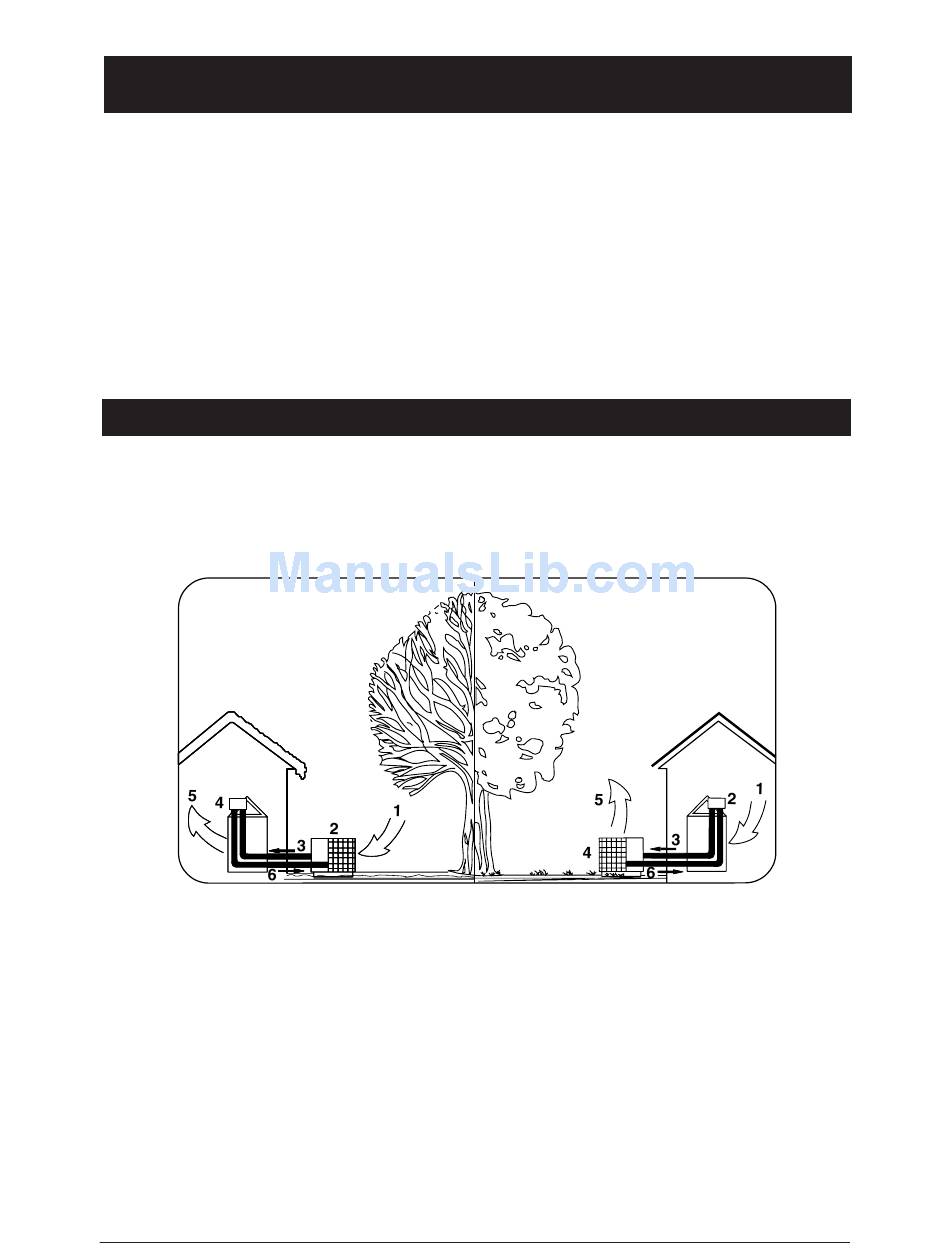

Heat Pump Principle of Operation

WINTER HEATING

1. Outdoor air enters heat pump.
2. Cold, heat-transfer section (outdoor coil)
extracts heat from outdoor air as refrigerant
evaporates from a liquid to a gas.
3. Refrigerant, compressed to a hot gas by
heat pump, carries the heat to the hot heat-
transfer section (indoor coil).
4. Hot, heat-transfer section (indoor coil)
releases the heat to indoor air as refrigerant
condenses from a gas to a liquid.
5. Air handler circulates the heat throughout
the home.
6. Refrigerant returns to outdoor coil and
evaporates once again to absorb more
heat.
IMPORTANT

SUMMER COOLING

1. Indoor air enters the air handler section.
2. Cold, heat-transfer section (indoor coil)
extracts heat from indoor air as refrigerant
evaporates from a liquid to a cold gas.
3. Refrigerant, drawn to heat pump and
compressed to a hot gas by heat pump,
carries the heat outdoors.
4. Hot, heat-transfer section (outdoor coil)
releases the heat as refrigerant condenses
from a gas to a liquid.
5. Heat pump (outdoor fan) discharges the
heat to outside air.
6. Refrigerant returns to indoor coil and
evaporates once again to absorb more
heat.

Advertisement

Table of Contents
loading

Related Manuals for Nordyne R-410A

Summary of Contents for Nordyne R-410A

  • Page 1 Outdoor Heat Pump User’s Information/Installation Instructions 13 SEER R-410A High Effi ciency Split System These units have been designed and tested for capacity and effi ciency in accordance with A.R.I. Standards. Split System Heat Pump units are designed for use with a wide variety of fossil fuel furnaces, electric furnaces, air handlers, and evaporator coil combinations.

  • Page 3: Operating Instructions

    OPERATING INSTRUCTIONS TO OPERATE YOUR HEAT PUMP FOR COOLING — 1. Set the thermostat system switch to COOL and the thermostat fan switch to AUTO. (See Figure 1) 2. Set the thermostat temperature to the desired temperature level using the tem- perature selector.
  • Page 4 of snow and ice on the heat transfer coil. This is normal, and the unit will periodically defrost itself. During the defrost cycle, the outdoor fan will stop, and the compressor will continue to run and heat the outdoor coil, causing the snow and ice to melt.

  • Page 5: General Information

    GENERAL INFORMATION Read the following instructions completely before performing the installation. CAUTION: This unit uses refrigerant R-410A. DO NOT under any circumstances use any other refrigerant besides R-410A in this unit. Use of another refrigerant will damage this unit. Outdoor Unit Section — Each outdoor unit...

  • Page 6: Electrical Connections

    CONNECTING REFRIGERANT TUBING BETWEEN THE INDOOR AND OUTDOOR UNIT CAUTION: This system utilizes R-410A refrigerant with POE oil. When servicing, cover or seal openings to minimize the exposure of the refrigerant system to air to prevent accumulation of moisture and other contaminants.
  • Page 7 Wiring Diagram/Schematic — A wiring diagram/schematic is located on the inside cover of the electrical box of the outdoor unit. The installer should become familiar with the wiring diagram/schematic before making any electrical connections to the outdoor unit. Outdoor Unit Connections — The outdoor unit requires both power and control circuit electrical connections.
  • Page 8 Green Brown Orange For 2-Stage Heater Kits Grey Air Handler Typical Heat Pump with Standard Air Handler Thermostat G R W 2 C E O Y NOTE: Jumper between W2 and E is required when no OD T-Stat is used. Heat Pump OD Section...
  • Page 9 A typical installation with a heat pump thermostat, air handler, and heat pump with an outdoor thermostat. Green White Grey Air Handler Typical Heat Pump with Outdoor Thermostat and Air Handler Thermostat G R W 2 C E O Y Heat Pump OD Section...
  • Page 10 Functional Checkout: CAUTION: If equipped with a compressor crankcase heater, wait 24 hours prior to performing a function checkout to allow for heating of the compressor crankcase. Failure to comply may result in damage and could cause premature failure of the system. Indoor Blower —...
  • Page 11 TRIP LED (Red): indicates there is a demand signal from the thermostat but no current to the compressor is detected by the module. The TRIP LED typically indicates the compressor protector is open or may indicate missing supply power to the compressor. The scroll compressor’s run (R), common (C) and start (S) wires are routed through the holes in the Comfort Alert...
  • Page 12 Status LED Status LED Description Green “POWER” Module has power Red “TRIP” Thermostat demand signal Y is present, but the compressor is not running Yellow “ALERT” Long Run Time Flash Code 1 Compressor is running extremely long run cycles Yellow “ALERT” System Pressure Trip Flash Code 2 Discharge or suction...
  • Page 13 Miswired Module Indication Green LED is not on, module does not power up Green LED intermittent, module powers up only when compressor runs TRIP LED is on but system and compressor check OK TRIP LED and ALERT LED flashing together ALERT Flash Code 3 (Compressor Short Cycling) displayed incorrectly...
  • Page 14 With compressor running in heat mode, fi rst jump the “T2”-”DFT” test pins. This will indicate to board that defrost T-stat is closed. Defrost T-stat closes at 32°, opens at 68°. Next jump the “Test” pin to “C” on terminal strip.
  • Page 24 INSTALLER: PLEASE LEAVE THESE INSTALLATION INSTRUCTIONS WITH THE HOMEOWNER. ¢708410p¤ 7084100 7084100 Specifi cations and illustrations subject to change without notice and without incurring obligations. Printed in U.S.A. (08/05)
