3
CONVENTIONAL OPERATION

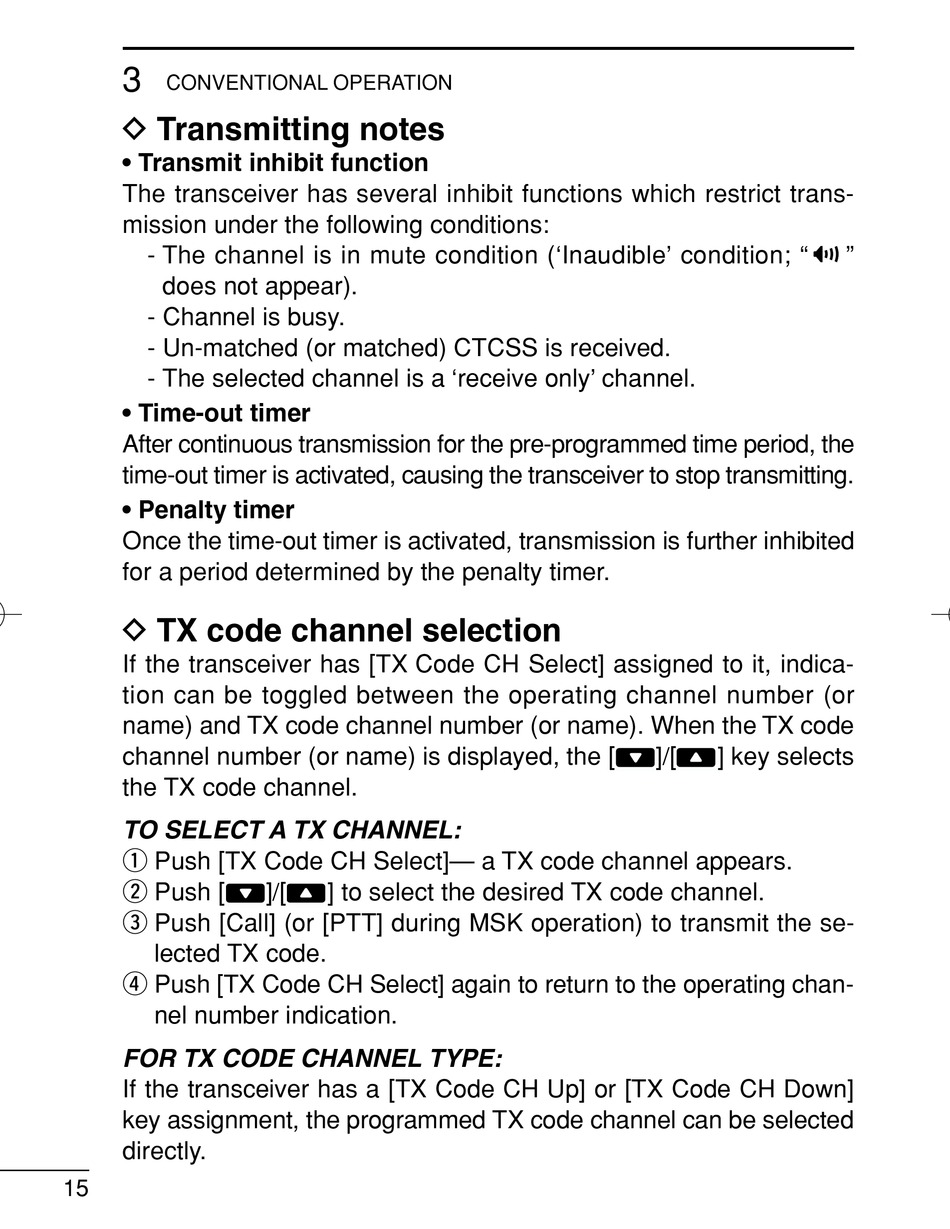

D Transmitting notes

• Transmit inhibit function
The transceiver has several inhibit functions which restrict trans-
mission under the following conditions:
- The channel is in mute condition ('Inaudible' condition; "
does not appear).
- Channel is busy.
- Un-matched (or matched) CTCSS is received.
- The selected channel is a 'receive only' channel.
• Time-out timer
After continuous transmission for the pre-programmed time period, the
time-out timer is activated, causing the transceiver to stop transmitting.
• Penalty timer
Once the time-out timer is activated, transmission is further inhibited
for a period determined by the penalty timer.

D TX code channel selection

If the transceiver has [TX Code CH Select] assigned to it, indica-
tion can be toggled between the operating channel number (or
name) and TX code channel number (or name). When the TX code
channel number (or name) is displayed, the [
the TX code channel.
TO SELECT A TX CHANNEL:
q Push [TX Code CH Select]— a TX code channel appears.
w Push [
e Push [Call] (or [PTT] during MSK operation) to transmit the se-
lected TX code.
r Push [TX Code CH Select] again to return to the operating chan-
nel number indication.
FOR TX CODE CHANNEL TYPE:
If the transceiver has a [TX Code CH Up] or [TX Code CH Down]
key assignment, the programmed TX code channel can be selected
directly.
15
]/[ ] to select the desired TX code channel.
]/[ ] key selects
"
