2

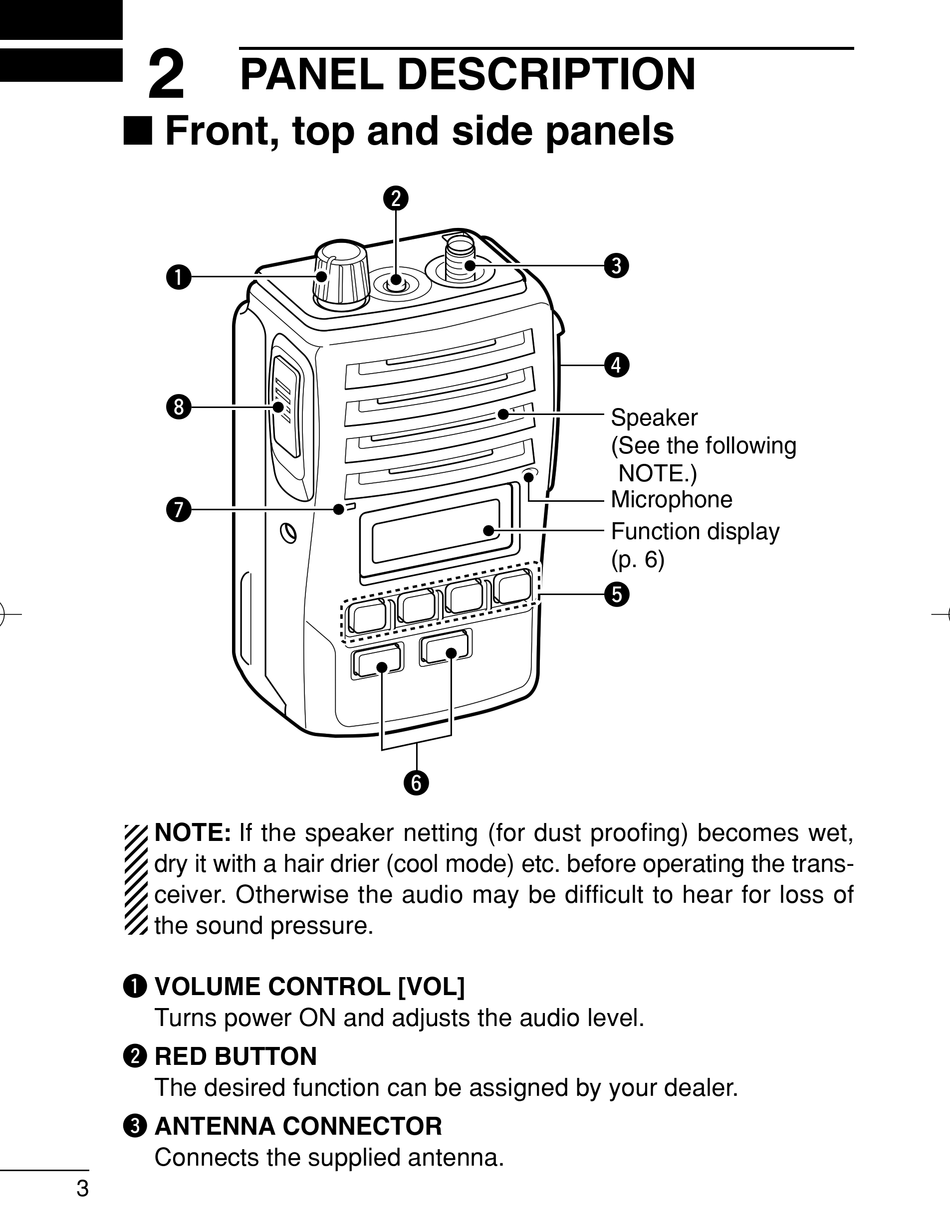

PANEL DESCRIPTION

I Front, top and side panels
q
i
u
NOTE: If the speaker netting (for dust proofing) becomes wet,
dry it with a hair drier (cool mode) etc. before operating the trans-
ceiver. Otherwise the audio may be difficult to hear for loss of
the sound pressure.
q VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
w RED BUTTON
The desired function can be assigned by your dealer.
e ANTENNA CONNECTOR
Connects the supplied antenna.
3
w
y
e
r
Speaker
(See the following
NOTE.)
Microphone

Function display

(p. 6)
t
