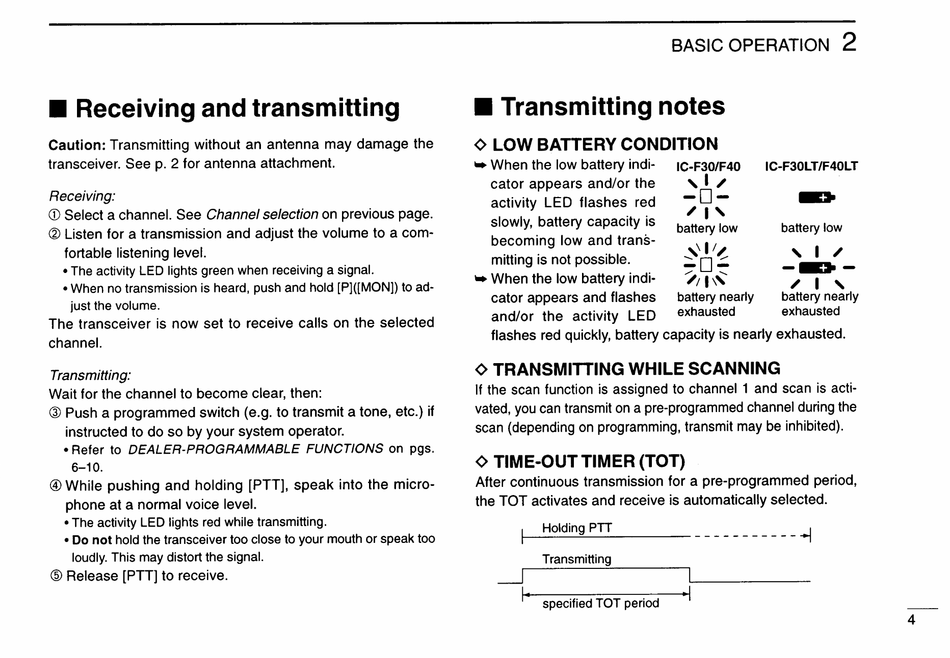

• Receiving and transmitting
Caution: Transmitting without an antenna may damage the
transceiver. See p. 2 for antenna attachment.
Receiving:
CD
Select a channel. See Channel selection on previous page.
(2)
Listen for a transmission and adjust the volume to a com-
fortable listening level.
• The activity LED lights green when receiving a signal.
• When no transmission is heard, push and hold [P]([MON]) to ad·
just the volume.
The transceiver is now set to receive calls on the selected
channel.
Transmitting:
Wait for the channel to become clear, then:
®
Push a programmed switch (e.g. to transmit a tone, etc.) if
instructed to do so by your system operator.
• Refer to DEALER-PROGRAMMABLE FUNCTIONS on pgs.
6-10.
@
While pushing and holding [PTT], speak into the micro-
phone at a normal voice level.
• The activity LED lights red while transmitting.
• Do not hold the transceiver too close to your mouth or speak too
loudly. This may distort the signal.
@
Release [PTT] to receive.
BASIC OPERATION
2
• Transmitting notes
¢
LOW BATTERY CONDITION
.. When the low battery indi-
IC-F30/F40 IC-F30LT/F40LT
cator appears and/or the ,
I
~
activity LED flashes red -
0 -
~
~I'
slowly, battery capacity is
battery low battery low
becoming low and trans-
,'I
/~
, I
~
mitting is not possible. :;.
0
~
-~-
.. When the low battery indi-
~/
I "
~
I ,
cator appears and flashes
battery nearly battery nearly
and/or the activity LED
exhausted exhausted
flashes red quickly, battery capacity is nearly exhausted.
¢
TRANSMITTING WHILE SCANNING
If the scan function is assigned to channel 1 and scan is acti-
vated, you can transmit on a pre..programmed channel during the
scan (depending on programming, transmit may be inhibited).
¢
TIME-OUT TIMER (TOT)
After continuous transmission for a pre-programmed period,
the TOT activates and receive is automatically selected.
t--_H_o_ld_in-=..g_P_TI
~
Transmitting
specified TOT period
