Ultra Start 1250 SERIES Install Manual

Manual transmission remote starters
Hide thumbs Also See for 1250 SERIES:

Advertisement

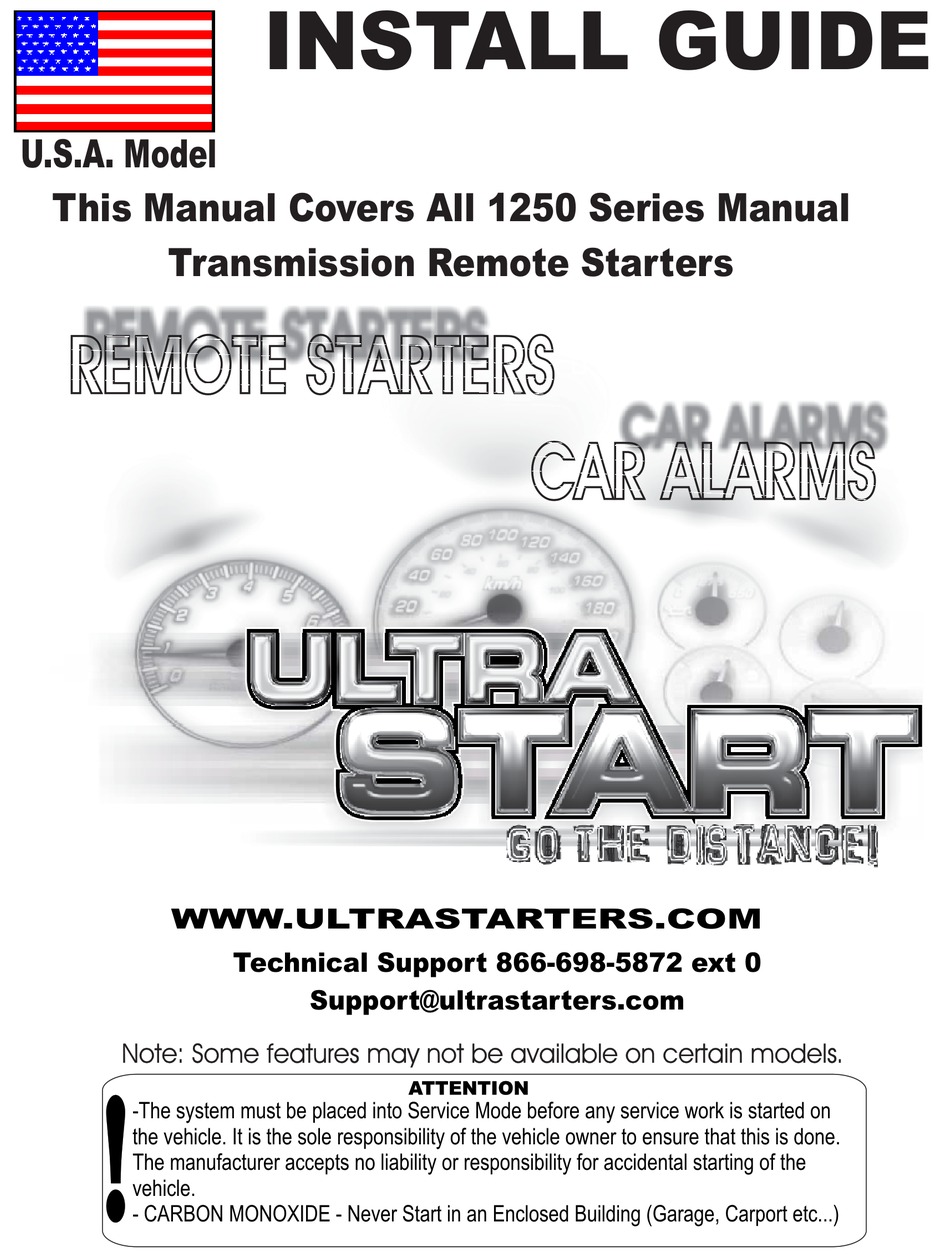

INSTALL GUIDE
U.S.A. Model
This Manual Covers All 1250 Series
Manual
Transmission
Remote Starters
REMOTE STARTERS
CAR ALARMS
ü
WWW.ULTRASTARTERS.COM
Technical Support 866-698-5872 ext 0
Support@ultrastarters.com
-The system must be placed into Service Mode before any service work is started on
the vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done.
The manufacturer accepts no liability or responsibility for accidental starting of the
vehicle.
- CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)

Advertisement

Table of Contents
loading

Summary of Contents for Ultra Start 1250 SERIES

  • Page 1 INSTALL GUIDE U.S.A. Model This Manual Covers All 1250 Series Manual Transmission Remote Starters REMOTE STARTERS CAR ALARMS ü WWW.ULTRASTARTERS.COM Technical Support 866-698-5872 ext 0 Support@ultrastarters.com -The system must be placed into Service Mode before any service work is started on the vehicle.
  • Page 2: Park Lights

    Installation Guide Page 2 1250/M Wiring Diagram Page 3 Pre-Installation Page 4 Components Pre Installation Check Installation Procedures Wire Connectors Page 5 6 Pin Connector 14 Pin Connector 3 Pin Red Connector Jumper Positions Installation Page 6 Basic Installation - Quick start Plug-In The Module Auto Tach Learn Programming...
  • Page 3: Fcc/Id Notice

    Page 3 Installation Guide Starter Heater Power Power Jumper Selectable Ignition 1 **** These connection’s are only necessary for installation’s on manual transmission vehicles. Always install a “M” Series Remote Starter on manual transmission vehicles. Note: Do not use the center pin of this connector to power relay packs. Doing so will damage the output.
  • Page 4: Before Starting Installation

    Installation Guide Page 4 Components - Control module - Remote transmitter(s) - Antenna with built in Program Button and LED’s - 6 pin main harness with dual 30amp power inputs. - 14 pin harness - 3 pin keyless entry harness - Hood pin safety switch - Installation guide Recommended Pre-Installation Procedures...
  • Page 5 Page 5 Installation Guide 6 Pin Power Connector Yellow Starter 30amp output 12volts during crank only. Green Heater 30amp output 12volts in accessory off during start. 12 power 30amp input Constant 12volt power at ignition harness. 12 power 30amp input Constant 12volt power at ignition harness.
  • Page 6: Tach Learning

    Installation Guide Page 6 Step 1 - Connect All Of the Following Wires 6 Pin Power Connector Yellow Starter Output Connect To The Vehicles Starter Wire. Green Heater Output Connect To The Vehicles Accessory Wire. 12 power Input Connect To Constant 12 Volt Power Source- High Current. 12 power Input Connect To Constant 12 Volt Power Source- High Current.
  • Page 7: System Reset

    Page 7 Installation Guide Programming Overview Program mode allows you to adjust the settings and options of your system. Your system has been intelligently designed by installers with years of experience. The system’s default settings do not require any program changes in most cases. However, this system does incorporate a highly advanced programming system that includes 4 menus with numerous options and settings that can be easily adjusted for custom installations and applications.
  • Page 8 Installation Guide Page 8 PROGRAM MODE 1 - USER SETTINGS Setting 1- Ignition Auto Lock 1 Ignition Lock & Unlock Enabled 1 Flash Doors Lock / Unlock when the key is turned On/ Off 2 Ignition Lock Only 2 Flashes Doors Lock when ignition key is turned ON only Press the Program Button 1 time to select setting 1 (This will be confirmed by 1 LED flash) Press and hold the Program Button until you receive the appropriate # of park light flashes and/or horn honks.
  • Page 9 Page 9 Installation Guide PROGRAM MODE 3 - STARTER SETTINGS Setting 1- Special Door Lock/ Unlock Operations 1 Type 1 1 Flash Unlock before start. Lock pulse after start and shutdown 2 Type 2 2 Flashes Lock pulse only after remote starter shuts off 3* Normal Operation 3 Flashes No additional re-lock pulses...
  • Page 10 Installation Guide Page 10 PROGRAM MODE 4 - TACH SETTINGS Setting 1- Tach Selection (TL Models Only) 1* Tach Detection Mode 1 Honk/Chirp Must connect Tach Wire. (Violet/White on 14-pin connector) 2 Tachless Mode 2 Honks/Chirps No Tach connection required. (Do not connect the tach wire) Note: The system will automatically detect and learn the Tach/Tachless signal.
  • Page 11: Transmitter Programming

    Page 11 Installation Guide Transmitter Programming Step 1 - Within three seconds turn the ignition Key ON-OFF-ON-OFF-ON - Leaving Key ON Step 2 - Press and hold the Program Switch - Parking Lights will come ON **if park-lights do not come on at this point, turn key off for 5 seconds, the repeat step 1.
  • Page 12 Installation Guide Page 12 Use 30A SPDT Automotive Type Relays Starter Kill with Bypass Units (Transponder or Passlock) 1 - Cut the Starter Wire between the key and the start and Bypass Unit connect to Pins 87a & 30 of the relay. Ignition 2 - Connect the “Constant”...
