Using the LightLid 35 IV

NOTE: If your scanner configuration does not contain the LightLid 35 IV and you do not have

intention to use this device, please ignore this section.

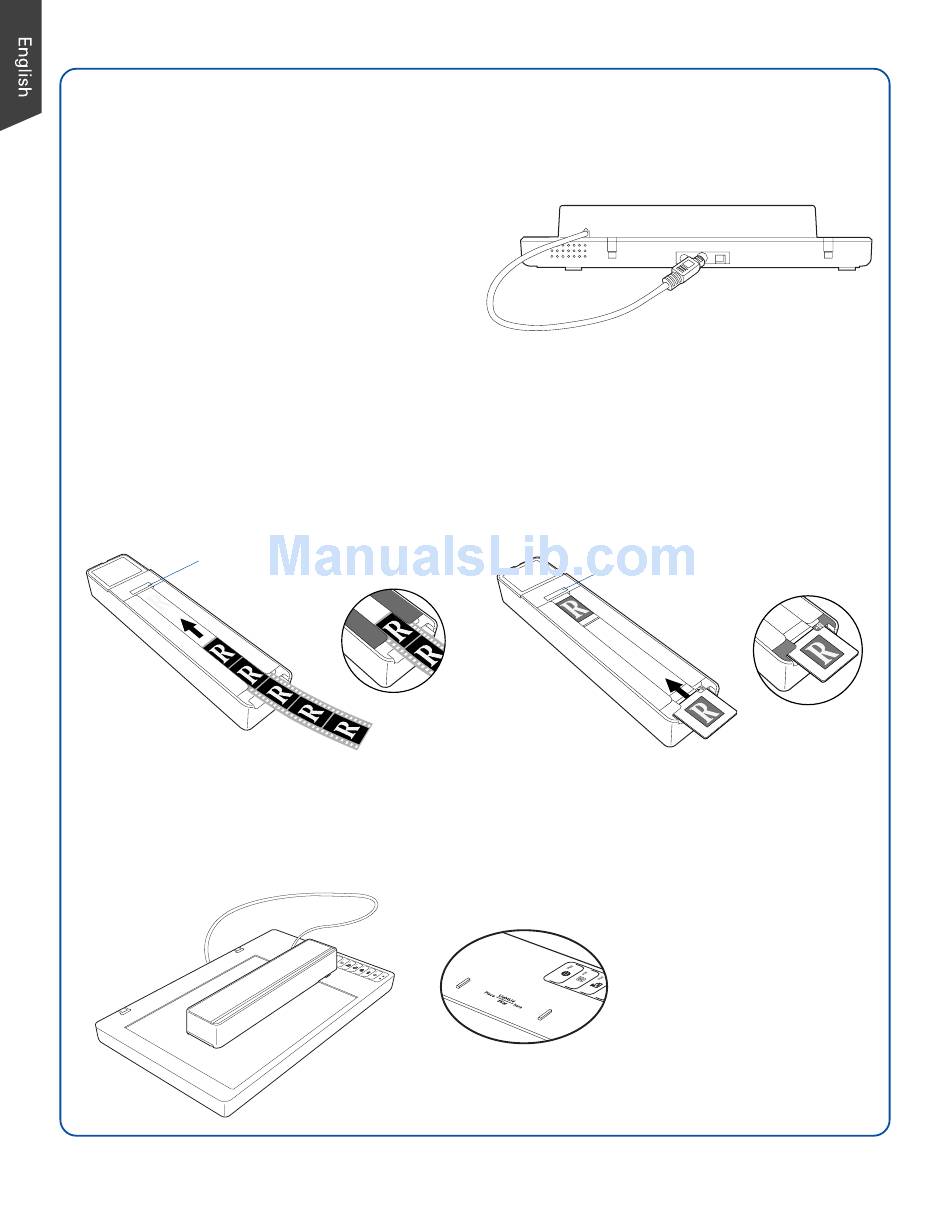

Connecting the LightLid 35 IV

1. Remove the scanner lid.

2. Ensure that the scanner is powered off;

then plug the connector of the LightLid

into the scanner's 9-pin accessory port.

To load film

A. To load filmstrips:

Turn the LightLid 35 IV over. Load the

filmstrip inside the upper slot of the

LightLid, with the film's shiny base

facing up.

Do not block

calibration window

To place the LightLid 35 IV

Place the LightLid 35 IV with the loaded film vertically on the scan bed. The LightLid

should be flush against the top ruler of the bed, with the slot running down the center.

B. To load slides:

Turn the LightLid 35 IV over. Load the

slide inside the lower slot of the LightLid,

with the slide facing up.

Do not block

calibration window

Align the top of the LightLid with

the recessed area, as label "Place

LightLid 35 IV Here".
