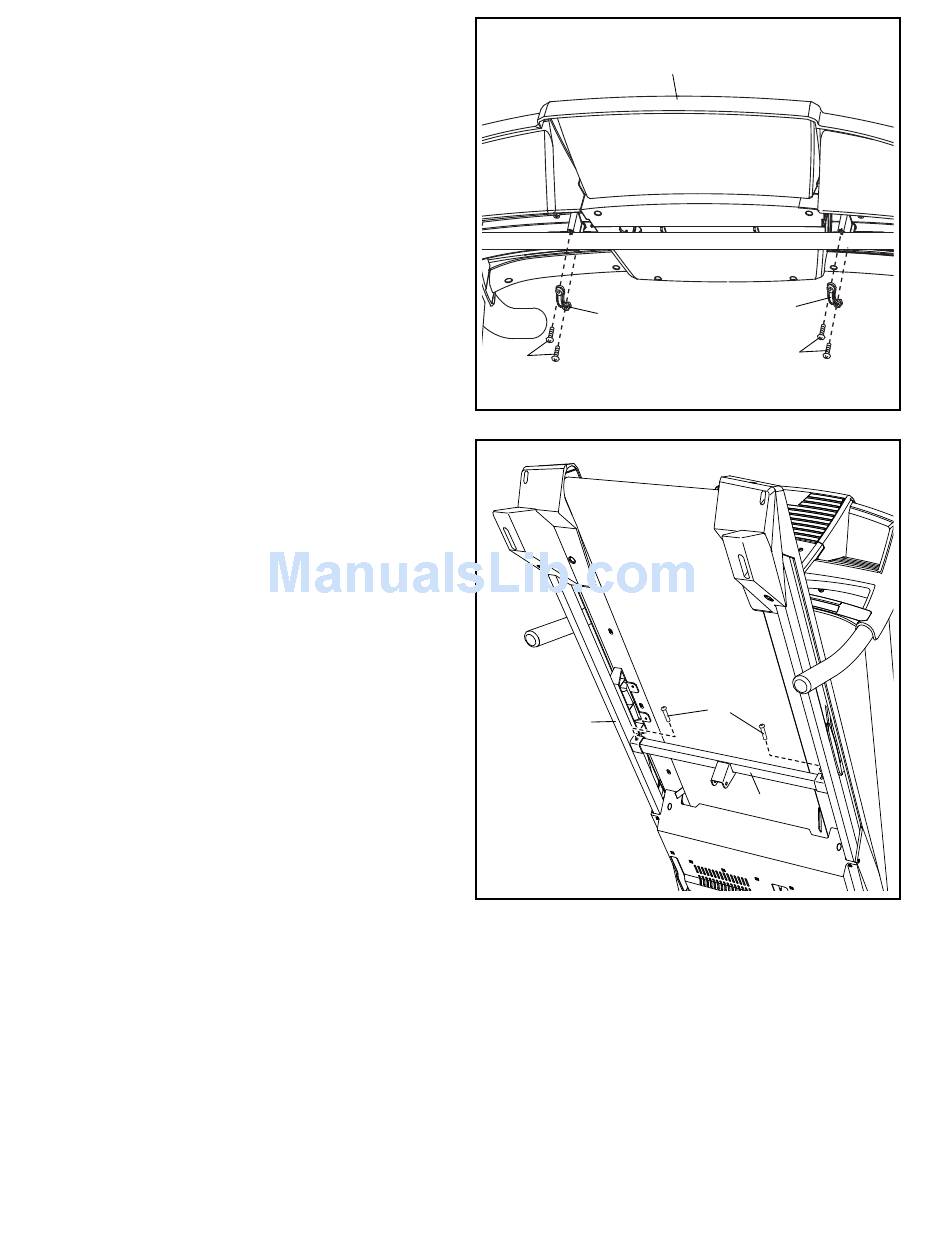

11. Attach the two Console Clamps (83) to the con-
sole assembly with four #8 x 1" Screws (7).
12. Raise the Frame (38) to the position shown.
Have a second person hold the Frame during
the next two assembly steps.
Attach the Latch Crossbar (44) to the Frame (38)
with two 1/4" x 1 3/4" Screws (22).
11
Console
Assembly
83
7
12
38
12
83
7
22
44
