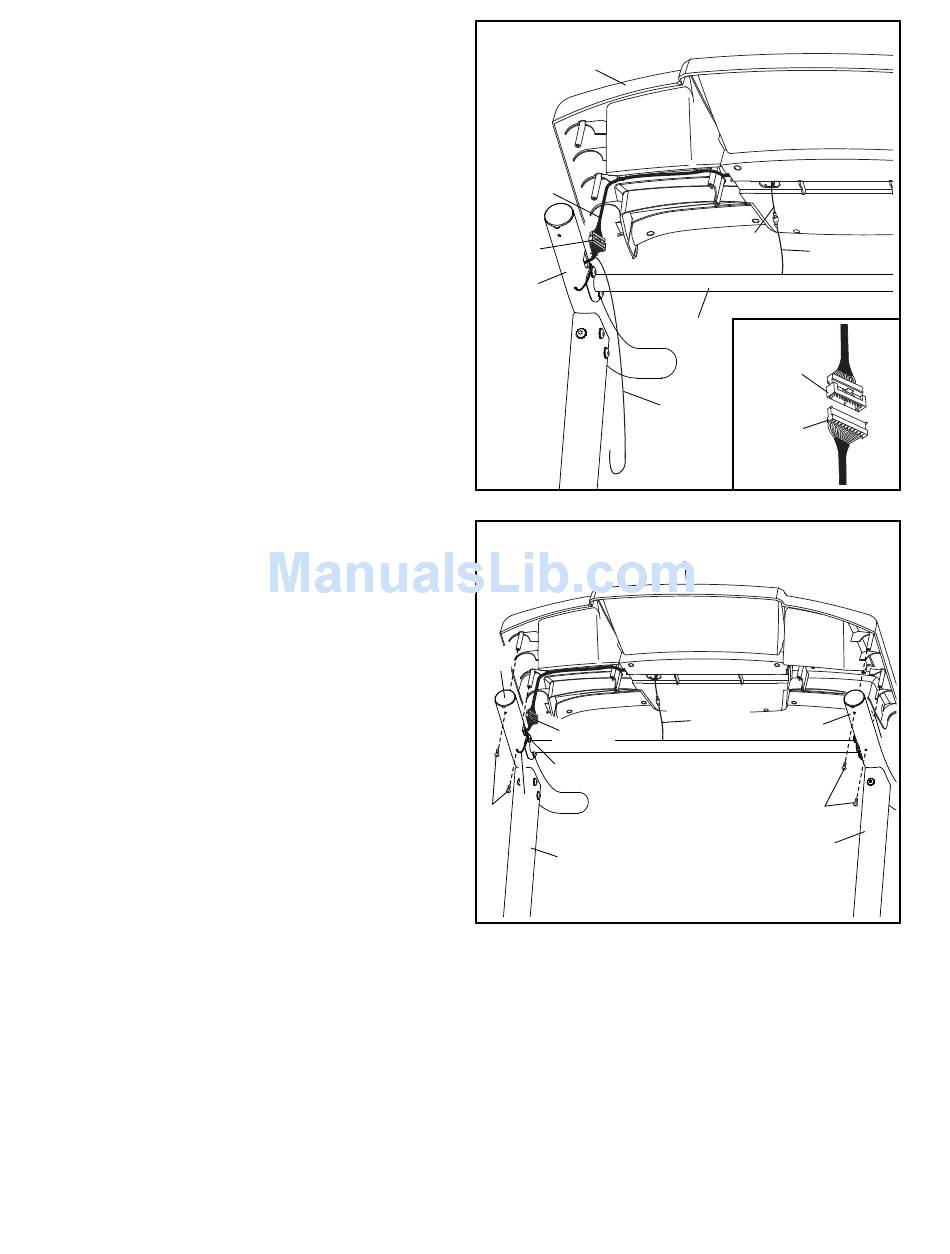

9. With the help of a second person, hold the con-
sole assembly near the Right Handrail (64).
See the inset drawing. Connect the Upright
Wire (63) to the console wire. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Connect the Console Ground Wire (47) on the
Console Crossbar (61) to the ground wire on the
console.
10. Set the console assembly on the Left and Right
Handrails (59, 64). Make sure that no wires
are pinched. Cut and remove the tie (D).
Attach the console assembly with four #8 x 3/4"
Screws (4). Start all four Screws, and then
tighten them. Do not overtighten the Screws.
Insert the wires into the Right Handrail (64)
through the indicated hole.
See assembly step 5. Firmly tighten the six
3/8" x 3 1/4" Screws (2) on the lower ends of the
Left and Right Uprights (66, 76) (only one side is
shown).
9
Console
Assembly
Console
Wire
63
64
10
Console Assembly
64
Wires
Hole
D
4
76
11
Ground
47
Wire
61
Console
Wire
Wire
Tie
63
Ground
Wires
59
4
66
