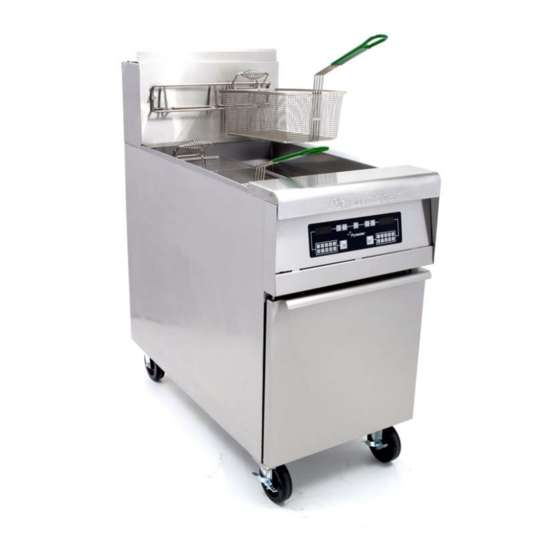

Frymaster FMCFE Service & Parts Manual

Master jet cf series atmospheric gas fryers
Hide thumbs Also See for FMCFE:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual
Series MJCF, MJCFE, MJCFEC, FMCFE,
FMCFEC, JCFX, KJ3FC, J3F & J65X.
NON-CE &
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
24-Hour Service Hotline 1-800-551-8633
APRIL 2005
*8195186*
www.frymaster.com
PRINTED IN THE USA
Email:
service@frymaster.com

Advertisement

Table of Contents
loading

Related Manuals for Frymaster FMCFE

Summary of Contents for Frymaster FMCFE

  • Page 1 Series MJCF, MJCFE, MJCFEC, FMCFE, FMCFEC, JCFX, KJ3FC, J3F & J65X. NON-CE & Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. 24-Hour Service Hotline 1-800-551-8633 APRIL 2005 *8195186* www.frymaster.com PRINTED IN THE USA Email: service@frymaster.com...
  • Page 2 If a flexible gas line is used, an additional restraining cable must be connected at all The front ledge of the fryer is not a step. Do not stand on the fryer. Serious injury can result Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any No structural material on the fryer should be altered or removed to accommodate placement of the fryer under a hood.
  • Page 3 Additional information can be obtained in the filtration Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal the joint between the frypot. Banging fry baskets on the strip to dislodge shortening will distort the strip, adversely affecting its fit.

  • Page 4: Table Of Contents

    Accessing Fryers for Servicing Cleaning Burner Manifold Gas Pressure Adjusting Pilot Flame Cleaning Gas Valve Vent Tube Adjusting Burner Ceramic Target Spacing and Alignment Calibrating Thermostat Control Replacing Fryer Components 1.8.1 Replacing Computer 1.8.2 Replacing Operating Thermostat 1.8.3 Replacing Temperature Probe 1.8.4...
  • Page 5 Filter Magic II Wiring Diagram PARTS LIST Accessories Burner Manifold Components Cabinetry Components 2.3.1 Fryer Cabinetry 2.3.2 Filter Magic II and Spreader Cabinet Cabinetry Casters, Legs and Associated Hardware Component Shield, Filter Box Assemblies and Components 2.5.1 Component Shield Assemblies – No Interface Board 2.5.2...

  • Page 6: Service Procedures

    The pilot flame must be manually lit (either with a match or with an optional built-in piezo ignitor) when the fryer is first placed into operation. Inches Millimeters Natural 0.055...
  • Page 7 MJCFE Series with Melt-Cycle option: When the melt cycle switch is placed in the ON position, the fryer stays in the melt cycle mode until the switch is manually placed in the OFF position, even if the frypot is at setpoint temperature.
  • Page 8 When new, the Fenwal controlling thermostat is sensitive to one-degree changes in temperature. Fenwal thermostats are used in a number of Frymaster products. The thermostat for the MJCF Series is 4 inches long. Do not use 3-inch Fenwal thermostats in MJCF...

  • Page 9: Accessing Fryers For Servicing

    All MJCF Series Atmospheric gas fryers are equipped with a high-limit thermostat. In the event that the fryer fails to properly control the oil temperature, the high-limit thermostat prevents the fryer from overheating to the flash point. The high-limit thermostat acts as a normally closed power switch that opens when exposed to temperatures in the range of 415°F to 435°F (213°C to 224°C).
  • Page 10 2. Remove the pressure tap plug from the end of the manifold (see illustration below) and connect a gas pressure-measuring device to the port. 3. Place the gas valve in the ON position then place the fryer power switch in the ON position (where applicable). When the burner lights and continues to burn, compare the pressure reading to that for the corresponding gas in the tables below and on the next page.

  • Page 11: Adjusting Pilot Flame

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.3 Checking Burner Manifold Gas Pressure (cont.) Non-CE Standard for Incoming Gas Pressures Minimum 6" W.C. Natural 1.49 kPa 14.93 mbar 11" W.C. 2.74 kPa 27.37 mbar 4. If the measured manifold gas pressure does not match the appropriate pressure in the preceding tables, remove the cap from the gas valve regulator and adjust to the correct pressure.

  • Page 12: Cleaning Gas Valve Vent Tube

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.5 Cleaning Gas Valve Vent Tube 1. Carefully unscrew the vent tube from the gas valve. NOTE: The vent tube may be straightened for ease in removal. 2. Pass a piece of ordinary binding wire (.052 inch diameter) or equivalent through the tube to remove any obstruction.

  • Page 13: Calibrating Thermostat Control

    (Turning the shaft counterclockwise causes the temperature to increase and the burner to light; turning it clockwise causes the temperature to decrease and shut off.) 7. Allow the fryer to sit for a few minutes and then slowly turn the flexible shaft counterclockwise until the burner lights.

  • Page 14: Replacing Fryer Components

    CHAPTER 1: SERVICE PROCEDURES 1.7 Calibrating Thermostat Control (cont.) 13. Close the fryer control panel and replace the screws in the upper corners. 14. Reinstall the thermostat knob with its pointer aligned with the 325°F (163°C) index mark on the temperature dial.

  • Page 15: Replacing Operating Thermostat

    The control panel is hinged at the bottom and will swing open from the top. 3. Disconnect the 9-pin connector and remove the control panel from the fryer by disengaging its tabs from the hinge slots in the mounting frame.

  • Page 16: Replacing Temperature Probe

    4. Unplug the wiring harness from the back of the controller and disconnect the grounding wire (see Section 1.8.1, Step 4). 5. Remove the controller from the fryer by lifting it from the hinge slots in the control panel frame. 5. Remove the two screws from the base of the interface board mounting-bracket.

  • Page 17: Replacing High-Limit Thermostat - Computer Controls

    4. Unplug the wiring harness and disconnect the grounding wire from the controller. 5. Remove the controller from the fryer by lifting it from the hinge slots in the fryer control panel frame.

  • Page 18: Replacing Heat Mode Indicator Light - Operating Thermostat Controls

    The control panel is hinged at the bottom and will swing open from the top. 3. Disconnect the 9-pin connector and remove the control panel from the fryer by disengaging its tabs from the hinge slots in the mounting frame.

  • Page 19: Replacing Melt Cycle Timer - Operating Thermostat Controls

    The mechanical melt cycle timer is no longer available. mechanical unit. To replace the mechanical melt-cycle timer: 1. Remove all electrical power from the fryer. Unplug fryer and ensure all power switches are off. 2. Access timer by removing the control panel.

  • Page 20: Replacing Burner Ceramic Targets

    8. Remove the burner hanger screws and lower the front of the main burner. Pull it forward to clear the rear burner hanger, and then lower the burner to the floor. 9. Raise the front of the fryer enough to slide the burner from under the fryer cabinet. DANGER...
  • Page 21 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.9 Replacing Burner Ceramic Targets (cont.) 10. To replace only the ceramic targets, straighten the target locking tabs with a pair of needle nose pliers or a screwdriver, and slide the target up and off the bracket. Slide the replacement target onto the bracket and bend the locking tabs inward towards the burner target.

  • Page 22: Replacing Gas Valve

    1.8.10 Replacing Gas Valve Drain the frypot or remove the handle from the drain valve before proceeding further. 1. Disconnect fryer from electrical and gas supplies 2. Disconnect the wires from the gas valve terminal block, marking each wire to facilitate reconnections.

  • Page 23: Replacing Frypot

    3. Disconnect the fryer from gas and electrical supplies. 4. Remove the screws from the top-cap above the control panel and lift it up and off the fryer(s). 5. If the fryer is equipped with other than a thermostat control, skip to Step 10.
  • Page 24 17. Remove the frypot hold-down bracket. 18. Remove the screws from the flue cap sides and back, and lift it clear of the fryer(s). 19. Remove the oil return line from the front of the frypot to be removed.

  • Page 25: Troubleshooting And Problem Isolation

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9 Troubleshooting and Problem Isolation Because it is not feasible to attempt to include in this manual every conceivable problem or trouble condition that might be encountered, this section is intended to provide technicians with a general knowledge of the broad problem categories associated with this equipment, and the probable causes of each.
  • Page 26 If gas and electrical power are being supplied to the fryer, the next most likely cause of ignition failure is a problem in the 24 VAC circuit of the pilot system. If the fryer is equipped with a Filter Magic II filtration system, first verify that the drain valve is fully closed. (The valve is attached to a microswitch that must be closed for power to reach the gas valve.

  • Page 27: Improper Burner Functioning

    If the fryer’s gas and air supplies are okay, the problem most likely is with one of the electrical components. Examine the computer for signs of melting/distortion and/or discoloration due to excessive heat buildup in the fryer.

  • Page 28: Improper Temperature Control

    Flames "rolling" out of the fryer are usually an indication of negative pressure in the kitchen. Air is being sucked out of the fryer enclosure and the flames are literally following the air. If negative pressure is not the cause, check for high burner manifold gas pressure in accordance with the procedures in Section 1.3.

  • Page 29: Computer Related Problems

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.3 Improper Temperature Control (cont.) MELT CYCLE PROBLEMS NOTE: In early 1999, PC board melt cycle timers replaced melt-cycle timer motors in new fryers. See Section 1.8.8 for retrofit information. In fryers equipped with thermostat controls, the melt cycle is controlled by a mechanical timer or a PC board.
  • Page 30 The Computer Magic III.5 performs the recovery test each day as the fryer warms up. An operator can view the results of the test any time the fryer is above the 325°F (163°C) point by pressing the button and entering the code 1652. The test results will be displayed in the computer’s LED panel in minutes and seconds.

  • Page 31: Filtration Problems

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.5 Filtration Problems The majority of filtration problems arise from operator error. One of the most common errors is placing the filter paper on the bottom of the filter pan rather than over the filter screen. Whenever the complaint is "the pump is running, but no oil is being filtered", check the installation of the filter paper, and the paper size.
  • Page 32 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.5 Filtration Problems (cont.) Incorrectly sized or installed paper will also allow food particles and sediment to pass through and clog the suction tube on the bottom of the filter carriage. Particles large enough to block the suction tube may indicate that the crumb tray is not installed in the pan during filtering.
  • Page 33 The high-limit thermostat acts as a safety switch. It will de-energize the gas valve when the oil in the fryer’s frypot climbs to 425°F to 450°F. An operating thermostat controls the main coil actuation and acts as the burner control.
  • Page 34 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Pilot Generator High-Limit Thermostat Thermostat Optional ON-OFF switch When troubleshooting millivolt systems, always check these areas before performing diagnostic checks on either the Robertshaw or Honeywell systems: A. Inspect all wires and component leads for damage (heat, oil, moisture, etc.). On capillary tube-type thermostats, check for resistance on the thermostat lead wires.
  • Page 35 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES ROBERTSHAW-UNITROL 7000 SYSTEM CHECK 1. Complete System Check With thermostat contacts closed and gas cock dial in the “ON” position, the main burner should ignite. Measure the reading between the 2 &...

  • Page 36: Troubleshooting Guides

    F. Thermostat or gas valve is suspect. A. One or more burner orifices clogged. A. Turn gas valve knob to OFF position. B. Blocked flue outlet. C. Fryer flue connected directly to vent Burner partially ignites. hood with a chimney-like duct.
  • Page 37 A. Flue obstructed. Flames rolling out of B. Inadequate make-up air in cooking fryer. area. A. Loose, dirty or corroded high-limit Pilot ignites, but fails to wires. remain lit after gas B.

  • Page 38: Initial Troubleshooting, 24Vac Frying Systems

    (cooking oil/shortening temperature is at least 15°F below thermostat setting). D. Gas valve is suspect. A. Pilot does not stay lit (fryer is on and thermopile output is approximately 400 millivolts. B. Pilot does not stay lit (fryer is on and thermopile output is not approximately 400 millivolts.

  • Page 39: Probe Resistance Chart

    1164 1309 1174 1320 1185 1330 1195 1340 PROBABLE CAUSE A. Inspect gas supply to fryer. Repair B. Allow unit to cycle on and off for C. Replace missing target(s) and/or A. Calibrate thermostat. Replace OHMS 1350 1361 1371 1381...

  • Page 40: Wiring Diagrams

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.12 Wiring Diagrams 1.12.1 MJCF Millivolt Wiring Diagram, Non-CE PILOT GENERATOR A D J P I L O T P.S.I. H O N E Y W E L L P I L O T 1/2 P.S.I.

  • Page 41: Mjcf Millivolt Wiring Diagram, Ce

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.12.2 MJCF Millivolt Wiring Diagram, CE HIGH-LIMIT THERMOSTAT PILOT GENERATOR (THERMOCOUPLE) MAIN VALVE/COIL GENERATOR (THERMOPILE) FENWALL OPERATING THERMOSTAT 8050531A 1-36...

  • Page 42: Mjcfe 24V Wiring Diagram

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.12.3 MJCFE 24V Wiring Diagram VALVE HONEYWELL 1-37...

  • Page 43: Mjcfec 24V Wiring Diagram

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.12.4 MJCFEC 24V Wiring Diagram FRYER NEXT FILTER FRYER NEXT FILTER 1-38...

  • Page 44: Fast-Ready Constant Pilot

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.12.5 FAST-Ready Constant Pilot 1-39...

  • Page 45: Filter Magic Ii Wiring Diagram

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.12.6 Filter Magic II Wiring Diagram INSET A-A INSET B-B REPEAT SAME CIRCUIT ON NEXT FRYER IF NEEDED SEE INSET A-A FOR 50-2 FILTER PUMP MOTOR ON/OFF SWITCH 1 ST. FRYER - RIGHT OF FILTER...

  • Page 46: Parts List

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 2: PARTS LIST 2.1 Accessories...
  • Page 47 803-0197 803-0209 823-3660 * Not illustrated. In Fall 2004 Frymaster introduced the Euro-Look fryer. This fryer has a rounded topcap instead of the traditional 90º angle topcap. Also round drains replaced square drains. CHAPTER 2: PARTS LIST COMPONENT Gas Line, Dormont, With Quick-Disconnect 1"...

  • Page 48: Burner Manifold Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.2 Burner Manifold Components STANDARD EURO-LOOK ITEM PART # PART # 806-0225SP 806-3605SP 910-0226 814-0034 910-1465 810-0424 806-1980SP 806-1981SP 230-1177 230-1180 826-1155 807-1906 810-1001 823-0289 826-1386 812-0910 812-0906 810-0407 812-0916 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT Deflector Assembly (Ceramic Target Assembly), Side...
  • Page 49 Millivolt Only- Natural Gas (Honeywell) Millivolt Only- Propane Gas (Honeywell) Capacitor (Used on Gas Valve Terminals w/Thermostat Cont. Only) Valve, Gas Supply Turn-off (Inside Fryer Cabinet) Miscellaneous Components – Older Production Units Regulator, Natural Gas (Robertshaw) Regulator, Propane Gas (Robertshaw)

  • Page 50: Cabinetry Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.3 Cabinetry Components 2.3.1 Fryer Cabinetry STANDARD EURO-LOOK ITEM PART # PART # 201-0486SP 201-6964 211-0486SP 201-8444 202-0486SP 202-6964 212-0486SP 212-8444 900-0889 910-0889 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT Side, Left- FMCF Unitary Cabinet- CRS...
  • Page 51 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.3.1 Fryer Cabinetry (cont.) STANDARD EURO-LOOK ITEM PART # PART # 900-7367SP 201-6916 202-6916 910-7367SP 211-8427 212-8427 900-4401 200-6758 900-4428SP 900-1714 930-0411 900-5541 200-6742 900-9316 200-6732 910-9316SP 210-6732 816-0128 816-0127 900-4419 823-2150 823-4710...

  • Page 52: Filter Magic Ii And Spreader Cabinet Cabinetry

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS CHAPTER 2: PARTS LIST 2.3.2 Filter Magic II & Spreader Cabinet Cabinetry...
  • Page 53 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.3.2 Filter Magic & Spreader Cabinet Cabinetry (cont.) STANDARD EURO-LOOK ITEM PART # PART # 201-0486SP 201-6964 211-0486SP 211-8444 202-0486SP 202-6964 212-0486SP 212-8444 900-7277 900-4428SP 900-4401 200-6758 900-2877SP 106-0414SP 810-0007 910-1832 910-2620 900-9330SP 200-8522 210-8522 824-0253...

  • Page 54: Casters, Legs And Associated Hardware

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.4 Casters, Legs and Associated Hardware STANDARD EURO-LOOK ITEM PART # PART # 810-0356 810-0357 810-0378 810-0750 810-1551 806-5043 810-1205 806-3811 826-1095 826-0900 826-1113 826-1043 826-1716 826-1717 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT Caster, Swivel, 5", w/o Brake Caster, Swivel, 5", w/Brake...

  • Page 55: Component Shield, Filter Box Assemblies And Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.5 Component Shield, Filter Box Assemblies and Components 2.5.1 Component Shield Assemblies – No Interface Board Timer and Bracket Assembly is omitted on 806-4774SP and 806-4776SP Component Shield Assemblies without Interface Boards STANDARD EURO-LOOK ITEM PART #...

  • Page 56: Component Shield Assemblies - With Interface Board

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.5.1 Component Shield Assemblies – No Interface Board (cont.) STANDARD EURO-LOOK ITEM PART # PART # 826-1546 806-9622 900-8741 806-9613 809-0580 807-0800 807-0680 826-1374 809-0097 807-0670 826-1358 * Not illustrated. 2.5.2 Component Shield Assemblies – With Interface Board Component Shield Assemblies with Interface Boards CHAPTER 2: PARTS LIST COMPONENT...

  • Page 57: Filter Box Assemblies

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.5.2 Component Shield Assemblies – With Interface Board (cont.) STANDARD EURO-LOOK ITEM PART # PART # 806-4773SP 806-4775SP 807-0066 807-2469 810-2243 807-0160 806-3548 900-4340 809-0349 824-0161 807-0855 807-0979 807-0800 807-0680 * Not illustrated. 2.5.3 Filter Box Assemblies CE FILTER COMPONENT BOXES CHAPTER 2: PARTS LIST...

  • Page 58: Control Panel Assemblies And Related Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.5.3 Filter Box Assemblies (cont.) STANDARD EURO-LOOK ITEM PART # PART # 823-1584 823-1585 807-0124 807-0012 807-2434 806-4358 807-0276 810-1168 810-1164 807-0800 807-0680 807-1999 * Not illustrated. 2.6 Control Panel Assemblies and Related Components CHAPTER 2: PARTS LIST COMPONENT Box, Control- FMCF Filter...
  • Page 59 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.6 Control Panel Assemblies and Related Components (cont.) STANDARD EURO-LOOK ITEM PART # PART # 806-4992SP 106-4055 809-0448 806-0183 106-0771 806-9617 806-9708 809-0157 810-1000 810-2954 809-0050 826-1361 810-0624 810-2862 900-2071 900-2241 200-8536 810-0334 910-7287 210-8702 910-7280...

  • Page 60: Filtration System Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.6 Control Panel Assemblies and Related Components (cont.) STANDARD EURO-LOOK ITEM PART # PART # 806-2071 210-8702 106-3373 806-3660 806-4797 910-7315 * Not illustrated. 2.7 Filtration System Components 2.7.1.1 Filter Magic II Drain Manifold Components To Drain Valve CHAPTER 2: PARTS LIST...
  • Page 61 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.1.1 Filter Magic Drain Manifold Components (cont.) STANDARD ITEM PART # ** 900-0757 Cover, Drain End, Square Drain- FMCF 816-0032 Gasket, Flange, Square Drain- FMCF 823-0717 Tube, Square Drain- 2-½ x 15.38"- FMCF 826-0715SP Drain Tube Kit 823-0719...

  • Page 62: Euro-Look Drain Manifold Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.1.2 Euro-Look Drain Manifold Components See page 2-27 for Euro-Look Drain Valve Assemblies. EURO-LOOK ITEM PART # ** 823-4764 Drain Tube, Left End Open /Right End Closed, Short 823-4763 Drain Tube, Left and Right Ends Open, Short 823-5031 Drain Tube, Left End Open /Right End Closed, Long 823-5030...

  • Page 63: Filter Magic Ii Filter Pan Components - Outer Pan Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.2 Filter Magic II Filter Pan Components – Outer Pan Components STANDARD EURO-LOOK ITEM PART # PART # 806-6095SP 806-4470SP 806-4373 810-0006 810-0005 809-0189 826-1362 823-1421 823-1452SP 910-1350 826-1371 809-0053 809-0184 826-1337 809-0185 807-1367 * Not illustrated.

  • Page 64: Filter Magic Ii Filter Pan Components - Inner Pan Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.2 Filter Magic II Filter Pan Components – Outer Pan Components (cont.) STANDARD EURO-LOOK ITEM PART # PART # 824-0292 809-0020 807-1270 810-0695 806-4694SP 826-1389 826-1372 809-0291 816-0126 810-0694 810-0696 810-0693 900-1521 * Not illustrated. 2.7.3 Filter Magic Filter Pan Components –...
  • Page 65 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.3 Filter Magic Filter Pan Components – Inner Pan Components (cont.) STANDARD EURO-LOOK ITEM PART # PART # 806-6095SP 823-1745SP 806-4866SP 816-0117 809-0045 910-1366 810-0180 823-2010 810-1409 803-0171 803-0002 824-0417 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT FMCF Complete Filter Pan Assembly –...

  • Page 66: Oil Return Handle Components - Units Built Prior To April 2001

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.4 Oil Return Handle Components – Units Built Prior To April 2001 STANDARD EURO-LOOK ITEM PART # PART # 807-2103 930-0839 810-1999 900-1853 814-0047 900-0239 920-0220 809-0200 826-1381 810-0220 809-0142 809-0056 809-0104 809-0247 826-1359 826-1366 CHAPTER 2: PARTS LIST...

  • Page 67: Oil Return Handle Components -Units Built April 2001 And After

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.5 Oil Return Handle Components –Units Built April 2001 and After STANDARD EURO-LOOK ITEM PART # PART # 807-2103 200-0821 810-1999 200-0938 814-0047 900-0239 200-1059 809-0200 826-1381 810-0220 809-0142 809-0056 809-0104 809-0247 826-1359 826-1366 810-1165 809-0601...

  • Page 68: Oil Return Plumbing

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.6 Oil Return Plumbing FLEX LINE TO NEXT POT (WHERE APPLICABLE) OIL RETURN PLUMBING FILTER MAGIC II (TYPICAL) STANDARD EURO-LOOK ITEM PART # PART # 810-0278 900-2935 810-1043 810-1055 810-1057 806-9438SP 810-1369 810-1068 813-0087 813-0003 813-0362...

  • Page 69: Filter Pump And Motor Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.7 Filter Pump and Motor Components STANDARD EURO-LOOK ITEM PART # PART # 900-7026 810-0665 900-1472 816-0102 826-1392 823-1356 * Not illustrated. CHAPTER 2: PARTS LIST Base, Motor- Adjustable Nut, Leveling- Adjustable Motor Base Diverter, Oil (To Protect Contactor Block) Grommet, Oil Diverter O-ring, Filter Pan Connection (Qty: 5)
  • Page 70 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.7 Filter Pump and Motor Components (cont.) STANDARD EURO-LOOK ITEM PART # PART# 813-0062 813-0022 813-0165 809-0514 809-0194 826-1264 816-0093 826-1712 826-1270 826-1755 813-0093 813-0352 813-0003 807-0141 811-0199 807-1408 807-2348 807-2050 811-0746 811-0861 * Not illustrated.

  • Page 71: Drain Valves And Related Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.8.1 Drain Valves and Related Components STANDARD ITEM PART # ** 806-4145 Valve, Drain- 1-¼" (Includes Handle With Lock Pin) For non-filter fryers 810-1017 Valve, Drain- 1-¼" (Without Handle) 810-1427 Handle, Drain Valve, With Lock Pin 809-0540 Nut, Drain Valve (MJ &...

  • Page 72: Euro-Look Drain Valves And Related Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.8.2 Euro-Look Drain Valves and Related Components-Round Drains EURO-LOOK ITEM PART # ** 106-3760 Valve, Drain Assembly Full Vat 200-6496 Support, Drain 3” Tube 824-1602 Handle, Drain Valve FV 806-8137 Bracket, Switch, Drain, Assembly 807-2103 Switch, CE Micro Straight Lever 809-0237...

  • Page 73: Power Shower Components

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.7.9 Power Shower Components STANDARD EURO-LOOK ITEM PART # PART # 806-4529SP 809-0415 814-0001 826-1390 826-1344 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT Power Shower Assembly, Full Vat, Complete Screw, Cleanout Grip, Handle Seal (Gasket) (Qty: 5) O-Ring (Qty: 5) 2-28...

  • Page 74: Frypot, High-Limit And Probe Components

    Frypot, Bare- FMCF & MJCF Frypot, Complete (Include Combustion Chamber & Insulation) Frypot, Bare- MJCF (CE and Non-CE) Frypot, Complete MJCF (CE) Frypot, Complete MJCF (Non-CE) Frypot, Bare- FMCF Frypot, Complete FMCF Insulation Kit, Complete Fryer/Frypot 2-29 Use standard part.
  • Page 75 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.8 Frypot, High-Limit and Probe Components (cont.) STANDARD EURO-LOOK ITEM PART # PART # 813-0408 813-0156 813-0684 900-1090 823-5302 810-0647 809-0409 930-6401 806-0832 900-6412 823-0290 806-0833 806-0489 806-6978 930-6386 806-4206 210-0681 806-7550 812-1256SP 826-1177 806-9708 812-0211...

  • Page 76: Wiring Connectors, Pin Terminals And Power Cords

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS 2.9 Wiring Connectors, Pin Terminals and Power Cords ITEM PART # Power Cords 807-0154 806-6229SP 807-1685 Connectors 807-1068 807-0158 807-0156 807-0159 807-0875 807-1067 807-0157 807-0155 807-0160 807-0804 826-1341 826-1342 807-2518 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT 100/120V–15A w/grounded plug...

  • Page 77: Appendix

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS APPENDIX A.1 KJ3FC & J3F Variants – Wiring Diagrams A.1.1 Computer Wiring Diagram – KJ3FC Fast-Ready...

  • Page 78: J3F Wiring Diagram - (Fast/Fast-Computer Modified; For Reference Only

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS A.1.2 J3F Wiring Diagram – (Fast /Fast Computer Modified; For Reference Only) VIOLET APPENDIX BROWN YELLOW YELLOW VIOLET YELLOW ORANGE BLUE P.S.I. HONEYWELL...

  • Page 79: Kfc-1 Computer Wiring Diagram - 120V

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS APPENDIX A.1.3 KFC-1 Computer Wiring Diagram – 120V...

  • Page 80: Kfc-1 Computer Wiring Diagram - 220V

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS APPENDIX A.1.4 KFC-1 Computer Wiring Diagram – 220V...

  • Page 81: Kscf Wiring Diagram W/ Float (Ce

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS APPENDIX A.1.5 KSCF Wiring Diagram w/ Float (CE)

  • Page 82: Kfc-1 Harness Diagram

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS APPENDIX A.1.6 KFC-1 Harness Diagram...
  • Page 83 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS APPENDIX A.1.7 Transformer/Filter Box Wiring for FAST Computer...

  • Page 84: Parts List - Kj3Fc Variant

    MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS A.2 Parts List – KJ3FC Variant Parts specific to KJ3FC variants are listed here. All other parts can be found in Chapter 2. APPENDIX...
  • Page 85 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS A.2 KJ3FC Variant – Parts List (cont.) STANDARD EURO-LOOK ITEM PART # PART # 900-4340 900-1739 900-1635 807-0276 807-0800 807-0680 807-0855 807-0979 807-0067 824-0161 806-5517 806-3548 809-0096 809-0349 809-0250 806-1076SP 806-5320 809-0476 900-1749 813-0389 807-3520 910-7284...
  • Page 86 MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS A.2 KJ3FC Variant – Parts List (cont.) STANDARD EURO-LOOK ITEM PART # PART # 806-9325 809-0126 807-2103 816-0220 200-0513 826-1366 813-0406 813-0148 813-0407 813-0400 813-0070 813-0391 813-0395 * Not Illustrated APPENDIX COMPONENT Bracket, Support – Microswitch ¼-20 x 3/8"...
  • Page 87 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 88 Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-688-2200 FAX (Tech Support) 1-318-219-7135 SERVICE HOTLINE 819-5186 PRINTED IN THE UNITED STATES 1-800-551-8633 APRIL 2005...
