FireplaceXtrordinair 95800624 Installation Instructions

Rectangular face

Download this manual

Compatibility:

• 864TRV Fireplace

• 864ST Fireplace

• 864HO Fireplace

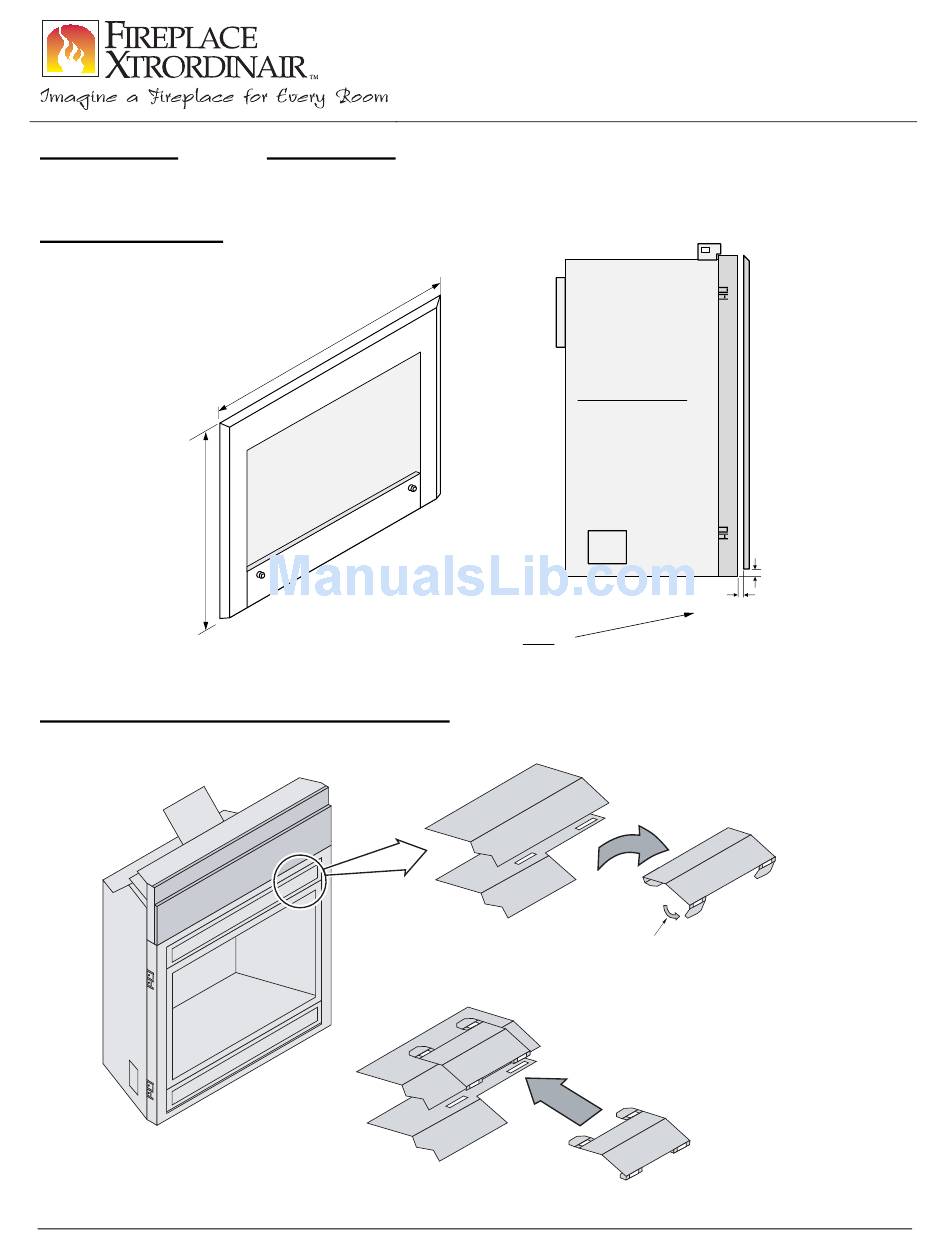

Installation Details

35-5/8"

Special Instructions for 864HO Fireplaces

This face requires the outer grill deflectors to be removed. See the instructions below.

Page 1 of 4

Packing List:

• Face

• Face Mounting Brackets (upper and lower sets)

• (2) Face Brackets (w screws)

40-7/8"

17601486 - 8/30/10

864TRV Rectangular Face

Black 95800623

Nickel 95800624

SIDE OF FIREPLACE

NOTE:

This face has an adjustable bracket that allows for

different facing depths to be tucked under the face.

Remove the outer deflector on both sides

(use needle-nose pliers if necessary).

These tabs bend down

to allow for removal.

Re-attach the deflectors to the top louver

for future use if using a different face or

grill. Bend the tabs as shown, making

sure the deflectors are secure and flat.

• (12) 8-32 Nuts

• (2) 10-24 1-1/2" Screws

5/16" TO 1"

Page 1 NOTE: This face has an adjustable bracket that allows for different facing depths to be tucked under the face. 17601486 - 8/30/10 Black 95800623 Nickel 95800624 • (12) 8-32 Nuts • (2) 10-24 1-1/2" Screws SIDE OF FIREPLACE 1” 5/16” TO 1”...
Page 2 Right Lower Lower Left Right 17601486 - 8/30/10 Black 95800623 Nickel 95800624 Remove and discard the nuts and bushings above and below the firebox. Discard the stock bushings and nuts. Upper Bracket Place the upper and lower brackets in place and secure using the nuts included with this kit.
Page 3 Raised Fireplaces Page 3 of 4 864TRV Rectangular Face Note how the tile is 1” (maximum) above the base of the fireplace. Floor-Level Fireplaces Maximum 1`” Hearth 17601486 - 8/30/10 Black 95800623 Nickel 95800624 © Travis Industries, Inc.
Page 4: Plated Surfaces
Use denatured alcohol and a soft cloth to clean plated surfaces. Marks left on the surface may damage the face. Page 4 of 4 864TRV Rectangular Face Black 95800623 Nickel 95800624 17601486 - 8/30/10 Attach the upper brackets to the face with the included nuts.
